TITAN 540 D - 2013-2019 - 13-7454-11 - Stiga Front Mower Motor Diagram

Name: TITAN 540 D - 2013-2019 - 13-7454-11 - Stiga Front Mower Motor Diagram
SKU: titan_540_d_13_7454_11_motor-group
Price: 4.19 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TITAN 540 D - 2013-2019 - 13-7454-11 - Stiga Front Mower Motor Diagram

Description

Stiga TITAN 540 D Parts Diagram

Product Name - TITAN 540 D

Model Year - 2013-2019

Model Type - T 701

Art.N - 13-7454-11

Engine Model - Yanmar 3TNV76

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1139-1753-01 Available to backorder	Brake Assy B section	£1,082.17 £901.81
1	MO1137-0961-01 Available to backorder	Hydraulic Motor	£3,927.58 £3,272.98
1	MO1139-1705-01 Available to backorder	Brake (Service Part) C . Inkl. pos 2-3	£622.43 £518.69
2	MO1139-1650-01 Available to backorder	Case Brake B section	£206.20 £171.83
3	MO1139-1577-01 Available to backorder	Washer B section	£5.04 £4.20

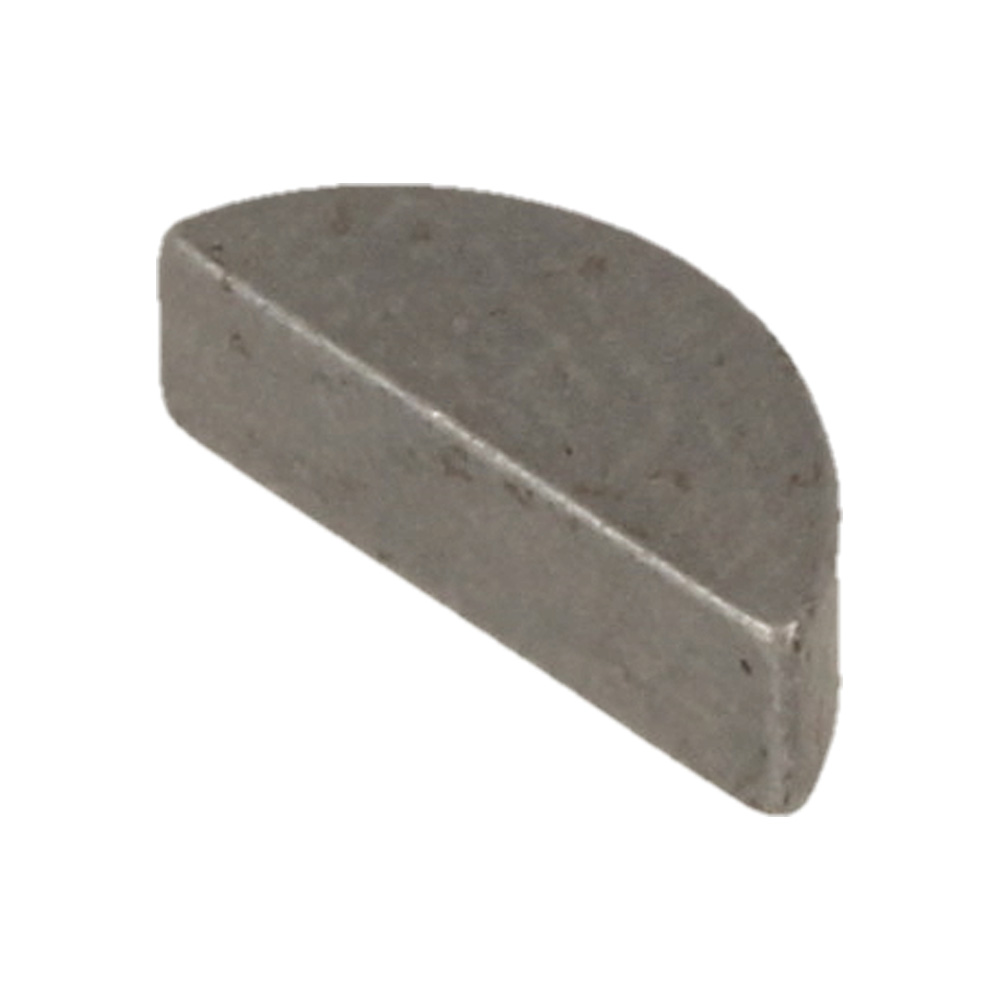

4	MO1139-1578-01 Available to backorder	Key B section	£6.31 £5.26

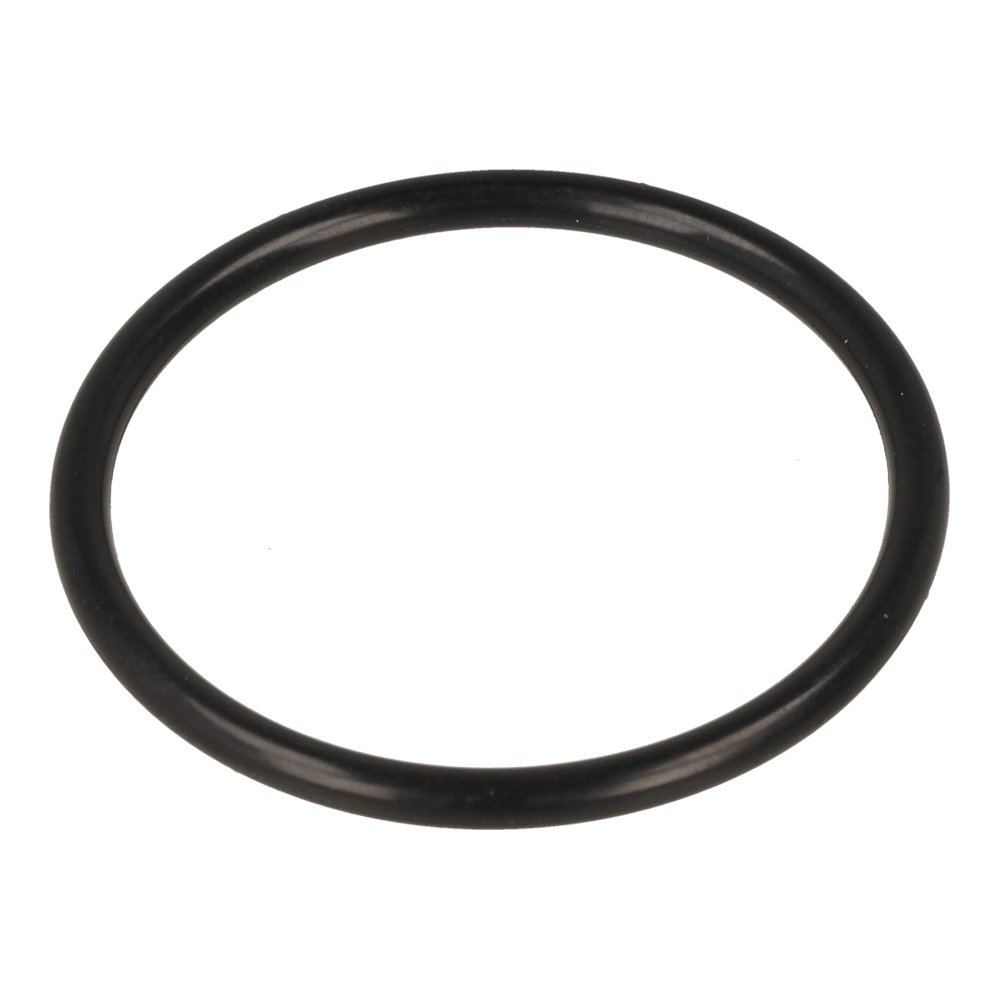

5	MO1139-1580-01 Available to backorder	Packing B section	£7.97 £6.64
6	MO1139-1698-01 Available to backorder	Packing B section	£29.71 £24.76
9	MO1139-1589-01 Available to backorder	Nut 8	£5.03 £4.19
