Toro TimeMaster TM76K 76cm - 21811 (406800000 - 409032219) Spindle and Belt

Name: Toro TimeMaster TM76K 76cm - 21811 (406800000 - 409032219) Spindle and Belt
SKU: timemaster_tm76k_76cm_21811_4684932219_spindlebelt-group
Price: 0.4 GBP
Availability: InStock

Part No. timemaster_tm76k_76cm_21811_4684932219_spindlebelt-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TimeMaster TM76K 76cm - 21811 (406800000 - 409032219) Spindle and Belt

Description

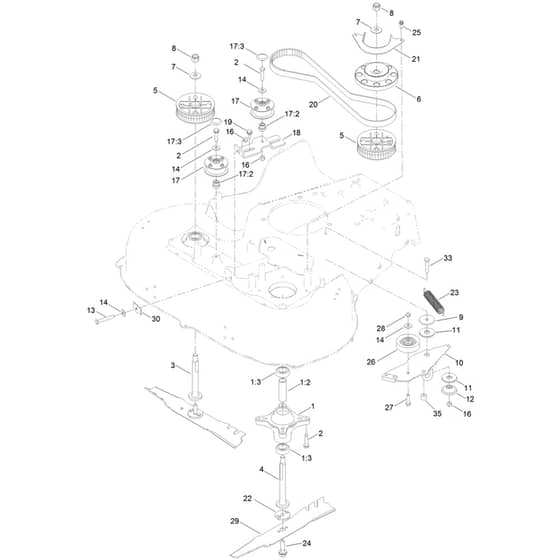

Toro TimeMaster TM76K 76cm - 21811 (406800000 - 409032219) Spindle and Belt Parts Diagram

	Part No.	Details
1	HA121-9107 Available to backorder	Spindle Assembly	£115.80 £96.50
1	HA120-7935 Available to backorder	[1.2] Spacer	£2.46 £2.05
1	HA136-5441 Available to backorder	[1.3] Ball Bearing	£9.14 £7.62
2	HA139-1731 Available to backorder	Hex Washer Head (Hwh) Roll Thd Screw	£0.97 £0.81
3	HA139-6612 Available to backorder	Spindle Shaft	£48.25 £40.21
4	HA139-6613 In stock	Spindle Shaft	£38.45 £32.04
5	HA121-9100 In stock	Sprocket	£64.31 £53.59
6	HA130-6664 Available to backorder	Spindle Brake Pulley	£56.92 £47.43
7	HA109-9505 In stock	Spring Washer	Was £5.56 £4.63 Special Price £2.39 £1.99
8	HA139-1725 In stock	Hex Nut	Was £1.13 £0.94 Special Price £0.60 £0.50
9	HA139-1726 Available to backorder	Rebound Washer	£3.31 £2.76
10	HA133-8102 In stock	Brake Arm Assembly	£60.25 £50.21
11	HA121-2305 In stock	Composite Friction Washer	£8.44 £7.03
12	HA161-8318 In stock	Spacer	£20.48 £17.07
13	HA139-1728 Available to backorder	Hex Head (Hh) Bolt	£1.60 £1.33
14	HA139-1723 In stock	Flat Washer	£0.64 £0.53
16	HA119-4038 In stock	Hex Nut	£0.56 £0.47
17	HA161-4815 In stock	Pulley Kit (Service)	£19.24 £16.03
17	HA131-4504 Available to backorder	[17.2] Loose Fit Bore Adapter	£6.04 £5.03
17	HA125-2533 In stock	[17.3] Cap Plug	£2.96 £2.47
18	HA145-4016 Available to backorder	Idler Bracket	£9.89 £8.24
19	HA139-1730 Available to backorder	Hex Head Flange (Hhf) Shoulder Screw	£3.34 £2.78
20	HA120-3335 In stock	Synchronous Belt	£59.94 £49.95
21	HA120-5245-03 Available to backorder	Spindle Belt Guide	£13.61 £11.34
22	HA120-5236 Available to backorder	Blade Adapter Or Mower Blade Adapter	£8.58 £7.15
23	HA163-7226 In stock	Brake Extension Spring	£20.48 £17.07
24	HA125-2466 In stock	Blade Bolt	£3.83 £3.19
25	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.56 £2.13
26	HA120-7082 In stock	Idler Pulley	£29.47 £24.56
27	HA120-9696 Available to backorder	Screw-Hh [5.16-18 X 1.250]	£0.54 £0.45
28	HA137-3089 Available to backorder	Hex Nut	£0.48 £0.40
29	HA116-6358-03 In stock	15.4 Inch Mower Blade	£23.96 £19.97
30	HA121-2336 Available to backorder	Flat Spring	£9.26 £7.72
33	HA139-1719 Available to backorder	Hex Head (Hh) Screw	£0.85 £0.71
35	HA133-1964 Available to backorder	Spacer	£2.96 £2.47
