Toro TimeMaster TM76K 76cm - 21811 (414160195 - 999999999) Spindle and Belt

Name: Toro TimeMaster TM76K 76cm - 21811 (414160195 - 999999999) Spindle and Belt
SKU: timemaster_tm76k_76cm_21811_41416195999999999_spindlebelt-group
Price: 0.46 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TimeMaster TM76K 76cm - 21811 (414160195 - 999999999) Spindle and Belt

Description

Toro TimeMaster TM76K 76cm - 21811 (414160195 - 999999999) Spindle and Belt Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA121-9107 Available to backorder	Spindle Assembly	£108.12 £90.10
1	HA120-7935 Available to backorder	[1.2] Spacer	£2.38 £1.98
1	HA138-9770 Available to backorder	[1.3] Ball Bearing	£8.84 £7.37
2	HA139-1731 Available to backorder	Hex Washer Head (Hwh) Roll Thd Screw	£1.13 £0.94
3	HA139-6612 Available to backorder	Spindle Shaft	£45.04 £37.53
4	HA139-6613 Available to backorder	Spindle Shaft	£33.48 £27.90
5	HA121-9100 Available to backorder	Sprocket	£61.00 £50.83
6	HA130-6664 Available to backorder	Spindle Brake Pulley	£53.82 £44.85
7	HA109-9505 In stock	Spring Washer	Was £5.56 £4.63 Special Price £2.39 £1.99
8	HA139-1725 In stock	Hex Nut	Was £1.13 £0.94 Special Price £0.60 £0.50
9	HA139-1726 Available to backorder	Rebound Washer	£3.20 £2.67

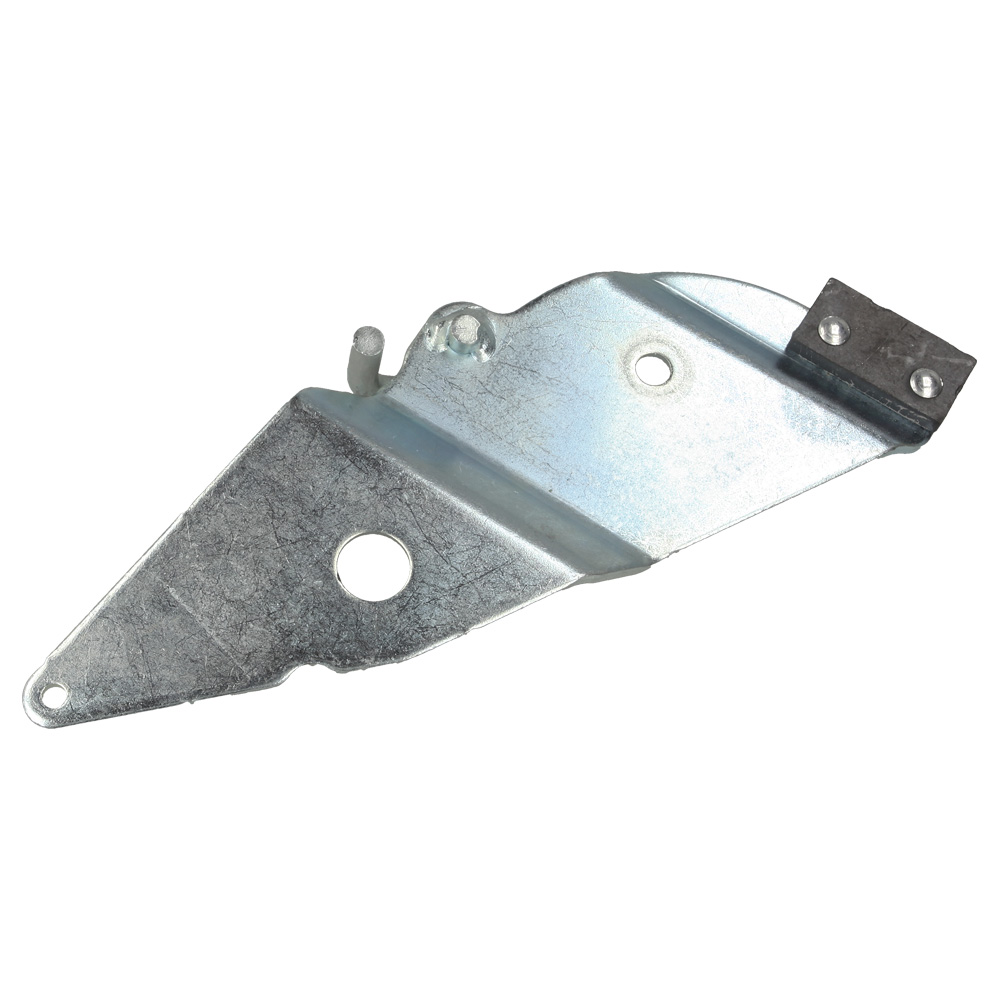

10	HA133-8102 In stock	Brake Arm Assembly	£55.02 £45.85
11	HA121-2305 Available to backorder	Composite Friction Washer	£7.70 £6.42
12	HA161-8318 In stock	Spacer	£19.12 £15.93
13	HA139-1728 Available to backorder	Hex Head (Hh) Bolt	£1.54 £1.28
14	HA139-1723 Available to backorder	Flat Washer	£0.60 £0.50
16	HA119-4038 In stock	Hex Nut	£0.58 £0.48
17	HA161-4815 In stock	Pulley Kit (Service)	£17.94 £14.95
17	HA131-4504 Available to backorder	[17.2] Loose Fit Bore Adapter	£5.84 £4.87
17	HA125-2533 Available to backorder	[17.3] Cap Plug	£2.86 £2.38
18	HA145-4016 Available to backorder	Bracket-Idler [60V]	£9.56 £7.97
19	HA139-1730 Available to backorder	Hex Head Flange (Hhf) Shoulder Screw	£3.10 £2.58
20	HA120-3335 In stock	Synchronous Belt	£53.88 £44.90
21	HA120-5245-03 Available to backorder	Spindle Belt Guide	£13.16 £10.97
22	HA120-5236 In stock	Blade Adapter Or Mower Blade Adapter	£7.76 £6.47
23	HA121-5808 Available to backorder	Brake Extension Spring	£19.12 £15.93
24	HA125-2466 Available to backorder	Blade Bolt	£3.70 £3.08
25	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.38 £1.98
26	HA120-7082 Available to backorder	Idler Pulley	£26.30 £21.92

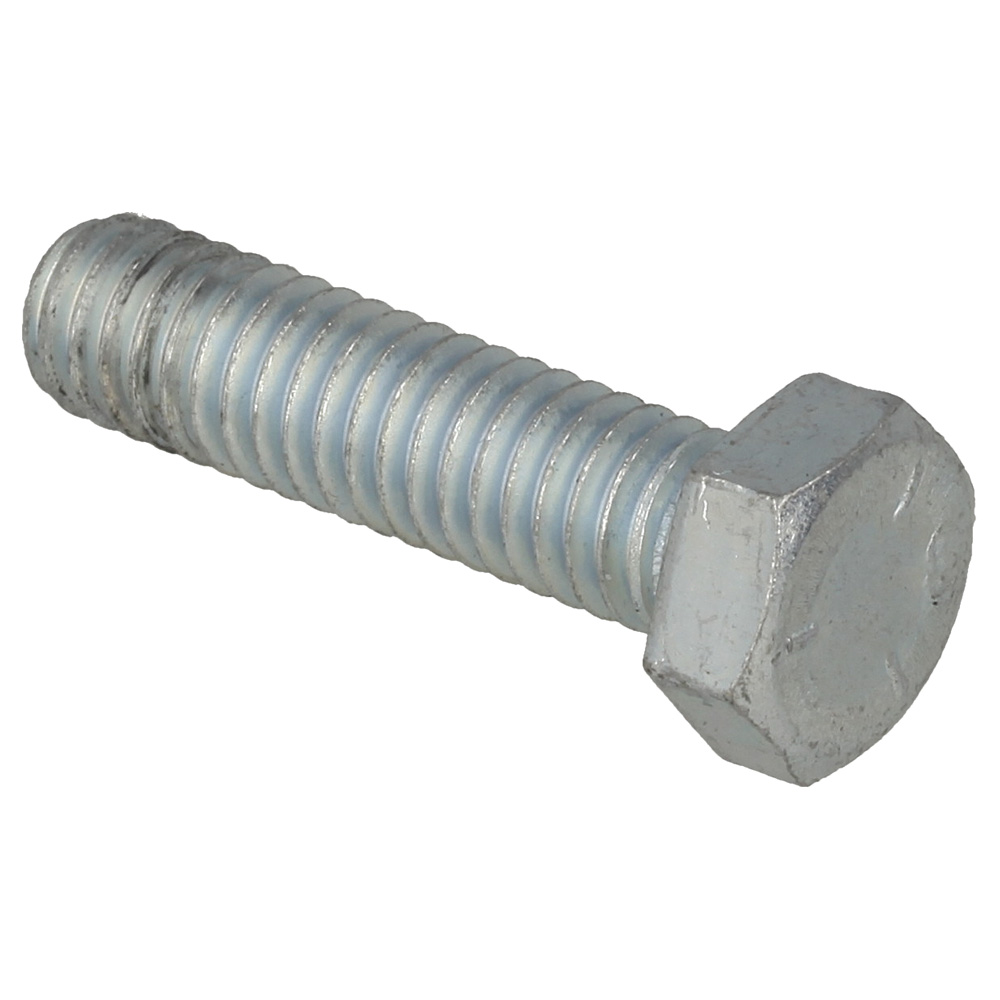

27	HA120-9696 Available to backorder	Screw-Hh [5.16-18 X 1.250]	£0.60 £0.50

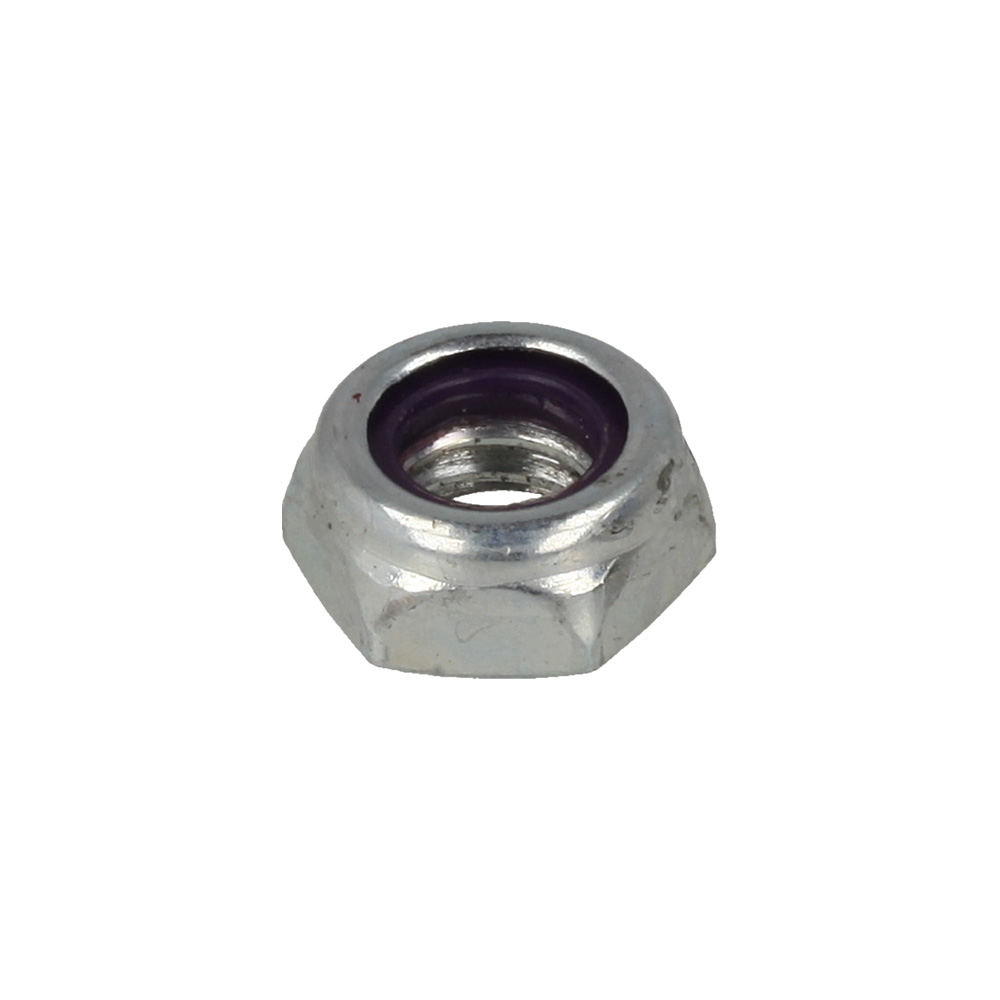

28	HA137-3089 Available to backorder	Hex Nut	£0.55 £0.46
29	HA116-6358-03 In stock	15.4 Inch Mower Blade	£21.36 £17.80
30	HA121-2336 Available to backorder	Flat Spring	£8.72 £7.27

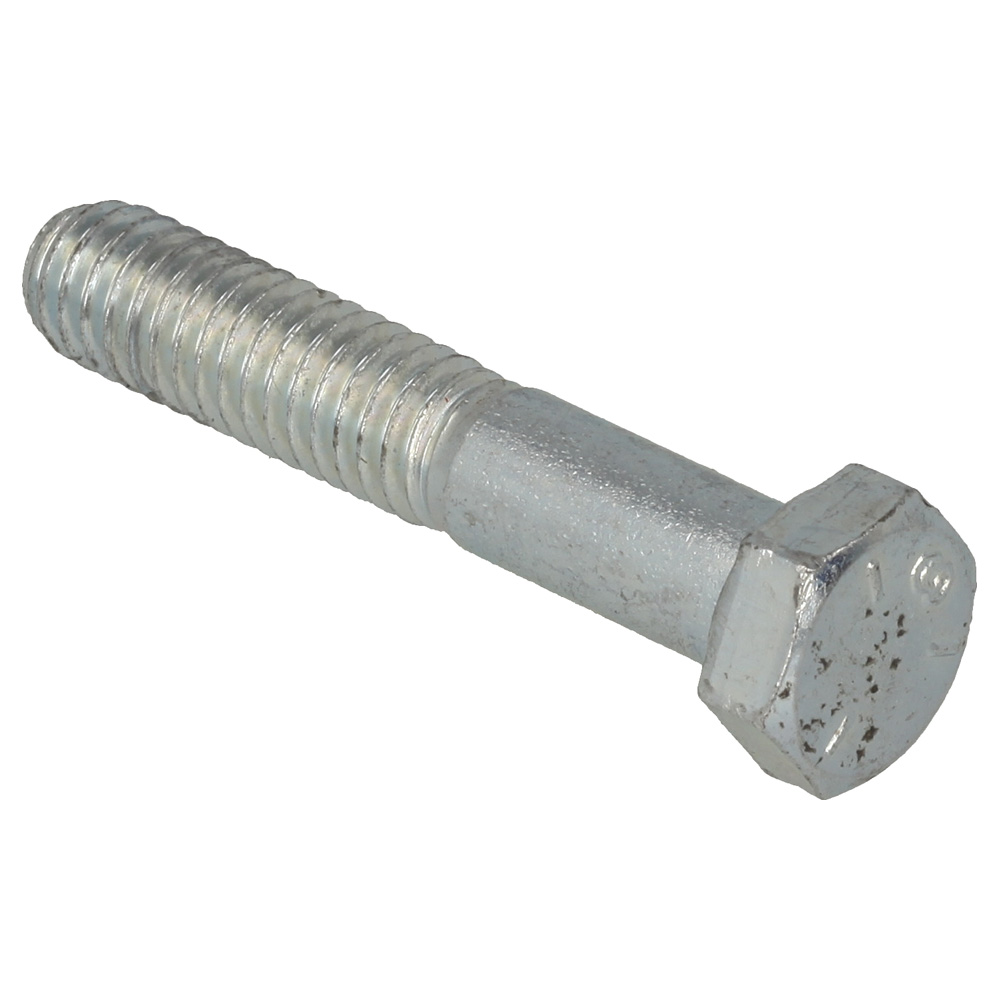

33	HA139-1719 Available to backorder	Hex Head (Hh) Screw	£0.98 £0.82
35	HA133-1964 Available to backorder	Spacer	£2.86 £2.38
