Toro TimeCutter 127cm - 74696 (400000000 - 419999999) Electrical

Name: Toro TimeCutter 127cm - 74696 (400000000 - 419999999) Electrical
SKU: timecutter_127cm_74696_441918937_electrical-group
Price: 0.34 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TimeCutter 127cm - 74696 (400000000 - 419999999) Electrical

Description

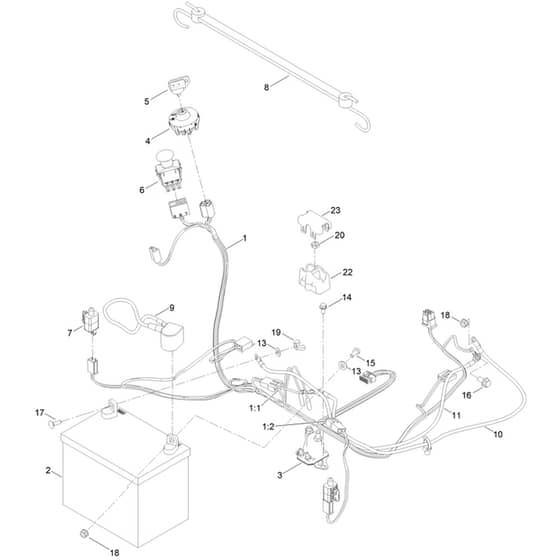

Toro TimeCutter 127cm - 74696 (400000000 - 419018937) Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA109102 Available to backorder	[1.2] Blade Fuse - 25 Amp	£7.70 £6.42
1	HA138-2521 Available to backorder	Wire Harness	£135.18 £112.65
1	HA109355 Available to backorder	[1.1] Blade Fuse - 15 Amp	£4.98 £4.15
2	HA105-1692 Available to backorder	230 Amp Battery	£196.08 £163.40
3	HA117-1197 Available to backorder	Solenoid	£51.44 £42.87
4	HA137-4100 Available to backorder	Z-Master Ignition Switch	£31.10 £25.92
5	HA63-8360 Available to backorder	Ignition Key	£6.34 £5.28
6	HA103-5221 Available to backorder	Pto Switch	£64.60 £53.83
7	HA110-6765 Available to backorder	Ignition Switch	£15.54 £12.95
8	HA139-2381 Available to backorder	Rubber Strap	£7.52 £6.27
9	HA140-2713 Available to backorder	Positive Battery Cable	£14.34 £11.95
10	HA139-2431 Available to backorder	8 Gauge Battery Cable - Red	£14.34 £11.95
11	HA110-6793 Available to backorder	Black Battery Cable	£33.48 £27.90
13	HA120-9679 Available to backorder	Washer-Flat [.281 X .625 X 0.065.Stl.Cz]	£0.41 £0.34
14	HA32144-4 In stock	Hex Washer Head (Hwh) Screw	Was £1.68 £1.40 Special Price £0.60 £0.50
15	HA137-3041 Available to backorder	Hex Head (Hh) Screw	£0.55 £0.46
16	HA139-2593 Available to backorder	Hex Head Flange (Hhf) Screw	£1.13 £0.94
17	HA137-3053 Available to backorder	Carriage Bolt	£4.78 £3.98
18	HA139-2575 Available to backorder	Hex Flange (Hf) Nut	£0.55 £0.46
19	HA32103-22 Available to backorder	Wing Nut	£2.86 £2.38
20	HA139-2580 Available to backorder	Hj Nut	£0.55 £0.46
22	HA140-2080 Available to backorder	Solenoid Cover	£2.98 £2.48
23	HA140-2081 Available to backorder	Solenoid Cap	£2.86 £2.38
