Toro TimeCutter 127cm - 74696 (400000000 - 419999999) 50 Inch Deck and Decal

Name: Toro TimeCutter 127cm - 74696 (400000000 - 419999999) 50 Inch Deck and Decal
SKU: timecutter_127cm_74696_441918937_50_inch_deckdecal-group
Price: 0.4 GBP
Availability: InStock

Part No. timecutter_127cm_74696_441918937_50_inch_deckdecal-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TimeCutter 127cm - 74696 (400000000 - 419999999) 50 Inch Deck and Decal

Description

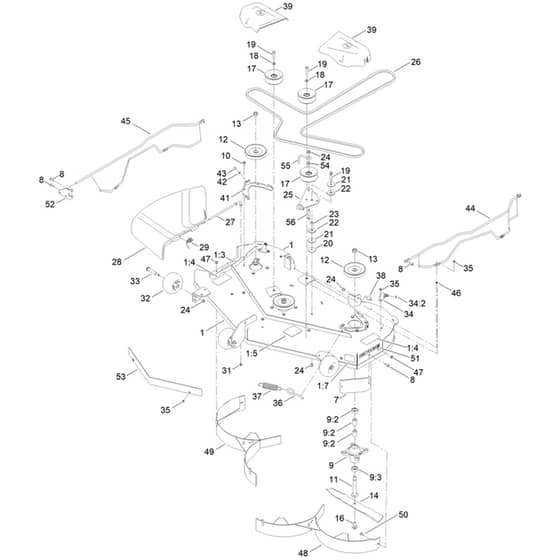

Toro TimeCutter 127cm - 74696 (400000000 - 419018937) 50 Inch Deck and Decal Parts Diagram

	Part No.	Details
1	HA132-0872 Available to backorder	[1.4] Decal - Deck Danger	£2.46 £2.05
1	HA99-3943 Available to backorder	[1.5] Belt Routing Decal	£8.89 £7.41
1	HA112-9840 Available to backorder	[1.7] Anti-Scalp Decal	£8.65 £7.21
1	HA138-9764 Available to backorder	50 Inch Deck Assembly	£1,145.71 £954.76
1	HA130-0731 Available to backorder	[1.3] Danger Decal	£4.20 £3.50
7	HA139-2448-03 Available to backorder	Corner Baffle	£28.45 £23.71
8	HA138-9753 Available to backorder	Screw	£0.48 £0.40
9	HA120-7935 Available to backorder	[9.2] Spacer	£2.46 £2.05
9	HA139-3214 Available to backorder	Spindle Assembly For Timecutter Mower	£82.08 £68.40
9	HA138-9770 Available to backorder	[9.3] Ball Bearing	£9.14 £7.62
10	HA32144-41 Available to backorder	Taptite Screw	£5.94 £4.95
11	HA117-7268 Available to backorder	Spindle Shaft	£49.92 £41.60
12	HA139-7454 Available to backorder	Pulley	£23.51 £19.59
13	HA139-2578 Available to backorder	Hex Nut	£1.60 £1.33

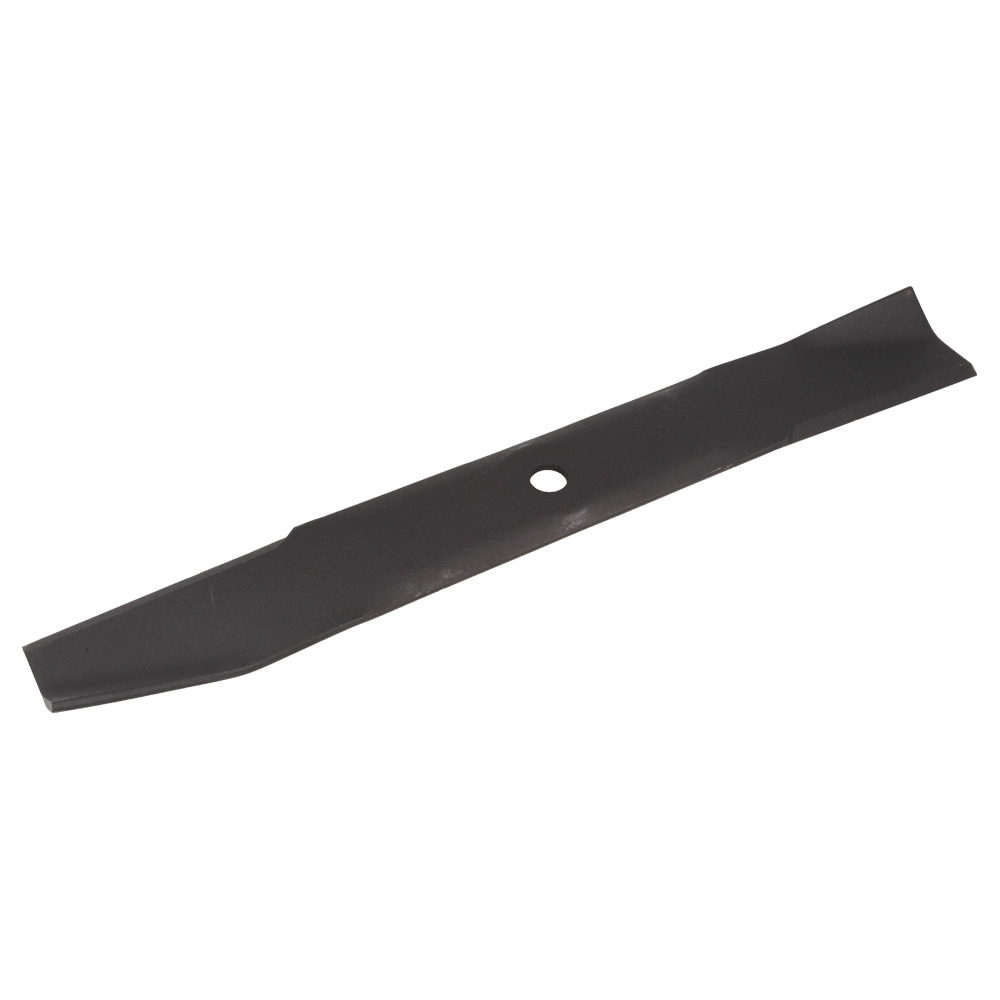

14	HA115-5062-03 In stock	17.5. Mulching Blade For 50 In. Timecutter Z And Ss Mowers	£31.58 £26.32
16	HA145-0411 Available to backorder	Blade Bolt	£3.83 £3.19
17	HA132-9420 In stock	Flat Idler Pulley	£30.76 £25.63
18	HA115-1166 Available to backorder	Flat Washer	£7.14 £5.95
19	HA138-0722 Available to backorder	Hex Head (Hh) Screw	£1.46 £1.22
20	HA139-5802 Available to backorder	Plain Washer	£7.14 £5.95
21	HA139-1726 Available to backorder	Rebound Washer	£3.31 £2.76
22	HA114-0463 In stock	Composite Friction Washer	£8.44 £7.03
23	HA115-4986 Available to backorder	Spacer	£2.34 £1.95
24	HA119-4042 Available to backorder	Nut-Hf. Ni	£1.18 £0.98
25	HA138-7262 Available to backorder	Idler Arm	£21.02 £17.52

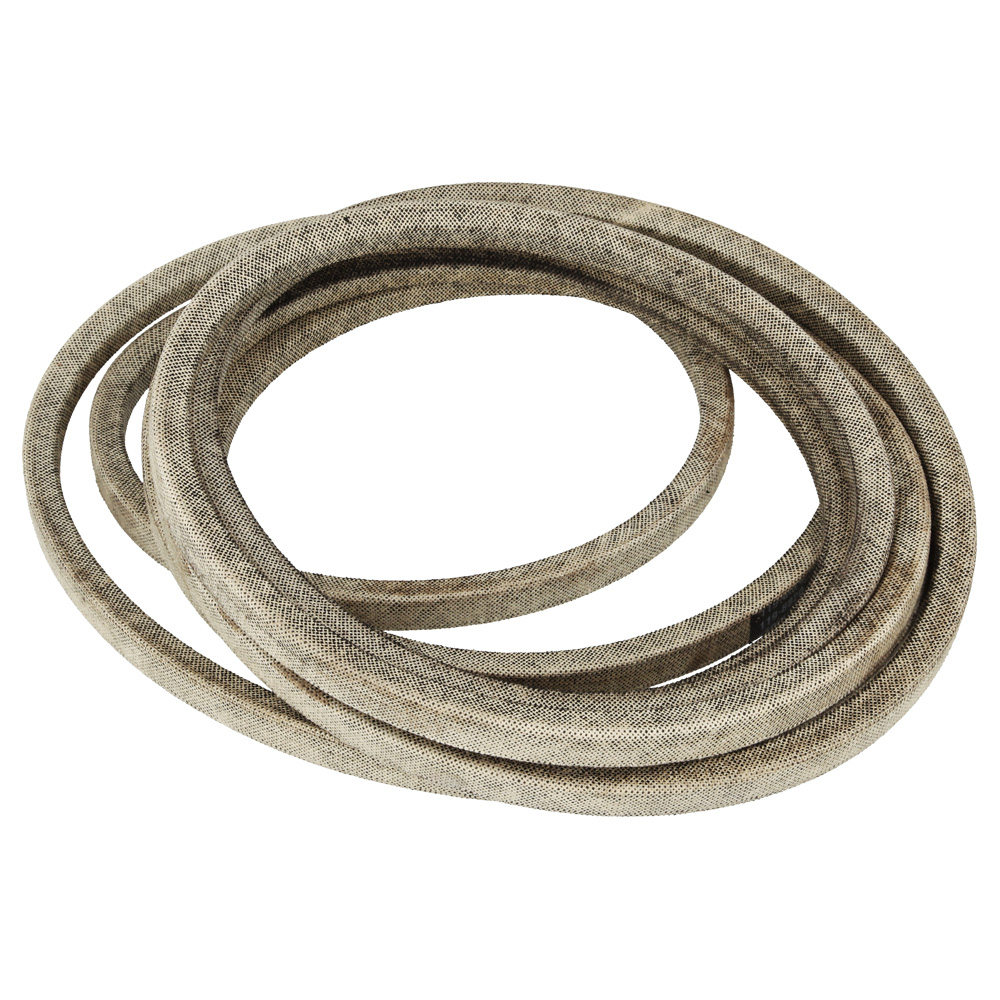

26	HA119-8820 In stock	50 Inch Deck Belt For Timecutter Mower	£55.55 £46.29
27	HA137-2019 Available to backorder	Pivot Rod	£14.83 £12.36
28	HA138-7502 Available to backorder	Discharge Deflector	£71.76 £59.80
29	HA138-7268 Available to backorder	Torsion Spring	£3.08 £2.57
31	HA121-4600 Available to backorder	Hex Nut	£1.34 £1.12
32	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£28.45 £23.71
33	HA139-2551 Available to backorder	Shoulder Bolt	£6.56 £5.47
34	HA133-9290 Available to backorder	[34.2] O-Ring	£1.46 £1.22
34	HA133-9289 Available to backorder	Washout Fitting Assembly	£7.54 £6.28
35	HA32144-4 Available to backorder	Hex Washer Head (Hwh) Screw	Was £1.60 £1.33 Special Price £0.60 £0.50
36	HA138-7266 Available to backorder	Return Spring Hook	£6.04 £5.03
37	HA138-7264 Available to backorder	Extension Spring	£9.26 £7.72
38	HA139-5871 Available to backorder	Deck Pin	£2.83 £2.36
39	HA144-1906 Available to backorder	Belt Cover	£13.61 £11.34
41	HA139-3272-03 Available to backorder	Bracket Assembly - Belt [Black	£14.83 £12.36
42	HA137-3079 Available to backorder	Plain Washer	£0.48 £0.40
43	HA94-6961 Available to backorder	Screw	£1.09 £0.91
44	HA161-6255 Available to backorder	Left Guard Asm [50 Fab]	£82.08 £68.40
45	HA161-6256 Available to backorder	Right Guard Asm [50 Fab]	£82.08 £68.40
46	HA1-803037 Available to backorder	Retaining Nut	£2.32 £1.93
47	HA119-4041 Available to backorder	Hex Flange (Hf) Nut	£0.83 £0.69
48	HA139-3236-03 Available to backorder	50In Baffle Asm [Lh Welded Black]	£304.32 £253.60
49	HA139-3234-03 Available to backorder	50In Baffle Asm [Rh Welded Black]	£304.32 £253.60
50	HA139-2630 Available to backorder	Carriage Bolt	£1.60 £1.33
51	HA119-2368 Available to backorder	Recycler Decal	£6.94 £5.78
52	HA140-5183-01 Available to backorder	Plate-Mount. Guard [Red]	£17.32 £14.43
53	HA139-7485-03 Available to backorder	Shield-Front [50 Black]	£49.51 £41.26
54	HA138-7207 Available to backorder	Blower Hub Spacer	£0.85 £0.71
55	HA138-7270 Available to backorder	Idler Belt Guide	£2.96 £2.47
56	HA139-2589 Available to backorder	Hex Head (Hh) Screw	£1.60 £1.33
