Toro TimeCutter 107cm - 74677 (417000000 - 419999999) 42in Deck and Decal

Name: Toro TimeCutter 107cm - 74677 (417000000 - 419999999) 42in Deck and Decal
SKU: timecutter_107cm_74677_41742199999_42in_deckdecal-group
Price: 0.34 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TimeCutter 107cm - 74677 (417000000 - 419999999) 42in Deck and Decal

Description

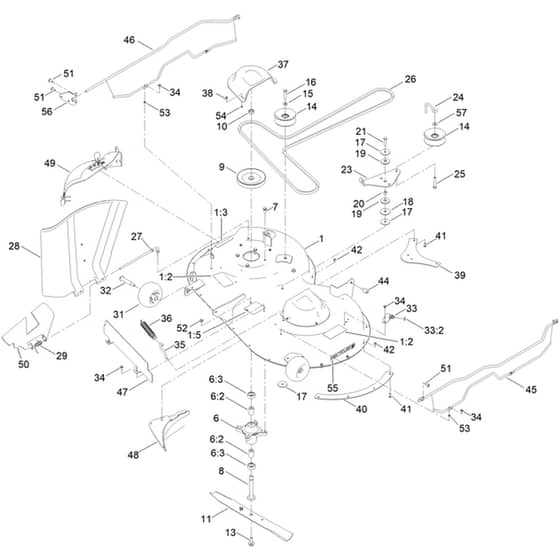

Toro TimeCutter 107cm - 74677 (417000000 - 420199999) 42in Deck and Decal Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA138-9761 Available to backorder	42 Inch Deck And Decal Assembly	£720.00 £600.00
1	HA132-0872 Available to backorder	[1.2] Decal - Deck Danger	£2.38 £1.98
1	HA130-0731 Available to backorder	[1.3] Danger Decal	£4.06 £3.38
1	HA105-7015 Available to backorder	[1.5] Belt Routing Decal	£4.54 £3.78
6	HA139-3214 Available to backorder	Spindle Assembly For Timecutter Mower	£80.44 £67.03
6	HA120-7935 Available to backorder	[6.2] Spacer	£2.38 £1.98
6	HA138-9770 Available to backorder	[6.3] Ball Bearing	£8.84 £7.37
7	HA32144-41 Available to backorder	Taptite Screw	£5.74 £4.78
8	HA117-7268 Available to backorder	Spindle Shaft	£46.64 £38.87

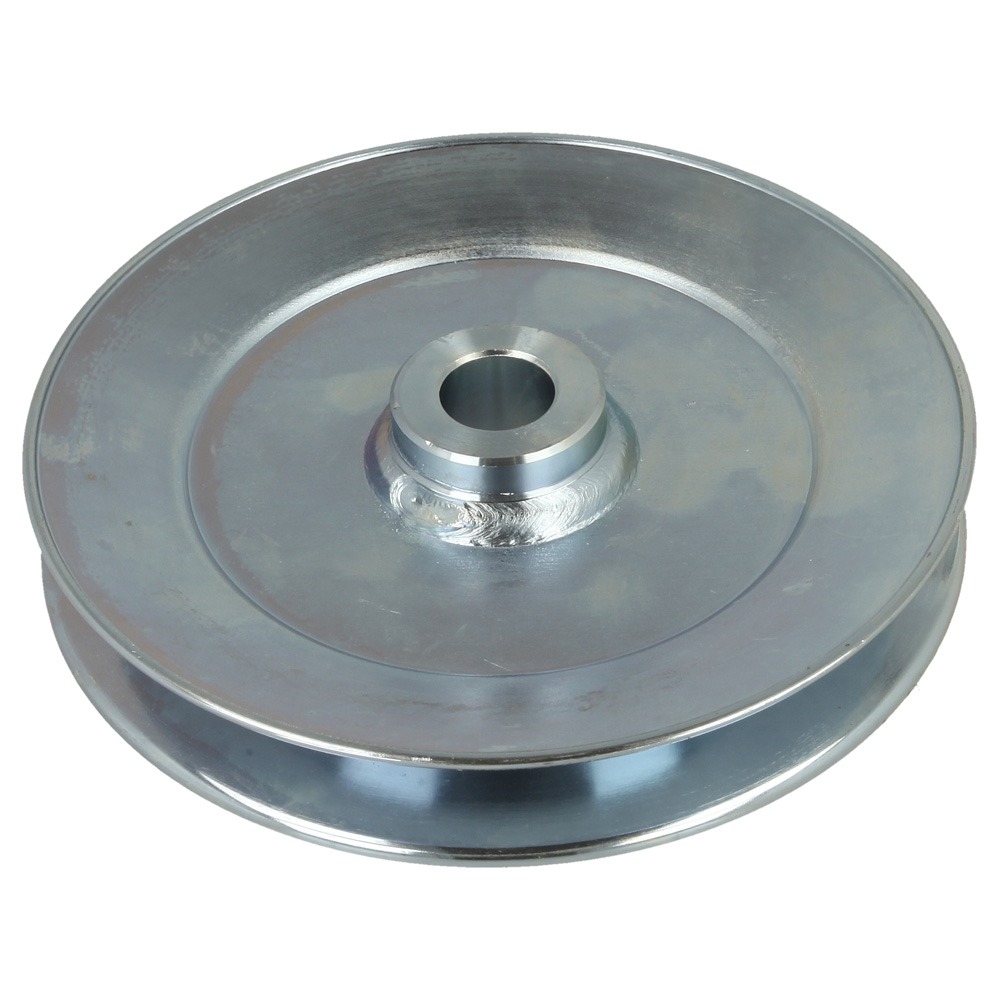

9	HA139-2433 Available to backorder	Pulley	£41.86 £34.88
10	HA139-2578 Available to backorder	Hex Nut	£1.54 £1.28

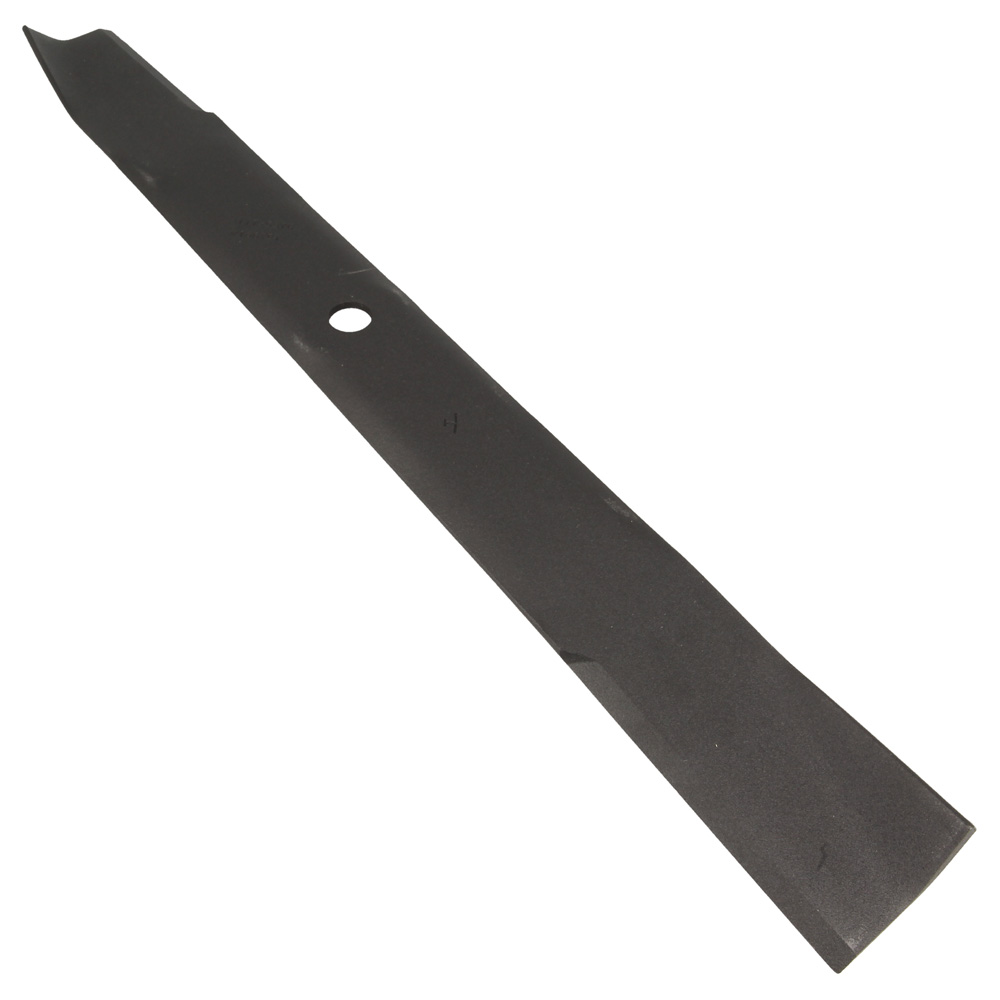

11	HA117-5376-03 Available to backorder	21.6 Inch Mulching Blade	£34.68 £28.90
13	HA145-0411 Available to backorder	Blade Bolt	£3.70 £3.08

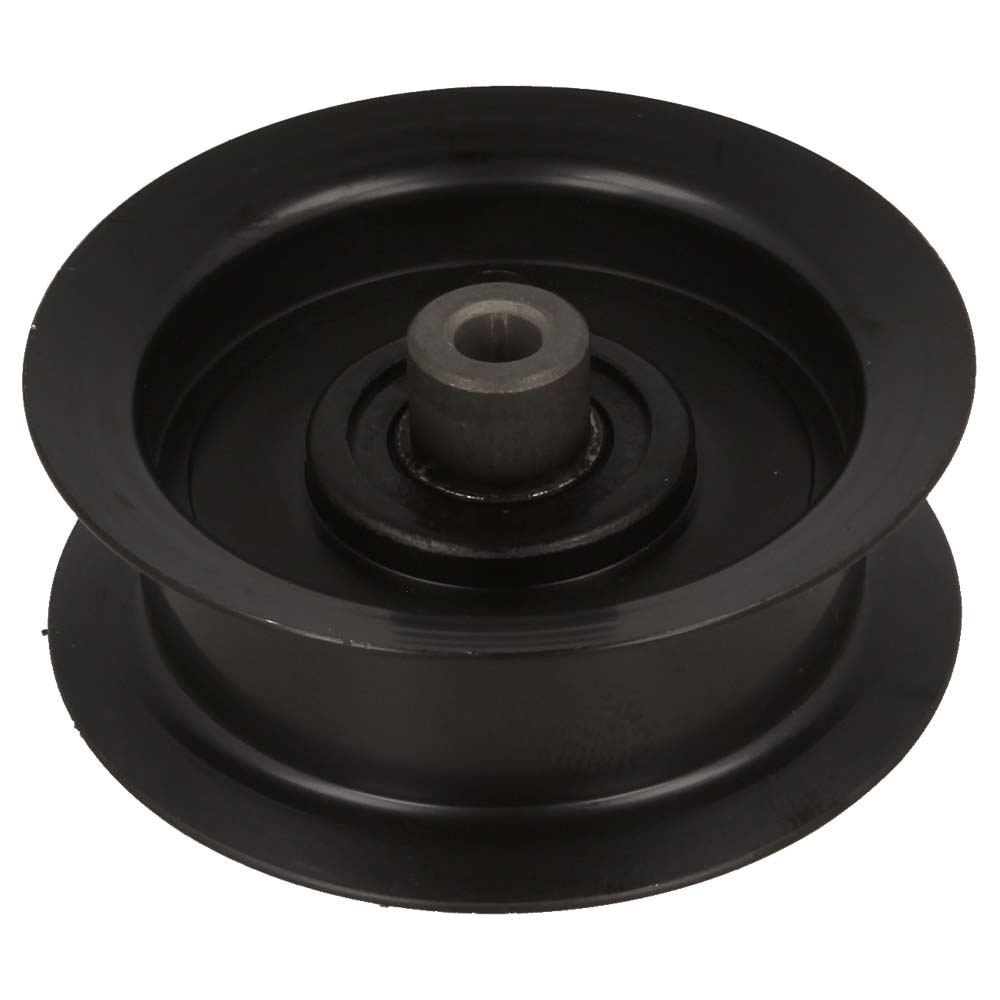

14	HA132-9420 In stock	Flat Idler Pulley	£27.50 £22.92
15	HA115-1166 Available to backorder	Flat Washer	£6.56 £5.47
16	HA138-0722 Available to backorder	Hex Head (Hh) Screw	£1.70 £1.42
17	HA139-1726 Available to backorder	Rebound Washer	£3.20 £2.67
18	HA120-2229 Available to backorder	Washer	£2.82 £2.35
19	HA114-0463 Available to backorder	Composite Friction Washer	£7.70 £6.42
20	HA115-4986 Available to backorder	Spacer	£2.26 £1.88
21	HA137-3070 Available to backorder	Hex Head (Hh) Screw	£7.56 £6.30
23	HA138-7262 Available to backorder	Idler Arm	£20.32 £16.93
24	HA138-7270 Available to backorder	Idler Belt Guide	£2.74 £2.28
25	HA139-2589 Available to backorder	Hex Head (Hh) Screw	£1.54 £1.28

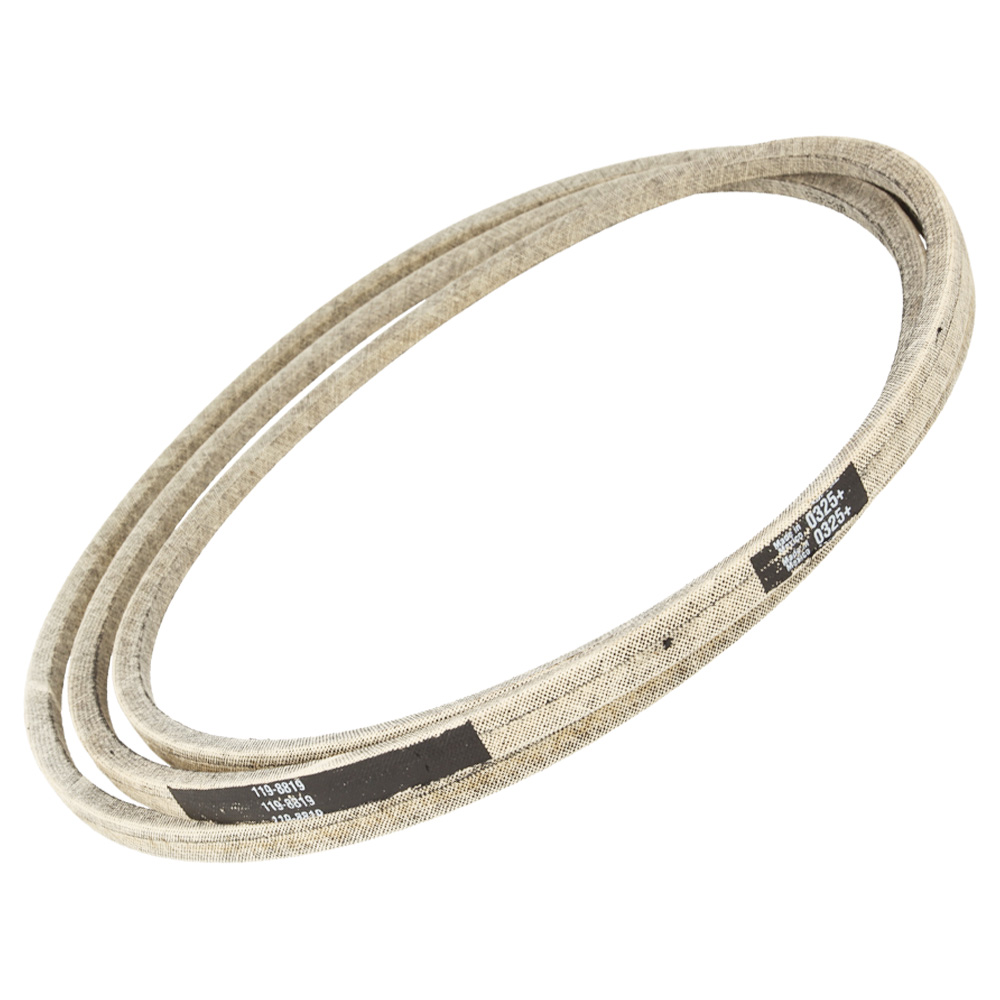

26	HA119-8819 Available to backorder	V-Belt	£47.86 £39.88
27	HA137-2019 Available to backorder	Pivot Rod	£14.34 £11.95
28	HA137-7046 Available to backorder	Deflector	£119.04 £99.20
29	HA138-7268 Available to backorder	Torsion Spring	£2.98 £2.48
31	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£26.30 £21.92
32	HA139-2551 Available to backorder	Shoulder Bolt	£6.20 £5.17
33	HA133-9289 Available to backorder	Washout Fitting Assembly	£7.28 £6.07
33	HA133-9290 Available to backorder	[33.2] O-Ring	£1.70 £1.42
34	HA32144-4 In stock	Hex Washer Head (Hwh) Screw	Was £1.68 £1.40 Special Price £0.60 £0.50
35	HA138-7267 Available to backorder	Return Spring Hook	£2.86 £2.38
36	HA138-7265 Available to backorder	Spring Extension	£8.72 £7.27
37	HA108-7889 Available to backorder	Belt Cover For Timecutter Mower	£39.48 £32.90
38	HA139-1713 Available to backorder	Taptite Screw	£0.41 £0.34
39	HA137-2036-03 Available to backorder	Rear Blowout Baffle	£20.32 £16.93
40	HA137-2037-03 Available to backorder	Side Blowout Baffle	£13.16 £10.97
41	HA137-3041 Available to backorder	Hex Head (Hh) Screw	£0.55 £0.46
42	HA137-3088 Available to backorder	Hex Nut	£0.55 £0.46
44	HA139-5871 Available to backorder	Deck Pin	£2.74 £2.28
45	HA140-0368 Available to backorder	Left Guard Asm [42 Stamped]	£62.58 £52.15
46	HA140-0369 Available to backorder	Right Guard Asm [42 Stamped]	£62.58 £52.15
47	HA137-2039-03 Available to backorder	Shield-Frount [42 Deck Black]	£26.30 £21.92
48	HA137-7034-03 Available to backorder	Baffle-Clipping [Weldment Black]	£65.80 £54.83
49	HA137-5034 Available to backorder	42 Inch Mulch Plug Assembly	£176.96 £147.47
50	HA138-2555-03 Available to backorder	Deflector Insert [42 Stamped Black]	£29.90 £24.92
51	HA138-9753 Available to backorder	Screw	£0.55 £0.46
52	HA119-4041 Available to backorder	Hex Flange (Hf) Nut	£0.91 £0.76
53	HA1-803037 Available to backorder	Retaining Nut	£2.18 £1.82
54	HA132-0900 Available to backorder	Retaining Nut	£0.72 £0.60
55	HA119-2368 Available to backorder	Recycler Decal	£6.70 £5.58
56	HA140-5183-01 Available to backorder	Plate-Mount. Guard [Red]	£16.74 £13.95
57	HA138-7207 Available to backorder	Blower Hub Spacer	£0.98 £0.82
