Toro TimeCutter 107cm - 74677 (414700000 - 416999999) LH Hydro Transmission No. 139-7450

Description

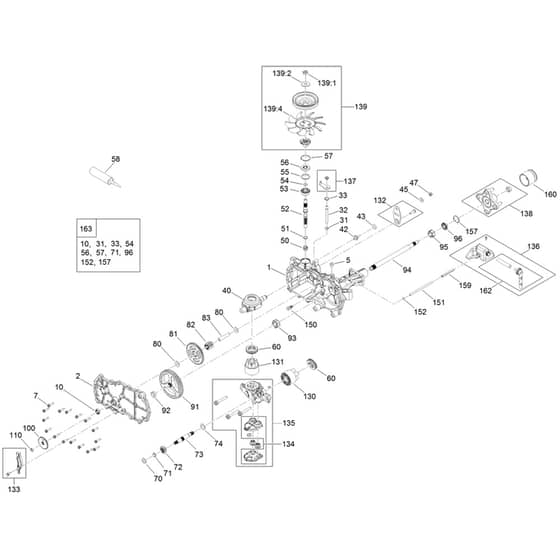

Toro TimeCutter 107cm - 74677 (414700000 - 416999999) LH Hydro Transmission No. 139-7450 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA120-5532 Available to backorder	Right Hand Main Housing Assembly	£1,016.40 £847.00
2	HA120-5534 Available to backorder	Right Hand Housing Side Kit	£277.68 £231.40
5	HA104-2189 Available to backorder	Straight Thread Plug	£29.90 £24.92
7	HA117-5359 Available to backorder	Hex Head Flange (Hhf) Screw	£3.46 £2.88
32	HA106-8678 Available to backorder	Bypass Rod	£64.60 £53.83
33	HA106-8679 Available to backorder	Internal Retaining Ring	£10.76 £8.97
40	HA104-5304 Available to backorder	Trunnion Swashplate	£203.04 £169.20
42	HA104-2116 Available to backorder	Stud	£43.06 £35.88
43	HA112-9853 Available to backorder	Friction Puck	£9.08 £7.57
51	HA120-5538 Available to backorder	Washer	£6.90 £5.75
52	HA104-5306 Available to backorder	Input Shaft	£324.00 £270.00
53	HA104-5311 Available to backorder	Ball Bearing	£51.44 £42.87
54	HA104-5307 Available to backorder	Retaining Ring	£8.60 £7.17
55	HA104-5308 Available to backorder	Spacer	£9.56 £7.97
56	HA104-5310 Available to backorder	Lip Seal	£44.26 £36.88
57	HA104-5309 Available to backorder	Retaining Ring	£14.34 £11.95
58	HA104-2147 Available to backorder	Sealant	£160.68 £133.90
60	HA94-6922 Available to backorder	Thrust Bearing	£71.76 £59.80
70	HA104-5339 Available to backorder	Flat Washer	£10.12 £8.43
71	HA104-5340 Available to backorder	Retaining Ring	£8.60 £7.17
72	HA104-5316 Available to backorder	13 Tooth Gear Pinion	£37.08 £30.90
73	HA106-8683 Available to backorder	Motor Shaft	£294.48 £245.40
74	HA104-5360 Available to backorder	Washer	£11.88 £9.90
80	HA94-1933 Available to backorder	Obs Washer	£8.82 £7.35
81	HA104-5317 Available to backorder	10 Tooth.48 Tooth Gear	£201.84 £168.20
82	HA104-5318 Available to backorder	10 Tooth Jackshaft Gear	£98.08 £81.73
83	HA104-5329 Available to backorder	Jackshaft Pin	£120.60 £100.50
91	HA120-5539 Available to backorder	Bull Gear	£105.60 £88.00
92	HA104-2142 Available to backorder	Hj Nut	£14.34 £11.95
93	HA115-8314 Available to backorder	Inboard Bushing	£12.86 £10.72
94	HA120-5540 Available to backorder	Axle Shaft	£150.48 £125.40
95	HA120-5541 Available to backorder	Sleeve Bearing	£14.34 £11.95
100	HA106-8694 Available to backorder	Brake. Cog Disc	£67.00 £55.83
110	HA106-8677 Available to backorder	External Retaining Ring	£9.92 £8.27
130	HA103-2666 Available to backorder	Cylinder Block Kit	£571.20 £476.00
131	HA110-8561 Available to backorder	Pump Block Assembly	£414.00 £345.00
132	HA117-5362 Available to backorder	Control Arm Kit	£33.48 £27.90
133	HA106-8688 Available to backorder	Brake Arm Kit	£59.52 £49.60
134	HA112-9861 Available to backorder	Right Hand Center Section Filter Kit	£608.40 £507.00
135	HA114-1634 Available to backorder	Filter Kit	£65.96 £54.97
136	HA121-5730 Available to backorder	Right Hand Expansion Tank Kit	£111.36 £92.80
137	HA120-5549 Available to backorder	Right Hand Bypass Kit	£49.04 £40.87
138	HA121-5731 Available to backorder	Hub Kit	£209.76 £174.80
139	HA135-7349 Available to backorder	Fan And Pulley Kit	£148.32 £123.60
150	HA104-5349 Available to backorder	Sae Fitting	£80.14 £66.78
151	HA115-8302 Available to backorder	Hose	£7.28 £6.07
152	HA104-5361 Available to backorder	O-Ring	£9.44 £7.87
159	HA121-5728 Available to backorder	Tube Case	£7.76 £6.47
160	HA125-0041 Available to backorder	Axle Cap	£38.26 £31.88
162	HA139-3278 Available to backorder	Breather Assembly Kit	£41.82 £34.85
163	HA120-7103 Available to backorder	Seal And Ring Kit	£38.26 £31.88
