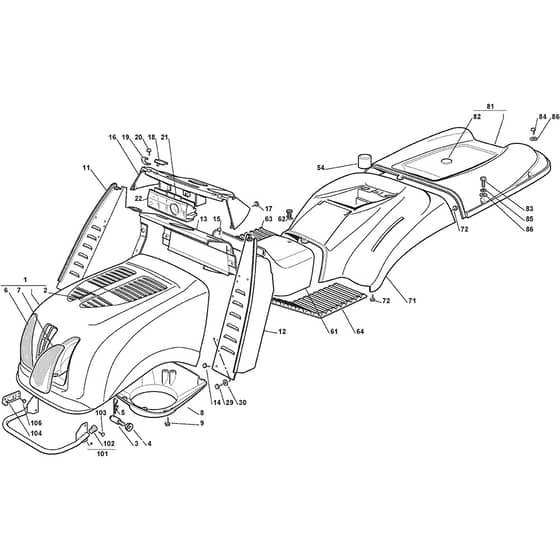

TH 22 122 H - 2010 - 2T1310259/GR - Mountfield Ride On Mower Body Diagram

Description

Mountfield TH 22 122 H Parts Diagram

Product Name - TH 22/122 H

Model Year - 2010

Model Type - TCP 122 Hydro

Art.N - 2T1310259/GR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO125547024/0 Available to backorder	Blue Injection Plate	£1.55 £1.29
3	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
4	MO112293201/0 In stock	Nut	£1.69 £1.41
5	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
6	MO125410869/0 Available to backorder	Left Headlights Grill Bonnet Brill.Iseki	£11.82 £9.85
8	MO325108028/0 Available to backorder	Conveyor	£8.29 £6.91
8	MO325108024/0 Available to backorder	Right Conveyor	£7.19 £5.99
9	MO112728686/0 In stock	Screw	£1.55 £1.29
11	MO382785022/8 Available to backorder	Right Dashboard Support To 31-8-2011	£29.56 £24.63
11	MO382785022/10 Available to backorder	Right Dashboard Support From 01-9-2011	£40.63 £33.86
12	MO382785021/7 Available to backorder	Left Dashboard Support To 31-8-2011	£29.56 £24.63
12	MO382785021/9 Available to backorder	Left Dashboard Support From 01-9-2011	£38.20 £31.83
13	MO382785137/1 Available to backorder	Central Dashboard Support From 01-9-2003	£13.43 £11.19
15	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
18	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
19	MO125430215/1 Available to backorder	Coupling Spring From 01-9-2010	£5.22 £4.35
20	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
21	MO125600007/0 Available to backorder	Electronic Card Protection	£39.34 £32.78
22	MO125600051/0 Available to backorder	Protection	£10.14 £8.45
29	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
30	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
54	MO325122000/2 Available to backorder	Cap	£1.55 £1.29
62	MO125580020/2 In stock	Stake From 01-9-2010	£8.29 £6.91
63	MO125110270/0 Available to backorder	Right Footboard Cover	£54.08 £45.07
64	MO382110314/0 Available to backorder	Left Footboard Cover	£54.08 £45.07
72	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
81	MO382110272/0 Available to backorder	Blue Grass-Catcher Cover	£159.13 £132.61
83	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
84	MO112729601/1 Available to backorder	Screw From 01-9-2003	£1.48 £1.23
85	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
86	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
101	MO382869006/1 Available to backorder	Muffler Tube Guard	£32.30 £26.92
102	MO118566110/0 Available to backorder	Push Rod	£1.55 £1.29
103	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
104	MO325547109/2 Available to backorder	Plate From 01-9-2010	£4.93 £4.11
106	MO112731580/0 Available to backorder	Self-Tap Screw Te 4.8 X 9.5 C15 Bz	£1.55 £1.29
