Tanaka TRB 27EP - Cylinder Assembly

Name: Tanaka TRB 27EP - Cylinder Assembly
SKU: trbtrb27epcylinder-group
Price: 0.4 GBP
Availability: InStock

Part No. trbtrb27epcylinder-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

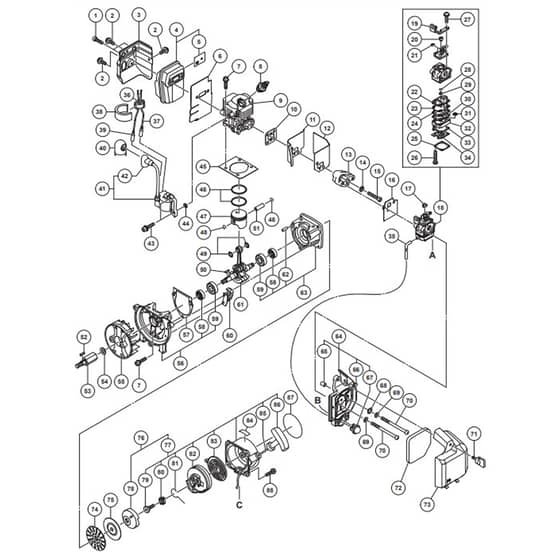

Tanaka TRB 27EP Blower - Cylinder Assembly Parts Diagram

	Part No.	Details
1	TK6600518 Available to backorder	Seal Lock Hex. Socket Hd. Bolt M6X16	£0.48 £0.40
4	TK6601488 Available to backorder	Muffler Ass'Y 1 Includ.2.3	£58.54 £48.78
7	TK6695514 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X2	£1.78 £1.48
8	2688 In stock	Ignition Plug (Torch L7Rtc)	Was £1.88 £1.57 Special Price £1.07 £0.89
10	TK6699437 Available to backorder	Insulator Gasket	£1.00 £0.83
16	TK6698405 Available to backorder	Carburetor Packing	£3.86 £3.22
17	TK6691337 Available to backorder	Swivel Cap	£1.78 £1.48
19	TK6699287 Available to backorder	Cable Adjust Stay	£9.17 £7.64
21	TK6684696 Available to backorder	Stop Ring	£1.78 £1.48
22	TK6684692 Available to backorder	Pump Gasket	£26.83 £22.36
23	TK6684693 In stock	Pump Diaphragm	£7.43 £6.19
24	TK6691242 Available to backorder	Pump Plate	£3.58 £2.98
25	TK6685222 Available to backorder	Diaphragm Cover-Metering	£7.16 £5.97
26	TK6691312 Available to backorder	Set Screw	£1.78 £1.48
28	TK6684695 Available to backorder	O-Ring	£3.58 £2.98
30	TK6691234 Available to backorder	Circuit Plate	£5.38 £4.48
31	TK6684700 Available to backorder	Inlet Screen	£3.58 £2.98
32	TK6696828 Available to backorder	Pump Body Comp.	£26.05 £21.71
35	TK6601444 Available to backorder	Fuel Pipe	£1.16 £0.97
38	TK6601617 Available to backorder	Support (D)	£0.48 £0.40
42	TK6696833 Available to backorder	Cord	£18.85 £15.71
43	TK6698388 Available to backorder	Hex. Socket Hd. Bolt (W.Washers) M4X1	£2.03 £1.69
45	TK6600510 Available to backorder	Cylinder Packing	£0.64 £0.53
48	TK6684590 Available to backorder	Cir Clip	£1.79 £1.49
51	TK6601344 Available to backorder	Piston Pin	£4.39 £3.66
54	TK323212 Available to backorder	Bolt Washer M8 (Black)	£2.98 £2.48
55	TK6699289 Available to backorder	Magneto Rotor	£46.94 £39.12
58	TK6684607 Available to backorder	Oil Seal Tb 12227	£3.61 £3.01
59	TK6684608 Available to backorder	Ball Bearing 6001 C3	£7.16 £5.97
60	TK6600924 Available to backorder	Crank Case Guard	£0.64 £0.53
64	TK6600911 Available to backorder	Air Cleaner Base Ass'Y 1 Includ.65-	£19.60 £16.33
67	TK6685139 In stock	Priming Pump Comp.	£7.67 £6.39
69	TK6685407 Available to backorder	Bolt Washer D5	£1.39 £1.16
71	TK6601509 Available to backorder	Cover Setting Bolt	£1.39 £1.16
72	TK6600529 In stock	Air Cleaner Element	£1.25 £1.04
73	TK6601484 Available to backorder	Air Cleaner Cover	£2.09 £1.74
76	TK6600408 Available to backorder	Recoil Starter Ass'Y 1 Includ.77.	£14.28 £11.90
77	TK6600406 Available to backorder	Recoil Ass'Y 1 Includ.79-83.85.	£13.34 £11.12
78	TK6600407 Available to backorder	Starter Pulley	£2.26 £1.88
83	TK6600403 In stock	Recoil Spring	£8.52 £7.10
