Tanaka TPH-270S - H49 TPH270S9541 - Fan Case

Tanaka TPH-270S - H49 TPH270S9541 - Fan Case

Description

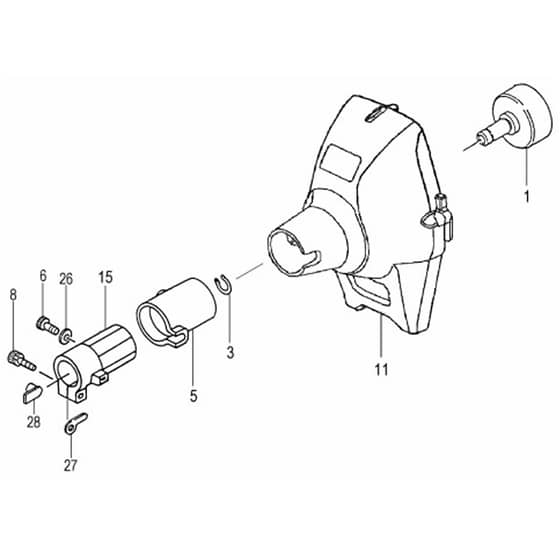

Tanaka TPH-270S Hedge Trimmer - Fan Case Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		TK6688580 Available to backorder	Clutch Drum Comp.		£14.78 £12.32
	3		TK6697442 Available to backorder	Stop Ring C-12 Outer		£0.41 £0.34
	5		TK6691823 Available to backorder	Cushion Rubber		£4.55 £3.79
	6		TK6695047 Available to backorder	Hex. Hole Bolt 5X16		£1.73 £1.44
	8		TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S		£1.72 £1.43
	11		TK6686959 Available to backorder	Fan Case Comp.		£22.58 £18.82
	15		TK6689651 Available to backorder	Pipe Holder 24 Dia.		£8.10 £6.75
	26		TK6684918 Available to backorder	Washer 5		£1.73 £1.44
	27		TK6689159 Available to backorder	Gear Case Washer		£1.70 £1.42
	28		TK6689664 Available to backorder	Metal Fitting		£4.55 £3.79

Description

Tanaka TPH-270S Hedge Trimmer - Fan Case Parts Diagram
