Tanaka TPH-2501-S - H31 TPH2501S9537 Parts
Tanaka TPH-2501-S - H31 TPH2501S9537 - Blade

Tanaka TPH-2501-S - H31 TPH2501S9537 - Blade

Part No. tphh31tph2501s9537tph2501sblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TPH-2501-S - H31 TPH2501S9537 - Blade

Tanaka TPH-2501-S - H31 TPH2501S9537 - Blade

Description

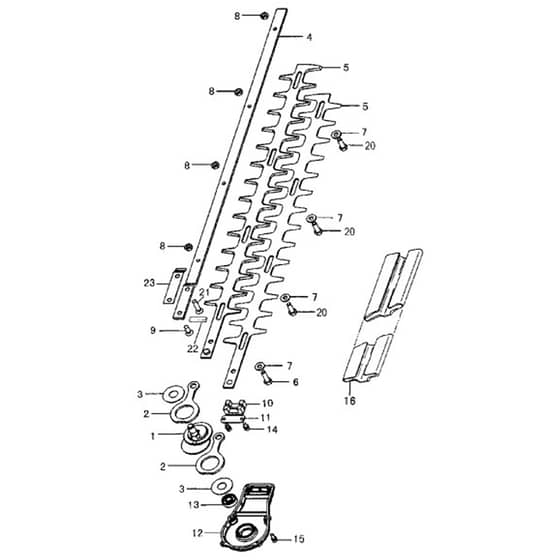

Tanaka TPH-2501-S Hedge Trimmer - Blade Parts Diagram

Ref.		Img.	Part No.	Details
	2		TK6686809 In stock	Cam Rod		£9.98 £8.32
	3		TK6686611 Available to backorder	Cam-Rod Guide Plate		£1.86 £1.55
	4		TK6687125 Available to backorder	Cutter Guide 625.5Mm 1 Z063801		£42.85 £35.71
	4		TK6687135 Available to backorder	Cutter Guide 625Mm 1 - Z0638		£35.09 £29.24
	5		TK6687079 Available to backorder	Cutter A		£64.92 £54.10
	6		TK6697449 In stock	Fixing Bolt A M6 1 Z063801		£1.14 £0.95
	6		TK6697450 In stock	Cutter Fixing Bolt A 4 - Z0638		£0.76 £0.63
	7		TK6687187 In stock	Washer 7 Black		£1.52 £1.27
	8		TK6697443 In stock	Cutter Fixing Nut 4 - Z0638		£1.03 £0.86
	8		TK6697440 In stock	Flange Nut 6 4 Z063801		£0.36 £0.30
	10		TK6686654 In stock	Grease Seal A 2 - Z0638		£1.85 £1.54
	10		TK6686647 Available to backorder	Grease Seal A 2 Z063801		£1.81 £1.51
	11		TK6686826 Available to backorder	Cam-Rod Holding Plate		£1.78 £1.48
	12		TK6689172 Available to backorder	Gear Case Cover B		£28.91 £24.09
	13		TK6684775 Available to backorder	Ball Bearing 608 Zz C3		£8.59 £7.16
	14		TK6697446 In stock	Hex. Hole Bolt 4X10S		£0.48 £0.40
	15		TK6697445 Available to backorder	Hex. Hole Bolt 4X12S		£0.46 £0.38
	16		TK6687299 Available to backorder	Cutter Cover 1 - Z0638		£19.94 £16.62
	16		TK6687301 Available to backorder	Cutter Cover 1 Z063801		£12.84 £10.70
	21		TK6695075 Available to backorder	Hex. Hole Flush Bolt 6X25 1 Z063801		£1.78 £1.48
	22		TK6686666 Available to backorder	Grease Seal B 1 Z063801		£1.78 £1.48
	23		TK6688633 Available to backorder	Spacer		£1.78 £1.48

Description

Tanaka TPH-2501-S Hedge Trimmer - Blade Parts Diagram
