Tanaka TPH-230SS - H43 TPH230SS9536 - Engine 2

Name: Tanaka TPH-230SS - H43 TPH230SS9536 - Engine 2
SKU: tphh43tph230ss9536tph230ssengine2-group
Price: 1.21 GBP
Availability: InStock

Part No. tphh43tph230ss9536tph230ssengine2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TPH-230SS - H43 TPH230SS9536 - Engine 2

Description

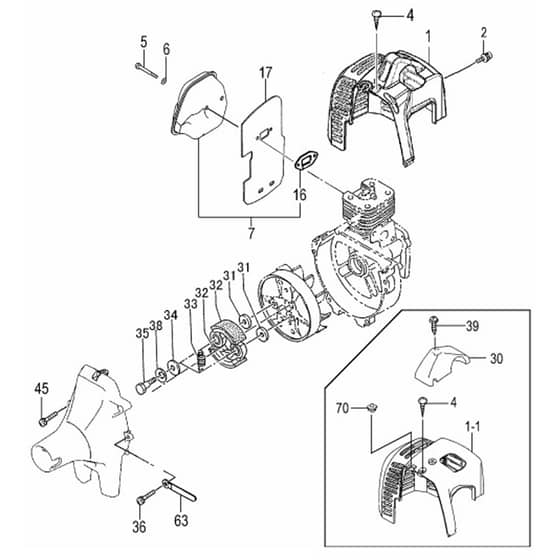

Tanaka TPH-230SS Hedge Trimmer - Engine 2 Parts Diagram

	Part No.	Details
1	TK6692809 Available to backorder	Muffler Protector	£8.23 £6.86
2	TK6695373 Available to backorder	Screw 4X15Ps	£1.78 £1.48
4	TK6684637 Available to backorder	Tapping Screw 4.5X12	£1.78 £1.48
5	TK6685114 Available to backorder	Hex. Hole Bolt 5X50	£1.78 £1.48
6	TK6684918 Available to backorder	Washer 5	£1.78 £1.48
11	TK6692798 Available to backorder	Muffler Protector 1 - C0269	£9.64 £8.03
16	TK6692745 Available to backorder	Muffler Gasket	£1.78 £1.48
17	TK6687253 In stock	Heat Shield	£3.71 £3.09
30	TK6688350 Available to backorder	Spark Plug Cover Bl	£5.38 £4.48
31	TK6684642 Available to backorder	Clutch Washer B	£1.78 £1.48
32	TK6688616 Available to backorder	Clutch Shoe Comp. T-16	£12.19 £10.16
33	TK6689430 Available to backorder	Clutch Spring	£3.58 £2.98
34	TK6689529 Available to backorder	Clutch Plate A.0.3	£1.45 £1.21
35	TK6689627 Available to backorder	Step Bolt	£1.86 £1.55
36	TK6684647 Available to backorder	Hex.Hole Bolt 5X18.Ws	£1.78 £1.48
38	TK6684648 Available to backorder	Bent Washer 8	£1.58 £1.32
39	TK6685191 Available to backorder	Tapping Screw 4.5X20 1 - C0269	£1.78 £1.48
45	TK6684973 Available to backorder	Hex.Hole Bolt 5X30.Ws	£1.78 £1.48
63	TK6688011 Available to backorder	Cord Clamp Comp.	£1.78 £1.48
70	TK6688040 Available to backorder	Grommet	£1.78 £1.48
