Tanaka TPH-230SS - H43 TPH230SS9536 - Cylinder Piston Crank Shaft

Description

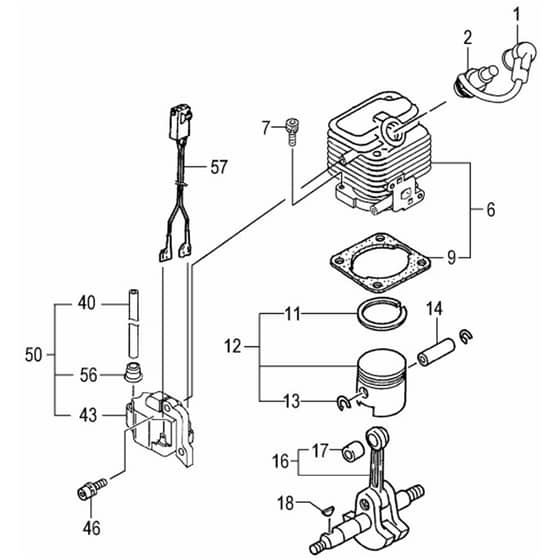

Tanaka TPH-230SS Hedge Trimmer - Cylinder Piston Crank Shaft Parts Diagram

	Part No.	Details
1	TK6687468 Available to backorder	Spark Plug Cap Ass'Y	£3.58 £2.98
2	2133 In stock	Spark Plug Rcj8Y	£3.42 £2.85
7	TK6684586 Available to backorder	Hex. Hole Bolt 5X18.S	£1.78 £1.48
9	TK6685709 Available to backorder	Cylinder Gasket	£1.78 £1.48
11	TK6686118 Available to backorder	Piston Ring	£7.16 £5.97
12	TK6685869 Available to backorder	Piston Set Spare	£27.46 £22.88
13	TK6684590 Available to backorder	Piston Pin Circlip	£1.79 £1.49
16	TK6686216 Available to backorder	Crank Shaft Comp. 1 B023801	£151.80 £126.50
16	TK6686215 Available to backorder	Crank Shaft Comp. 1 - B0238	£151.80 £126.50
17	TK6695590 Available to backorder	Needle Bearing Hk0810B	£5.38 £4.48
18	TK6684899 Available to backorder	Wood-Ruff Key 3X13X4.5 1 - B0238	£1.78 £1.48
40	TK6687888 Available to backorder	High Tension Cord 140L	£3.58 £2.98
46	TK6684682 In stock	Hex.Hole Bolt 4X15.Ps	£1.85 £1.54
56	TK6684602 Available to backorder	Rubber Cap	£1.78 £1.48
