Tanaka TPH-230S - H36 TPH230S9535 - Z063201 - Gear Case

Description

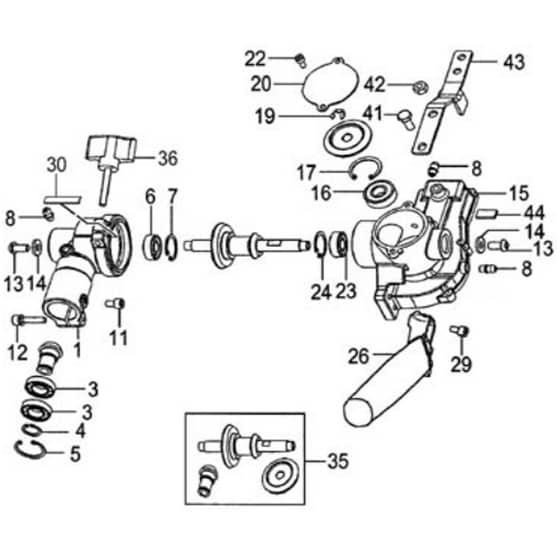

Tanaka TPH-230S Hedge Trimmer - Gear Case Parts Diagram

	Part No.	Details
1	TK6688653 Available to backorder	Gear Case 24Mm	£51.77 £43.14
3	TK6695582 Available to backorder	Ball Bearing 6901Zz 24Mm.Od	£15.74 £13.12
4	TK6695302 Available to backorder	Stop Ring S-12 Inner	£1.78 £1.48
5	TK6684732 Available to backorder	Stop Ring C-24 Inner	£1.78 £1.48
6	TK6684775 Available to backorder	Ball Bearing 608 Zz C3	£8.59 £7.16
7	TK6695293 Available to backorder	Stop Ring C-22 Inner	£1.78 £1.48
8	TK6688643 Available to backorder	Grease Nipple Comp.	£1.78 £1.48
11	TK6695042 Available to backorder	Hex. Hole Bolt 5X10	£1.62 £1.35
12	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.78 £1.48
13	TK6695078 Available to backorder	Hex. Hole Bolt 6X12	£1.78 £1.48
14	TK6684822 Available to backorder	Special Washer B	£1.78 £1.48
15	TK6695981 Available to backorder	Gear Case B	£62.04 £51.70
16	TK6695528 Available to backorder	Ball Bearing #6000 2Rs C3	£12.89 £10.74
17	TK6695294 Available to backorder	Stop Ring C-26 Inner	£1.78 £1.48
19	TK6695310 Available to backorder	Stop Ring E-6	£1.78 £1.48
20	TK6689167 Available to backorder	Gear Case Cover A	£1.78 £1.48
22	TK6695035 Available to backorder	Hex Hole Bolt 4X8	£1.78 £1.48
26	TK6688089 Available to backorder	Handle	£7.16 £5.97
29	TK6695079 Available to backorder	Hex Hole Button Screw 6X15	£1.78 £1.48
30	TK6686669 Available to backorder	Grease Seald	£1.78 £1.48
36	TK6691200 Available to backorder	Handle Knob A Comp.	£5.38 £4.48
41	TK6695016 Available to backorder	Plus Bolt 6X14	£1.78 £1.48
42	TK6684835 Available to backorder	Hex. Nut 6	£1.78 £1.48
43	TK6690744 Available to backorder	Support Plate	£18.14 £15.12
44	TK6686659 Available to backorder	Grease Seal B	£1.78 £1.48
