Tanaka TPH-230S - H36 TPH230S9535 - Crankcase

Name: Tanaka TPH-230S - H36 TPH230S9535 - Crankcase
SKU: tphh36tph230s9535tph230scrankcase-group
Price: 1.45 GBP
Availability: InStock

Part No. tphh36tph230s9535tph230scrankcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TPH-230S - H36 TPH230S9535 - Crankcase

Description

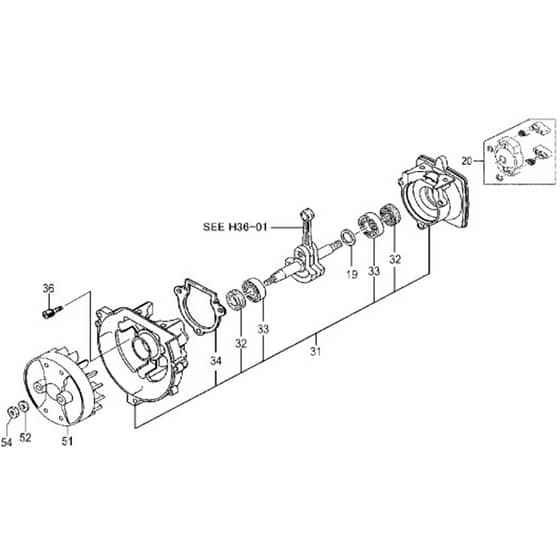

Tanaka TPH-230S Hedge Trimmer - Crankcase Parts Diagram

	Part No.	Details
19	TK6684605 Available to backorder	Gear Shaft Shim 0.30	£1.78 £1.48
19	TK6689177 Available to backorder	Gear Shaft Shim 0.10	£1.78 £1.48
19	TK6684604 Available to backorder	Gear Shaft Shim 0.20	£1.78 £1.48
19	TK6689178 Available to backorder	Gear Shaft Shim 0.15	£1.78 £1.48
20	TK6693408 Available to backorder	Starter Pulley Ass'Y	£44.54 £37.12
32	TK6684607 Available to backorder	Oil Seal Tb 12227	£3.61 £3.01
33	TK6684608 Available to backorder	Ball Bearing 6001 C3	£7.16 £5.97
34	TK6686719 Available to backorder	Crank Case Gasket	£1.74 £1.45
36	TK6684586 Available to backorder	Hex. Hole Bolt 5X18.S	£1.78 £1.48
51	TK6601171 Available to backorder	Magneto Rotor Comp. 1 B023901	£58.68 £48.90
51	TK6687376 Available to backorder	Magneto Rotor Comp 1 - B0239	£28.16 £23.47
52	TK6684611 Available to backorder	Washer 8	£1.78 £1.48
54	TK6684612 Available to backorder	Hex. Nut 8	£1.78 £1.48
