Tanaka TPH-2211 - H21 TPH22119538 - Operation Pipe

Name: Tanaka TPH-2211 - H21 TPH22119538 - Operation Pipe
SKU: tphh21tph22119538tph2211operationpipe-group
Price: 1.48 GBP
Availability: InStock

Part No. tphh21tph22119538tph2211operationpipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TPH-2211 - H21 TPH22119538 - Operation Pipe

Description

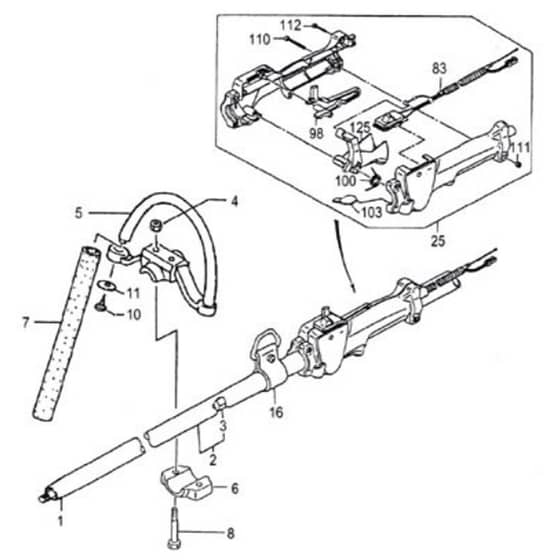

Tanaka TPH-2211 Hedge Trimmer - Operation Pipe Parts Diagram

	Part No.	Details
1	TK6689440 Available to backorder	Drive Shaft 978L	£21.96 £18.30
2	TK6689305 Available to backorder	Drive Shaft Pipe Comp. 945L	£49.45 £41.21
3	TK6689521 Available to backorder	Bushing Ass'Y	£3.58 £2.98
4	TK6684835 Available to backorder	Hex. Nut 6	£1.78 £1.48
5	TK6691046 Available to backorder	Loop Handle 24 Dia. Black	£9.29 £7.74
6	TK6691134 Available to backorder	Handle Bracket A	£3.58 £2.98
7	TK6691098 Available to backorder	Handle Grip	£10.37 £8.64
8	TK6684838 Available to backorder	Bolt 6X43.P	£1.78 £1.48
11	TK6689681 Available to backorder	Brake Shaft Washer	£1.78 £1.48
16	TK6689277 Available to backorder	Lifting Metal Ass'Y	£5.38 £4.48
25	TK6693756 Available to backorder	Throttle Lever Ass'Y 24 Dia.	£60.24 £50.20
83	TK6693968 Available to backorder	Throttle Wire Comp.	£34.22 £28.52
98	TK6684721 Available to backorder	Safety Lever	£5.38 £4.48
100	TK6684722 Available to backorder	Return Spring	£1.78 £1.48
103	TK6684724 Available to backorder	Blind Plug	£1.78 £1.48
110	TK6684803 Available to backorder	Screw 5X20	£1.78 £1.48
111	TK6684727 Available to backorder	Contal Nut 5	£1.78 £1.48
112	TK6684725 Available to backorder	Screw 4X20 Black	£1.78 £1.48
125	TK6684804 Available to backorder	Throttle Lever	£7.16 £5.97
