Tanaka TPH-2211 - H21 TPH22119538 - Carburettor

Name: Tanaka TPH-2211 - H21 TPH22119538 - Carburettor
SKU: tphh21tph22119538tph2211carburetr-group
Price: 1.42 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TPH-2211 - H21 TPH22119538 - Carburettor

Description

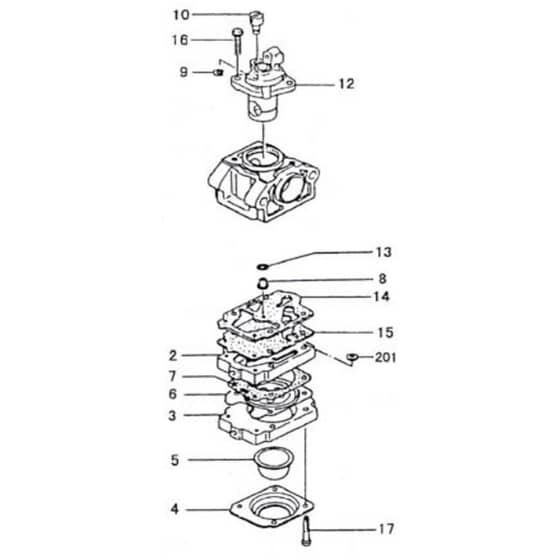

Tanaka TPH-2211 Hedge Trimmer - Carburettor Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	TK6684879 Available to backorder	Pump Body Comp	£57.14 £47.62
3	TK6684687 Available to backorder	Priming Pump Comp.	£14.52 £12.10
4	TK6684688 Available to backorder	Diaphragm Cover	£6.92 £5.77
5	TK6684689 Available to backorder	Priming Body	£7.82 £6.52
7	TK6684691 Available to backorder	Diaphragm Gasket	£6.92 £5.77
8	TK6684878 Available to backorder	Main Jet #39	£6.02 £5.02
9	TK6684696 Available to backorder	Stop Ring	£1.72 £1.43
10	TK6684697 Available to backorder	Swivel	£5.20 £4.33
12	TK6684883 Available to backorder	Throttle Valve Comp.	£31.43 £26.19
13	TK6684695 Available to backorder	O-Ring	£3.46 £2.88
14	TK6691457 Available to backorder	Pump Gasket	£9.60 £8.00
15	TK6684693 Available to backorder	Pump Diaphragm	£6.92 £5.77
16	TK6684698 Available to backorder	Throttle Set Screw	£3.04 £2.53
17	TK6684699 Available to backorder	Set Screw	£1.70 £1.42
201	TK6684700 Available to backorder	Inlet Screen	£3.46 £2.88
