Tanaka TIA-350PFS - Engine 1

Name: Tanaka TIA-350PFS - Engine 1
SKU: tiatia350pfsengine1-group
Price: 1.48 GBP
Availability: InStock

Part No. tiatia350pfsengine1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

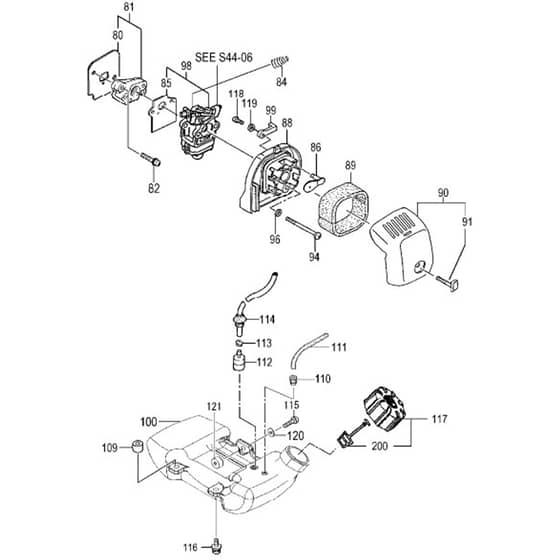

Tanaka TIA-350PFS Auger - Engine 1 Parts Diagram

	Part No.	Details
80	TK6689895 Available to backorder	Inlet Manifold Gasket	£1.78 £1.48
81	TK6689972 Available to backorder	Insulator Set	£10.03 £8.36
82	TK6695515 Available to backorder	Hex. Hole Bolt 5X25Ws	£1.78 £1.48
84	TK6694055 Available to backorder	Wire Return Spring	£1.78 £1.48
85	TK6684616 Available to backorder	Carburetor Gasket	£1.78 £1.48
86	TK6691276 Available to backorder	Choke Plate 2.0	£1.78 £1.48
88	TK6690120 Available to backorder	Cleaner Body Comp.	£7.16 £5.97
89	TK6690365 In stock	Cleaner Sponge	£1.88 £1.57
90	TK6690402 Available to backorder	Cleaner Cover Ass'Y	£16.34 £13.62
91	TK6698730 In stock	Cover Fixing Bolt	£4.27 £3.56
94	TK6695056 Available to backorder	Hex. Hole Bolt 5X55	£1.78 £1.48
95	TK6684662 Available to backorder	S.Washer 5	£1.78 £1.48
96	TK6684864 Available to backorder	Small Washer 5	£1.78 £1.48
98	TK6690516 Available to backorder	Carburetor Set Wyj	£105.60 £88.00
99	TK6691239 Available to backorder	Choke Control Lever	£1.78 £1.48
100	TK6691597 Available to backorder	Tank Wht	£15.94 £13.28
109	TK6692244 Available to backorder	Collar 5.8	£1.78 £1.48
112	TK6684620 Available to backorder	Pump Filter Body Comp.	£7.58 £6.32
115	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.78 £1.48
116	TK6695504 Available to backorder	Hex.Hole Bolt 5X16.Ps	£1.79 £1.49
117	TK6685049 In stock	Tank Cap Ass'Y (Black)	£11.64 £9.70
118	TK6695280 Available to backorder	Tap Screw 4X14 P	£1.78 £1.48
119	TK6685070 Available to backorder	Washer 4	£1.78 £1.48
120	TK6684918 Available to backorder	Washer 5	£1.78 £1.48
121	TK6692183 Available to backorder	Tank Fixing Collar	£1.78 £1.48
200	TK6692059 Available to backorder	Tank Cap Chain	£1.78 £1.48
