Tanaka TIA-350PFS - Carburettor

Part No. tiatia350pfscarburetr-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TIA-350PFS - Carburettor

Tanaka TIA-350PFS - Carburettor

Description

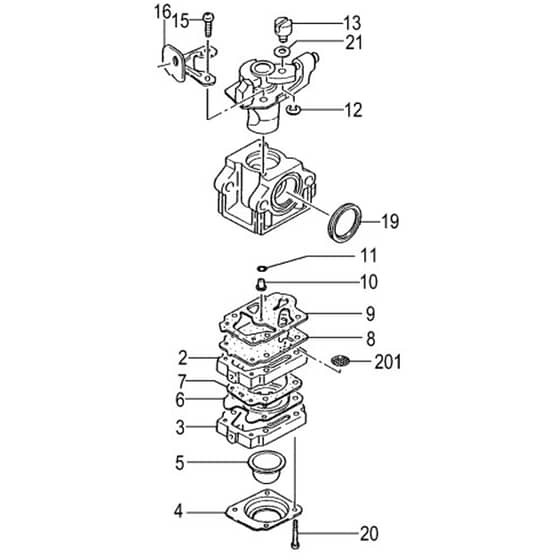

Tanaka TIA-350PFS Auger - Carburettor Parts Diagram

Ref.		Img.	Part No.	Details
	2		TK6684879 Available to backorder	Pump Body Comp		£57.14 £47.62
	3		TK6684687 Available to backorder	Priming Pump Comp.		£15.02 £12.52
	4		TK6684688 Available to backorder	Diaphragm Cover		£7.16 £5.97
	5		TK6684689 In stock	Priming Body		£7.63 £6.36
	6		TK6690830 Available to backorder	Metering Diaphragm		£15.80 £13.17
	7		TK6684691 In stock	Diaphragm Gasket		£7.43 £6.19
	8		TK6684693 In stock	Pump Diaphragm		£7.43 £6.19
	9		TK6691457 Available to backorder	Pump Gasket		£11.42 £9.52
	10		TK6691874 Available to backorder	Long Main Jet #38		£12.77 £10.64
	11		TK6684695 Available to backorder	O-Ring		£3.58 £2.98
	12		TK6684696 Available to backorder	Stop Ring		£1.78 £1.48
	13		TK6684697 Available to backorder	Swivel		£5.38 £4.48
	15		TK6684870 Available to backorder	Throttle Set Screw		£1.78 £1.48
	16		TK6684873 Available to backorder	Cable Adjuster Stay		£5.38 £4.48
	17		TK6684872 Available to backorder	Cable Adjust Nut		£1.78 £1.48
	18		TK6684871 Available to backorder	Cable Adjuster		£3.58 £2.98
	19		TK6684875 Available to backorder	Cleaner Packing		£3.58 £2.98
	20		TK6684699 In stock	Set Screw		£1.78 £1.48
	21		TK6684874 Available to backorder	Thrust Washer		£1.78 £1.48
	201		TK6684700 Available to backorder	Inlet Screen		£3.58 £2.98

Description

Tanaka TIA-350PFS Auger - Carburettor Parts Diagram
