Tanaka TIA-340-9526 - Cylinder Piston Crankshaft

Tanaka TIA-340-9526 - Cylinder Piston Crankshaft

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TIA-340-9526 - Cylinder Piston Crankshaft

Tanaka TIA-340-9526 - Cylinder Piston Crankshaft

Description

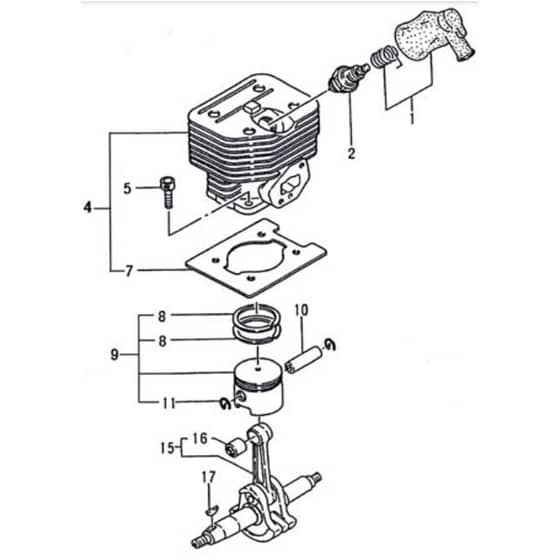

Tanaka TIA-340-9526 Auger - Cylinder Piston Crankshaft Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		TK6687468 Available to backorder	Spark Plug Cap Ass'Y		£3.46 £2.88
	2		6521 In stock	Spark Plug Bmr7A		£3.47 £2.89
	5		TK6684586 Available to backorder	Hex. Hole Bolt 5X18.S		£1.73 £1.44
	7		TK6685715 Available to backorder	Cylinder Gasket		£1.40 £1.17
	8		TK6686119 Available to backorder	Piston Ring		£6.02 £5.02
	10		TK6686008 Available to backorder	Piston Pin		£3.04 £2.53
	11		TK6685078 Available to backorder	Piston Pin Circlip		£1.70 £1.42
	15		TK6686159 Available to backorder	Crank Shaft Comp.		£97.40 £81.17
	16		TK6695592 Available to backorder	Needle Brg F-910 1.4X8.5		£10.28 £8.57
	17		TK6684899 Available to backorder	Wood-Ruff Key 3X13X4.5		£1.70 £1.42

Description

Tanaka TIA-340-9526 Auger - Cylinder Piston Crankshaft Parts Diagram
