Tanaka THT-2530-2540 - Gear Case

Name: Tanaka THT-2530-2540 - Gear Case
SKU: thttht25302540gearcase-group
Price: 0.29 GBP
Availability: InStock

Part No. thttht25302540gearcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Tanaka THT-2530-2540 Hedge Trimmer - Gear Case Parts Diagram

	Part No.	Details
1	TK6688672 Available to backorder	Gear Case A	£62.04 £51.70
2	TK6695294 Available to backorder	Stop Ring C-26 Inner	£1.78 £1.48
3	TK6695524 Available to backorder	Ball Bearing #6000 2	£8.98 £7.48
4	TK6695526 Available to backorder	Ball Bearing #6000Z 2	£10.03 £8.36
5	TK6688571 Available to backorder	Clutch Housing Comp.	£30.71 £25.59
6	TK6688968 Available to backorder	Gear 1 1 C024001	£34.22 £28.52
6	TK6688967 Available to backorder	Gear 1 1 - C0240	£35.69 £29.74
7	TK6688975 Available to backorder	Gear 2 1 - C0240	£28.06 £23.38
7	TK6688978 Available to backorder	Gear 2 1 C024001	£25.31 £21.09
8	TK6686810 Available to backorder	Cam-Rod Comp.	£60.72 £50.60
9	TK6686791 Available to backorder	Cam Shaft	£77.64 £64.70
10	TK6688910 Available to backorder	Gear Case Gasket	£1.78 £1.48
11	TK6684738 Available to backorder	Ball Bearing #608 22M	£7.16 £5.97
19	TK6688293 Available to backorder	Collar	£5.38 £4.48
21	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.78 £1.48
22	TK6688643 Available to backorder	Grease Nipple Comp.	£1.78 £1.48
23	TK6695495 Available to backorder	Hex. Hole Bolt 6X18.S	£1.78 £1.48
26	TK6695079 Available to backorder	Hex Hole Button Screw	£1.78 £1.48
27	TK6695183 Available to backorder	Small Washer 6	£1.78 £1.48
29	TK6686467 Available to backorder	Fixing Plate	£3.58 £2.98
30	TK6690758 Available to backorder	Support Plate	£3.58 £2.98

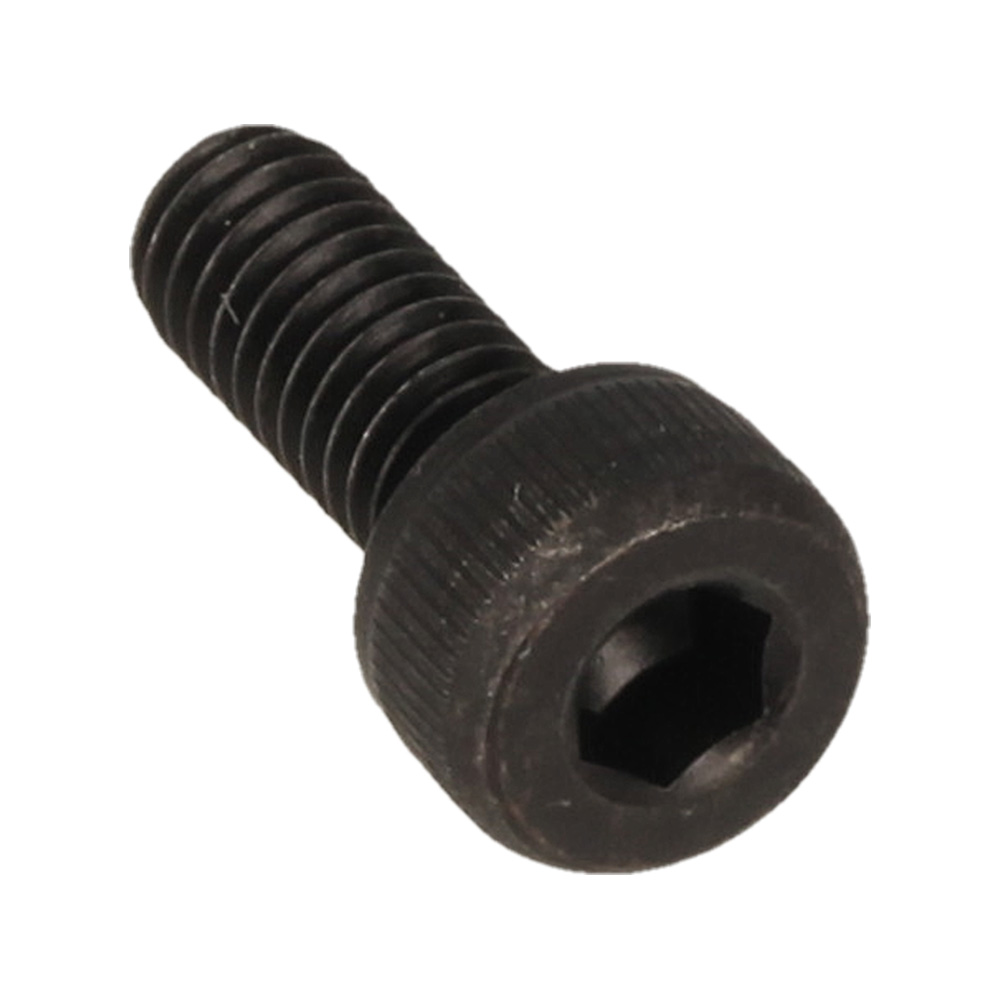

31	TK6697444 Available to backorder	Hex. Hole Bolt 4X10	£0.35 £0.29
43	TK6695475 Available to backorder	Spring Nut 6	£1.78 £1.48
71	TK6695219 Available to backorder	S.Washer 6 2 - A1383	£1.78 £1.48
