Tanaka THT-2520SA - Main Assembly

Name: Tanaka THT-2520SA - Main Assembly
SKU: thttht2520samain-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

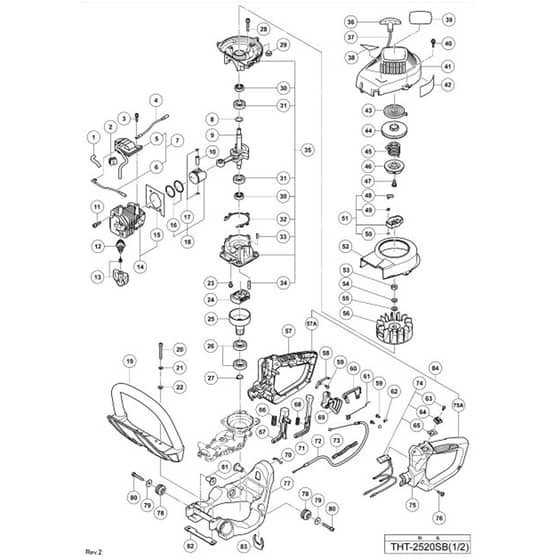

Tanaka THT-2520SA Hedge Trimmer - Main Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6684597 Available to backorder	Insulator Tube 50L	£1.70 £1.42
2	TK6688050 Available to backorder	Grommet	£1.70 £1.42
3	TK6684599 Available to backorder	Hex.Hole Bolt M4X18.Ws	£1.73 £1.44
8	TK6684604 Available to backorder	Gear Shaft Shim 0.20	£1.70 £1.42
8	TK6684605 Available to backorder	Gear Shaft Shim 0.30	£1.70 £1.42
9	TK6686205 Available to backorder	Crank Shaft Comp.	£97.40 £81.17
10	TK6684591 Available to backorder	Piston Pin	£3.20 £2.67
11	TK6684586 Available to backorder	Hex.Hole Bolt M5X18.S	£1.73 £1.44
12	2133 In stock	Spark Plug Bpmr6A	£3.22 £2.68
13	TK6687476 Available to backorder	Spark Plug Cap	£6.02 £5.02
14	TK6685481 Available to backorder	Cylinder Ass'Y 1 Includ.	£59.56 £49.63

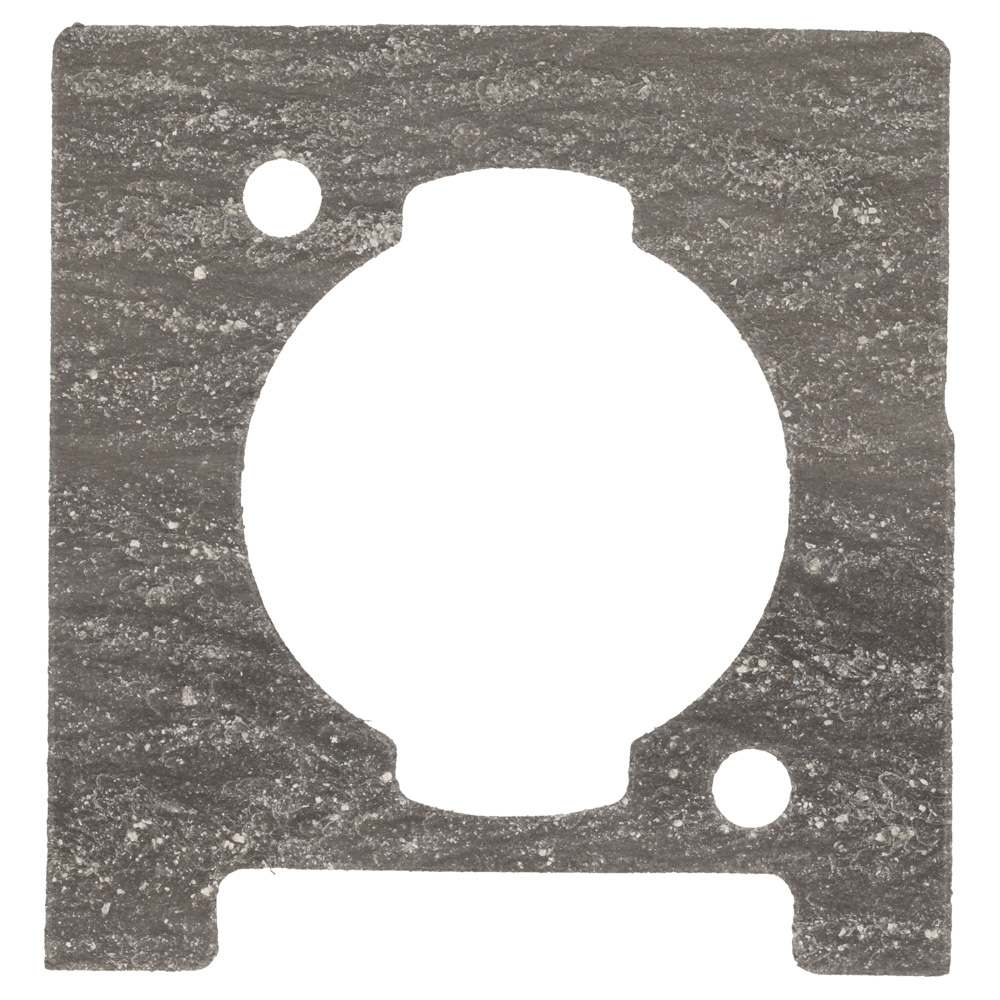

15	TK6685744 Available to backorder	Cylinder Gasket	£1.72 £1.43
16	TK6684588 Available to backorder	Piston Ring	£6.02 £5.02
17	TK6686028 Available to backorder	Piston Pin Circlip	£1.70 £1.42
18	TK6685893 Available to backorder	Piston Ass'Y 1 Includ.16.	£33.08 £27.57
19	TK6699079 Available to backorder	Handle	£8.24 £6.87
20	TK6695054 Available to backorder	Hex. Hole Bolt 5X40	£1.73 £1.44
21	TK6684834 Available to backorder	Spring Washer 5	£1.73 £1.44
22	TK6684918 Available to backorder	Washer M5 (Black)	£1.73 £1.44
23	TK6695441 Available to backorder	Bolt 4X12Ps	£1.73 £1.44
25	TK6688570 Available to backorder	Clutch Drum Comp.	£26.04 £21.70
26	TK6695538 Available to backorder	Ball Bearing #6002Z. 32Mm.Od	£10.28 £8.57
27	TK6695285 Available to backorder	Stop Ring C-15. Outer	£1.73 £1.44
28	TK6684786 In stock	Hex. Socket Hd. Bolt M5X30 S	£1.72 £1.43
29	TK6691822 Available to backorder	Anti-Vibe Rubber	£1.70 £1.42
30	TK6684607 In stock	Oil Seal Tb 12227	£3.62 £3.02
31	TK6684608 Available to backorder	Ball Bearing 6001 C3	£6.92 £5.77
32	TK6686720 Available to backorder	Crank Case Gasket	£1.70 £1.42
34	TK6686771 Available to backorder	Stud Bolt 6X22	£1.70 £1.42
35	TK6686574 Available to backorder	Crank Case Ass'Y 1 Includ.30-	£56.84 £47.37
37	TK6693172 Available to backorder	Rope 3X890	£3.47 £2.89
40	TK6695502 Available to backorder	Hex.Hole Bolt 4X18Ps	£1.73 £1.44
43	TK6684675 Available to backorder	Recoil Spring	£8.44 £7.03
44	TK6693072 Available to backorder	Starter Rope Reel	£7.96 £6.63
45	TK6684677 Available to backorder	Dumper Spring	£6.24 £5.20
47	TK6684679 Available to backorder	Set Screw	£1.73 £1.44
49	TK6684684 Available to backorder	Starter Pawl Spring	£3.46 £2.88
50	TK6684683 Available to backorder	Stop Ring E-5	£1.73 £1.44
51	TK6684681 Available to backorder	Starter Pulley Ass'Y 1 Includ.48-	£9.68 £8.07
52	TK6687209 Available to backorder	Deflector	£8.72 £7.27
53	TK6684612 Available to backorder	Hex.Nut M8	£1.73 £1.44
54	TK6684971 Available to backorder	S.Washer 8	£1.73 £1.44
55	TK6684611 Available to backorder	Bolt Washer M8	£1.73 £1.44
56	TK6687389 Available to backorder	Magneto Rotor Comp.	£39.04 £32.53
57	TK6698868 Available to backorder	(57A) Handle A	£6.35 £5.29
58	TK6696350 Available to backorder	Earth Terminal	£1.34 £1.12
61	TK6696345 Available to backorder	Throttle Lever Spring	£1.70 £1.42
62	TK6696355 Available to backorder	Tab Terminal	£1.34 £1.12
63	TK6684913 Available to backorder	Screw 3X10	£1.72 £1.43
64	TK6697453 Available to backorder	Button Stop	£1.54 £1.28
65	TK6694588 Available to backorder	Stop Button Mark	£1.73 £1.44
66	TK6696348 Available to backorder	Spring (A)	£1.70 £1.42
67	TK6696346 Available to backorder	Lock Lever	£1.70 £1.42
68	TK6696349 Available to backorder	Spring (B)	£1.70 £1.42
69	TK6696343 Available to backorder	Throttle Lever	£1.70 £1.42
70	TK6698784 Available to backorder	Click Spring	£2.87 £2.39
71	TK6696347 Available to backorder	Release Lever	£1.70 £1.42

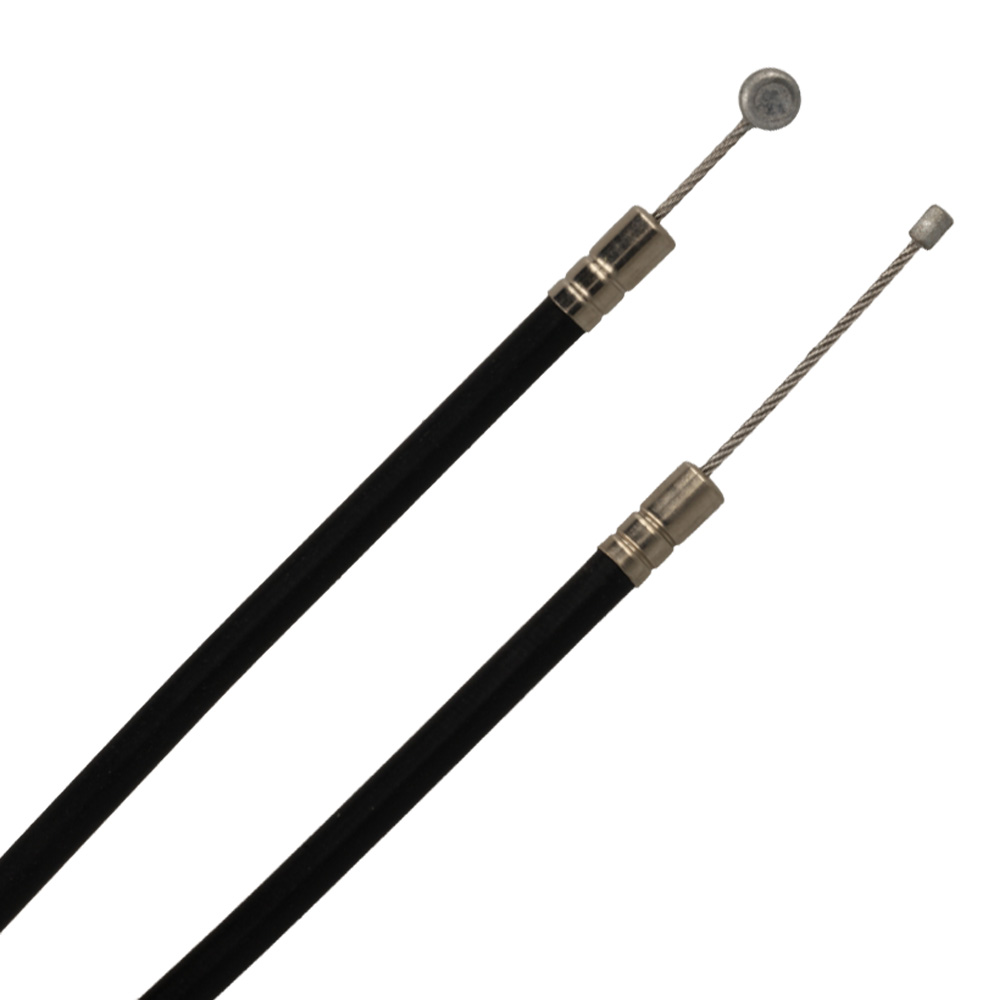

72	TK6698828 Available to backorder	Throttle Wire	£3.98 £3.32
73	TK6687524 Available to backorder	Protection Tube 150L	£1.70 £1.42
74	TK6696354 Available to backorder	Stop Switch Ass'Y (A) 1 Includ.63-	£19.22 £16.02
75	TK6698869 Available to backorder	(75A) Handle B	£5.76 £4.80
76	TK305812 Available to backorder	Tapping Screw (W.Flange) D4X16 (Black)	£2.10 £1.75
77	TK6696363 Available to backorder	Frame	£11.68 £9.73
78	TK6688412 Available to backorder	Damper B	£1.62 £1.35
79	TK6689680 Available to backorder	Brake Shaft Washer	£1.70 £1.42
81	TK6688485 Available to backorder	Damper Collar B	£1.70 £1.42
82	TK6686111 Available to backorder	Handle Support Comp.	£3.04 £2.53
83	TK6691122 Available to backorder	Clip	£1.70 £1.42
84	TK6698870 Available to backorder	Handle A.B Set	£7.20 £6.00
