Tanaka THT-2520SA Hedge Trimmer - Blade Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
91	TK6684636 Available to backorder	Tapping Screw D4.5X16	£1.73 £1.44
92	TK6692799 Available to backorder	Muffler Protector	£8.68 £7.23
93	TK6685114 Available to backorder	Hex. Socket Hd. Bolt M5X50	£1.73 £1.44
94	TK6684661 Available to backorder	Washer 5	£1.73 £1.44
95	TK6692477 Available to backorder	Muffler Ass'Y 1 Includ.	£20.30 £16.92
96	TK6687252 Available to backorder	Heat Shield	£3.07 £2.56
97	TK6692744 Available to backorder	Muffler Gasket	£1.54 £1.28
98	TK6689891 Available to backorder	Intake Pipe Gasket	£1.72 £1.43
99	TK6689966 Available to backorder	Carb. Insulator Set.Spare 1 Includ.	£10.72 £8.93
100	TK6695515 Available to backorder	Hex. Hole Bolt 5X25Ws	£1.73 £1.44
101	TK6689839 In stock	Carburetor Gasket	£1.72 £1.43
102	TK6690487 Available to backorder	Carburetor Set. Wyl120 1 Includ.101.115-1	£122.89 £102.41
103	TK6691337 Available to backorder	Swivel Cap	£1.72 £1.43
104	TK6698966 Available to backorder	O-Ring P-15	£1.73 £1.44
105	TK6690119 Available to backorder	Cleaner Body Comp.	£6.02 £5.02
106	TK6690804 Available to backorder	Collar 7.5	£1.70 £1.42
107	TK6691274 Available to backorder	Choke Valve	£3.04 £2.53
108	TK6684658 Available to backorder	Wave Washer 8	£1.73 £1.44
109	TK6690843 Available to backorder	Blow Over Check Board	£1.70 £1.42
110	TK6684662 Available to backorder	S.Washer 5	£1.73 £1.44
111	TK6684660 Available to backorder	Screw M5X60	£1.73 £1.44
112	TK6690364 In stock	Cleaner Sponge	£1.72 £1.43
113	TK6690417 Available to backorder	Cleaner Cover Ass'Y 1 Includ.1	£8.10 £6.75
114	TK6689737 Available to backorder	Special Screw	£1.70 £1.42
115	TK6684697 Available to backorder	Swivel	£5.20 £4.33
116	TK6684696 Available to backorder	Stop Ring	£1.72 £1.43
117	TK6684695 Available to backorder	O-Ring	£3.46 £2.88
118	TK6691888 Available to backorder	Main Jet #34.5	£8.45 £7.04
119	TK6684700 Available to backorder	Inlet Screen	£3.46 £2.88
120	TK6691430 Available to backorder	Pump Body Comp.	£54.08 £45.07
121	TK6685222 Available to backorder	Diaphragm Cover-Metering	£6.92 £5.77
122	TK6691312 Available to backorder	Set Screw	£1.70 £1.42
123	TK6684698 Available to backorder	Throttle Set Screw	£3.04 £2.53
124	TK6684883 Available to backorder	Throttle Valve	£31.43 £26.19
125	TK6691457 Available to backorder	Pump Gasket	£9.60 £8.00
126	TK6684693 Available to backorder	Pump Diaphragm	£6.92 £5.77
127	TK6685220 Available to backorder	Diaphragm Packing-Metering	£3.46 £2.88
129	TK6685139 In stock	Priming Pump Comp.	£7.14 £5.95
130	TK6685267 In stock	Fuel Pipe 2.5X4X80	£1.72 £1.43
131	TK6692244 Available to backorder	Collar 5.8	£1.74 £1.45
134	TK6691389 Available to backorder	Air Vent Ass'Y 1 Includ.135.136 For A	£15.80 £13.17
140	TK6684620 In stock	Pump Filter Body Comp.	£8.16 £6.80
141	TK6685247 Available to backorder	Shield Tube	£7.68 £6.40
142	TK6692059 Available to backorder	Tank Cap Chain	£1.73 £1.44
143	TK6691714 Available to backorder	Tank Cap Ass'Y 1 Includ.142 For A	£6.02 £5.02
144	TK6687275 In stock	Guard Plate	£3.46 £2.88
145	TK6697440 Available to backorder	Flange Nut 6	£0.32 £0.27
147	TK6687289 Available to backorder	Protection Plate	£17.45 £14.54
148	TK6690762 Available to backorder	Support Plate	£4.55 £3.79
149	TK6695175 Available to backorder	Lock Nut 6 Ups-P	£1.73 £1.44
150	TK6697455 Available to backorder	Bolt Washer 6	£0.36 £0.30

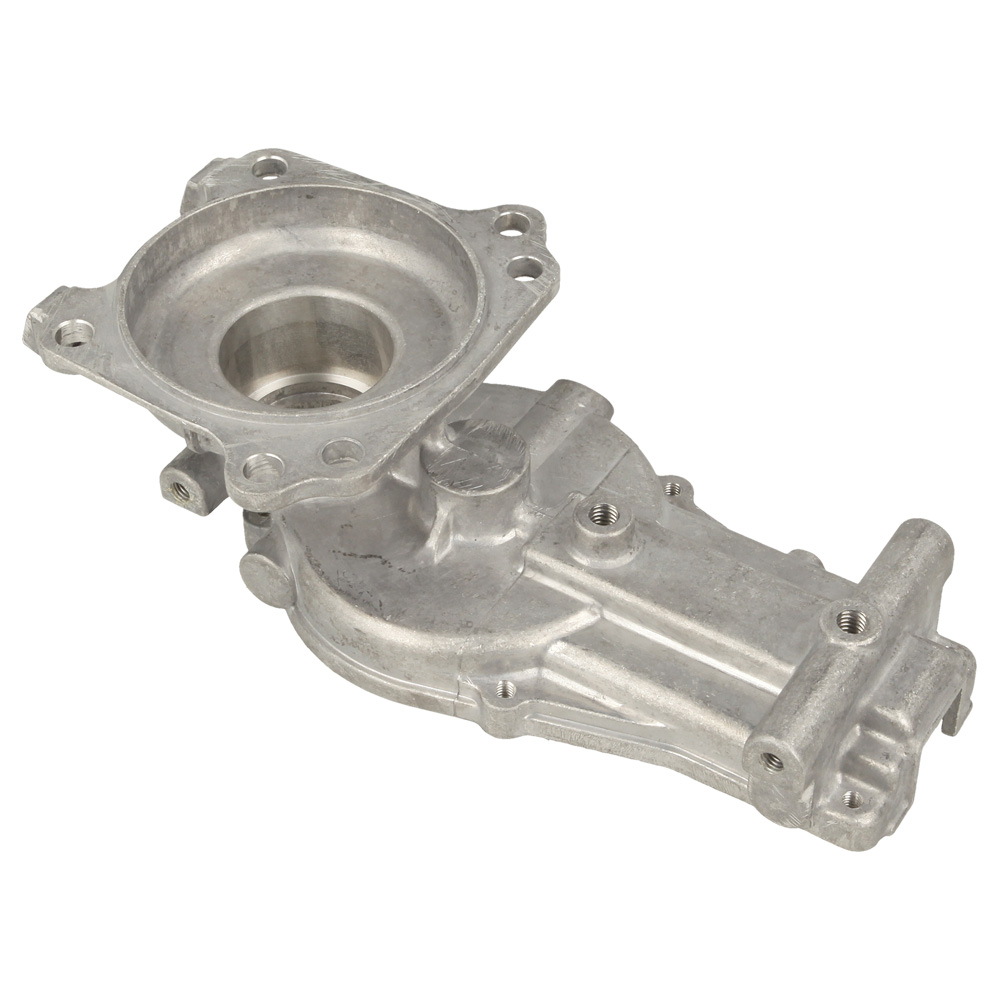

151	TK6688684 Available to backorder	Gear Case Comp.	£25.94 £21.62
152	TK6688643 Available to backorder	Grease Nipple Comp.	£1.70 £1.42
153	TK6695475 Available to backorder	Spring Nut 6	£1.73 £1.44
154	TK6695495 Available to backorder	Hex. Hole Bolt 6X18.S	£1.73 £1.44
155	TK6687144 Available to backorder	Cutter Guide 845L M6	£44.82 £37.35
156	TK6686612 Available to backorder	Guide Plate	£1.72 £1.43
157	TK6686811 Available to backorder	Cam Rod	£8.98 £7.48

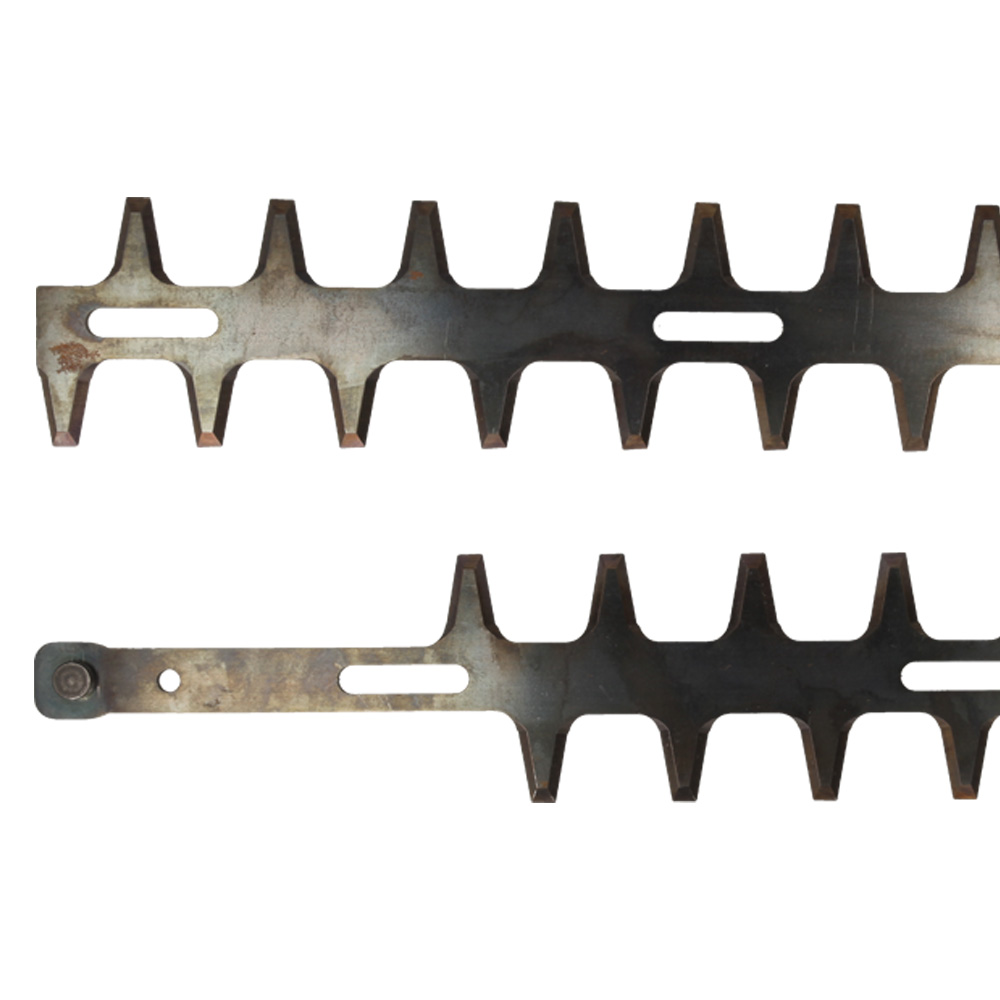

158	TK6687092 Available to backorder	Cutter A (812L)	£77.46 £64.55
159	TK6688625 Available to backorder	Gear 2 Comp.	£45.08 £37.57
160	TK6688909 In stock	Gear Case Gasket	£1.72 £1.43
161	TK6692101 Available to backorder	Gear Case Cover	£8.45 £7.04
162	TK6684775 Available to backorder	Ball Bearing 608 Zz C3	£8.30 £6.92
164	TK6697445 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M4X12	£0.44 £0.37
165	TK6695075 Available to backorder	Hex. Hole Flush Bolt 6X25	£1.72 £1.43
166	TK6686654 In stock	Grease Seal A	£1.72 £1.43
167	TK6687187 In stock	Washer 7 Black	£1.44 £1.20
168	TK6697449 Available to backorder	Fixing Bolt A M6	£1.06 £0.88
169	TK6697446 In stock	Hex. Hole Bolt 4X10S	£0.44 £0.37
