Tanaka THT-2520-B - A026601 - Gear Case Blade

Name: Tanaka THT-2520-B - A026601 - Gear Case Blade
SKU: thttht2520ba026601gearcaseblade-group
Price: 0.27 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka THT-2520-B - A026601 - Gear Case Blade

Description

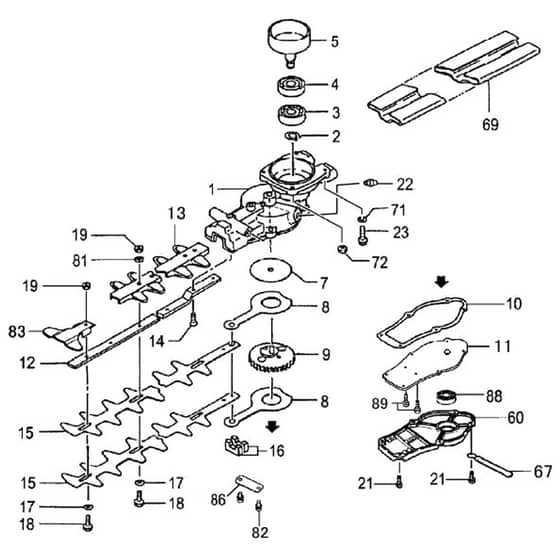

Tanaka THT-2520-B Hedge Trimmer - Gear Case Blade Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6688676 Available to backorder	Gear Case Comp	£51.77 £43.14
2	TK6695285 Available to backorder	Stop Ring C-15 Outer	£1.73 £1.44
3	TK6697745 Available to backorder	Ball Bearing #6002 32Mm.Od	£11.50 £9.58
4	TK6695538 Available to backorder	Ball Bearing #6002Z 32Mm.Od	£10.28 £8.57
5	TK6688570 Available to backorder	Clutch Drum Comp.	£26.04 £21.70
7	TK6686612 Available to backorder	Guide Plate	£1.72 £1.43
8	TK6686811 Available to backorder	Cam Rod	£8.98 £7.48
9	TK6688625 Available to backorder	Gear 2 Comp.	£45.08 £37.57
10	TK6688909 In stock	Gear Case Gasket	£1.72 £1.43
11	TK6692101 Available to backorder	Gear Case Cover	£8.45 £7.04
12	TK6687144 Available to backorder	Cutter Guide 845L M6	£44.82 £37.35
13	TK6687289 Available to backorder	Protection Plate	£17.45 £14.54
15	TK6687092 Available to backorder	Cutter A (812L)	£77.46 £64.55
16	TK6686654 In stock	Grease Seal A	£1.72 £1.43
17	TK6687187 In stock	Washer 7 Black	£1.44 £1.20
18	TK6697449 Available to backorder	Fixing Bolt A M6	£1.06 £0.88
19	TK6697440 Available to backorder	Flange Nut 6	£0.32 £0.27
20	TK6697445 Available to backorder	Hex. Hole Bolt 4X12S	£0.44 £0.37
22	TK6688643 Available to backorder	Grease Nipple Comp.	£1.70 £1.42
23	TK6695495 Available to backorder	Hex. Hole Bolt 6X18.S	£1.73 £1.44
60	TK6695987 Available to backorder	Gear Case B	£14.18 £11.82
67	TK6688011 Available to backorder	Cord Clamp Comp.	£1.70 £1.42
71	TK6695219 Available to backorder	S.Washer 6 2 - A0880	£1.73 £1.44
72	TK6695475 Available to backorder	Spring Nut 6	£1.73 £1.44

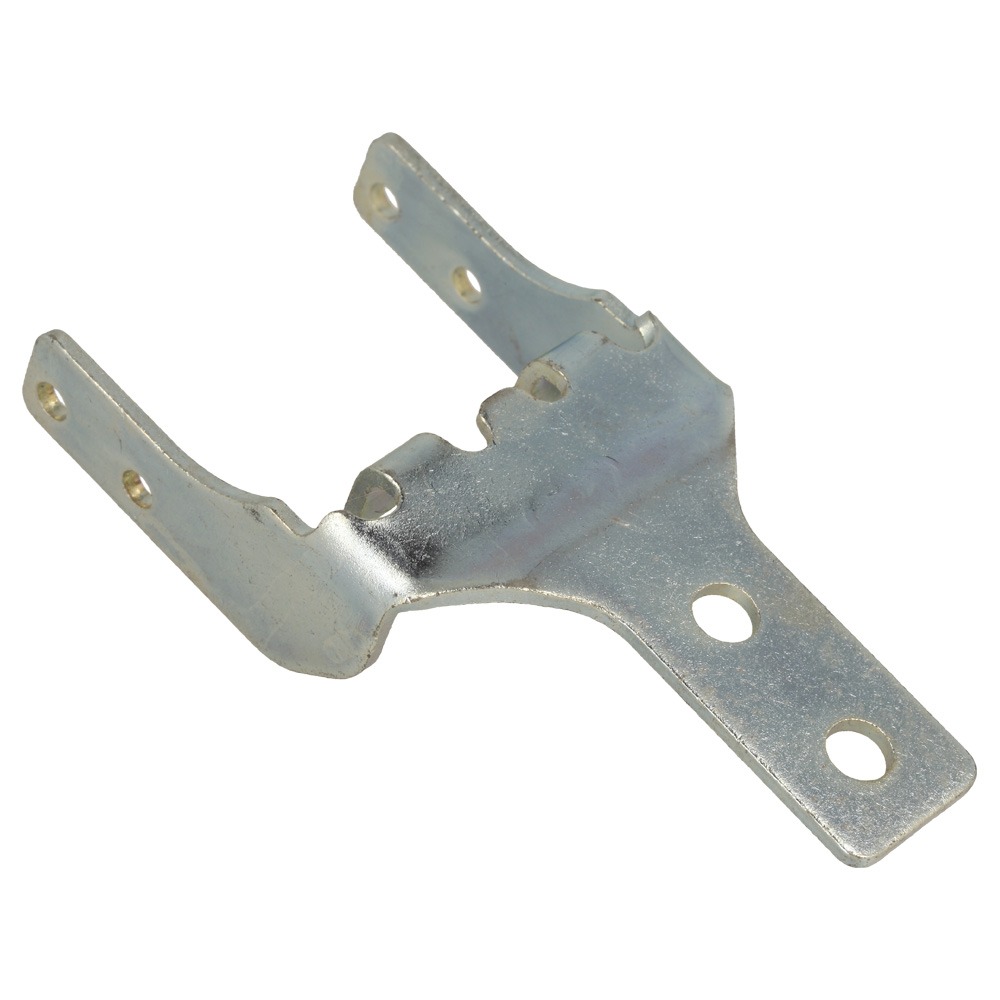

77	TK6690759 Available to backorder	Support Plate	£16.24 £13.53
78	TK6697446 In stock	Hex. Hole Bolt 4X10S	£0.44 £0.37
82	TK6687275 In stock	Guard Plate	£3.46 £2.88
88	TK6684775 Available to backorder	Ball Bearing 608 Zz C3	£8.30 £6.92
