Tanaka THT-2100-S - Engine 2 (S-Start)

Description

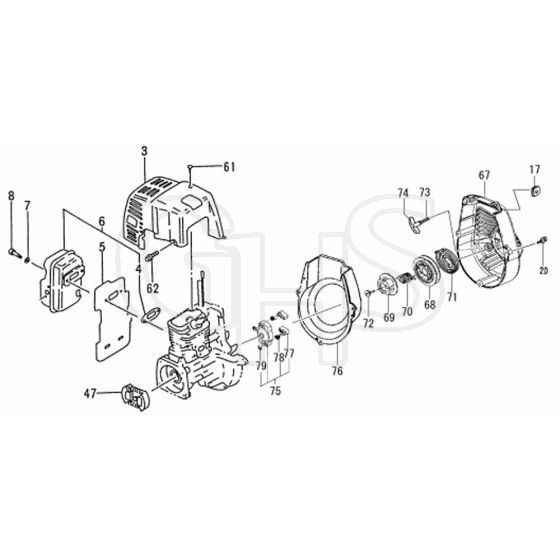

Tanaka THT-2100-S Hedge Trimmer - Engine 2 (S-Start) Parts Diagram

	Part No.	Details
3	TK6692795	Muffler Protector	Out of stock	£11.09 £9.24
4	TK6692744	Muffler Gasket	Out of stock	£1.73 £1.44
5	TK6687252	Heat Shield	Out of stock	£3.14 £2.62
7	TK6684661	Washer 5	Out of stock	£1.73 £1.44
8	TK6685114	Hex. Hole Bolt 5X50	Out of stock	£1.73 £1.44
17	TK6688050	Grommet	Out of stock	£1.76 £1.47
20	TK6695502	Hex.Hole Bolt 4X18Ps	Out of stock	£1.73 £1.44
47	TK6688494	Clutch A'Ssy	Out of stock	£13.25 £11.04
61	TK6684636	Tapping Screw 4.5X16	Out of stock	£1.73 £1.44
62	TK6695441	Bolt 4X12Ps	Out of stock	£1.73 £1.44
67	TK6687014	Fan Case Comp.	Out of stock	£25.26 £21.05
68	TK6693072	Starter Pully	Out of stock	£7.97 £6.64
70	TK6684677	Dumper Spring	Out of stock	£6.24 £5.20
71	TK6684675	Recoil Spring	In stock	£9.12 £7.60
72	TK6684679	Set Screw	Out of stock	£1.73 £1.44
73	TK6693172	Rope 3X890	Out of stock	£3.47 £2.89
75	TK6684681	Starter Pully Ass'Y	Out of stock	£10.01 £8.34
76	TK6687209	Deflector	Out of stock	£8.72 £7.27
77	TK6684685	Stater Spring	Out of stock	£3.47 £2.89
78	TK6684684	Starter Pawl Spring	Out of stock	£3.47 £2.89
79	TK6684683	Stop Ring E-5	Out of stock	£1.73 £1.44
