Tanaka TED-262 - L - D - H - Crankcase

Name: Tanaka TED-262 - L - D - H - Crankcase
SKU: tedted262ldhcrankcase-group
Price: 1.43 GBP
Availability: InStock

Part No. tedted262ldhcrankcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

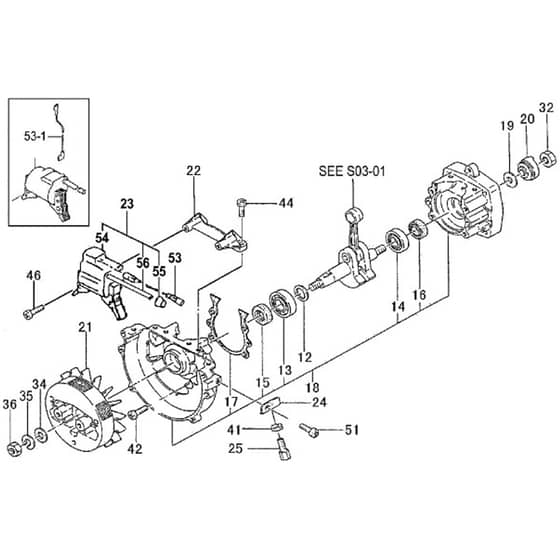

Tanaka TED-262 - L - D - H Drill - Crankcase Parts Diagram

	Part No.	Details
12	TK071.02007.24 Available to backorder	Crank Shaft Shim 0.30	£1.76 £1.47
12	TK6686472 Available to backorder	Crank Shaft Shim 0.20	£1.78 £1.48
12	TK6686470 Available to backorder	Crank Shaft Shim 0.10	£1.78 £1.48
13	TK6697745 In stock	Ball Bearing #6002 32Mm.Od	£8.98 £7.48
14	TK6684608 Available to backorder	Ball Bearing 6001 C3	£7.16 £5.97
15	TK6695637 Available to backorder	Oil Seal Ud15257	£5.38 £4.48
16	TK6684607 Available to backorder	Oil Seal Tb 12227	£3.61 £3.01
17	TK6686687 Available to backorder	Crank Case Gasket	£1.78 £1.48
18	TK6686514 Available to backorder	Crank Case Ass'Y	£65.16 £54.30
19	TK6689645 Available to backorder	Clutch Washer B	£1.78 £1.48
20	TK6693393 Available to backorder	Starter Pulley	£13.94 £11.62
21	TK6687409 Available to backorder	Magneto Rotor Comp	£42.85 £35.71
22	TK6687622 Available to backorder	Ignition Coil Bracket	£10.03 £8.36
23	TK6687661 Available to backorder	Ignition Coil Ass'Y	£65.16 £54.30
24	TK6694059 Available to backorder	Adjuster Bracket 1 - Y1767	£1.72 £1.43
25	TK6694043 Available to backorder	Outer Receiver 1 - Y1767	£5.38 £4.48
32	TK6684612 Available to backorder	Hex. Nut 8	£1.78 £1.48
34	TK6695184 Available to backorder	Small Washer 8	£1.78 £1.48
35	TK6684971 Available to backorder	S.Washer 8 1 - L2427	£1.78 £1.48
41	TK6684872 Available to backorder	Nut 6 1 - Y1767	£1.78 £1.48
42	TK6684786 In stock	Hex. Hole Bolt 5X30S	£1.78 £1.48
46	TK6695407 Available to backorder	High Tension Screw 4X18Ws	£1.78 £1.48
53	TK6687834 Available to backorder	Cord 1 V112401	£3.58 £2.98
55	TK6684602 Available to backorder	Rubber Cap 1 V112401	£1.78 £1.48
56	TK6687886 Available to backorder	Hightension Cord 120L	£1.78 £1.48
