Tanaka TED-250LS - DLS - Top Handle

Part No. tedted250lsdlsphandle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TED-250LS - DLS - Top Handle

Tanaka TED-250LS - DLS - Top Handle

Description

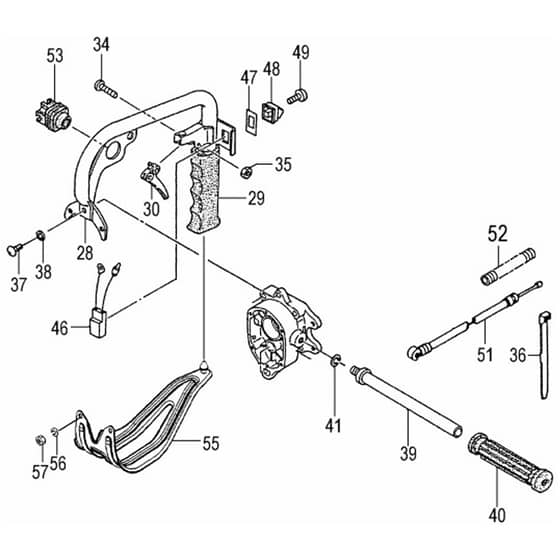

Tanaka TED-250LS - DLS Drill - Top Handle Parts Diagram

Ref.		Img.	Part No.	Details
	28		TK6688369 Available to backorder	Handle Comp A		£57.77 £48.14
	29		TK6687624 Available to backorder	Handle Grip A		£9.29 £7.74
	30		TK6686799 Available to backorder	Throttle Lever		£3.58 £2.98
	34		TK6694896 Available to backorder	Screw 5X25		£1.78 £1.48
	35		TK6684965 Available to backorder	Hex. Nut 5		£1.54 £1.28
	36		TK6688015 Available to backorder	Cord Clamp		£1.78 £1.48
	37		TK6695019 Available to backorder	Plus Bolt 6X16		£1.78 £1.48
	38		TK6695219 Available to backorder	S.Washer 6		£1.78 £1.48
	39		TK6688372 Available to backorder	Handle Comp. B		£21.46 £17.88
	40		TK6686350 Available to backorder	Handle Grip		£8.59 £7.16
	41		TK6695225 Available to backorder	S.Washer 10		£1.78 £1.48
	46		TK6687431 Available to backorder	Stop Switch Comp.		£13.49 £11.24
	47		TK6694589 Available to backorder	Stop Button Mark		£3.58 £2.98
	48		TK6697453 Available to backorder	Button Stop		£1.72 £1.43
	49		TK6684913 Available to backorder	Screw 3X10		£1.78 £1.48
	51		TK6693908 Available to backorder	Throttle Wire Comp.		£7.16 £5.97
	52		TK6687532 Available to backorder	Corrugated Tube 7X2		£1.78 £1.48
	53		TK6687420 Available to backorder	Chuck Handle Holder		£7.16 £5.97
	55		TK6688404 Available to backorder	Handle Support Comp.		£28.16 £23.47
	57		TK6684835 Available to backorder	Nut 6		£1.78 £1.48

Description

Tanaka TED-250LS - DLS Drill - Top Handle Parts Diagram
