Tanaka TEA-500-925 - Gear Case

Name: Tanaka TEA-500-925 - Gear Case
SKU: teatea500925gearcase-group
Price: 1.48 GBP
Availability: InStock

Part No. teatea500925gearcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

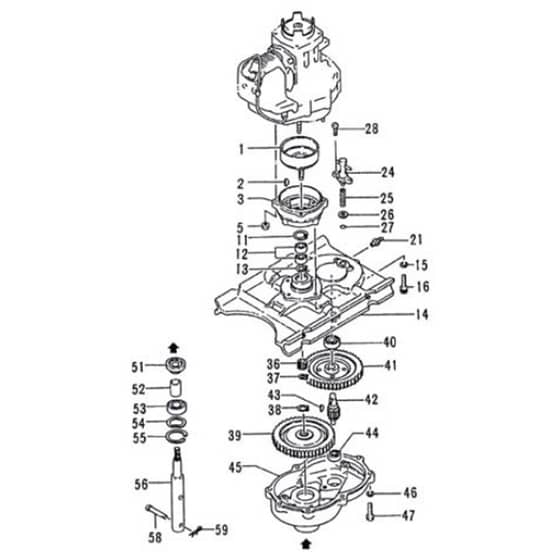

Tanaka TEA-500-925 Auger - Gear Case Parts Diagram

	Part No.	Details
1	TK6685911 Available to backorder	Clutch Shaft Comp.	£57.77 £48.14
2	TK6684899 Available to backorder	Wood-Ruff Key 3X13X4.5	£1.78 £1.48
5	TK6695475 Available to backorder	Spring Nut 6	£1.78 £1.48
11	TK6695295 Available to backorder	Stop Ring C-32 Inner	£1.78 £1.48
12	TK6695538 In stock	Ball Bearing #6002Z 32Mm.Od	£10.63 £8.86
13	TK6695285 In stock	Stop Ring C-15 Outer	£1.78 £1.48
15	TK6695219 Available to backorder	S.Washer 6	£1.78 £1.48
16	TK6695059 Available to backorder	Hex. Hole Bolt 6X18	£1.78 £1.48
21	TK6688643 Available to backorder	Grease Nipple Comp.	£1.78 £1.48
24	TK6689987 Available to backorder	Lock Comp.	£30.71 £25.59
27	TK6695665 Available to backorder	O-Ring P-7	£1.78 £1.48
36	TK6685606 Available to backorder	Gear 1	£35.69 £29.74
37	TK6684821 Available to backorder	Stop Ring C-10 Outer	£1.78 £1.48
38	TK6695288 Available to backorder	Stop Ring C-22 Outer	£1.78 £1.48

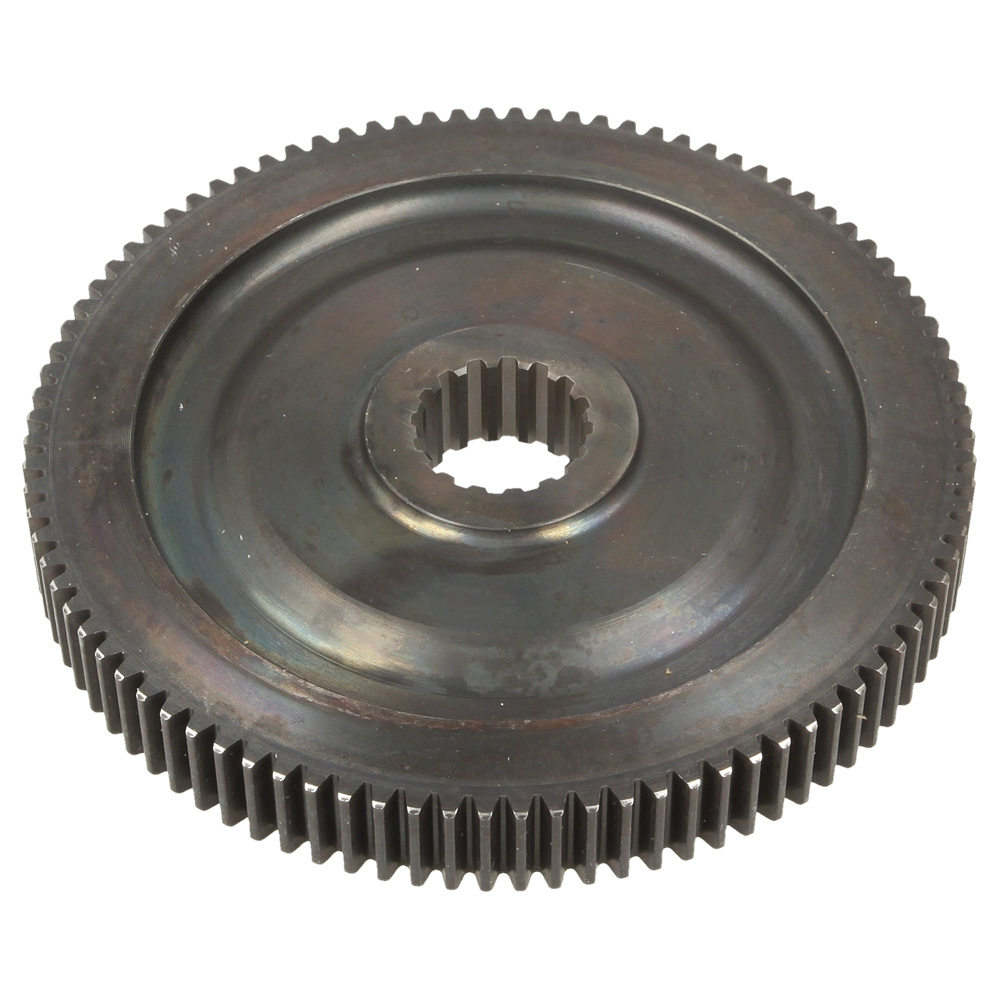

39	TK6685789 Available to backorder	Gear 4	£99.36 £82.80
40	TK6695557 Available to backorder	Ball Bearing #6202 35Mm.Od	£8.59 £7.16
41	TK6685658 Available to backorder	Gear 2	£99.36 £82.80
43	TK6686460 Available to backorder	Wood-Ruff Key 4X16X5	£1.78 £1.48
44	TK6695551 Available to backorder	Ball Bearing #6200 30Mm.Od	£9.64 £8.03
45	TK6685594 Available to backorder	Gear Case B	£77.64 £64.70
47	TK6695021 Available to backorder	Plus Bolt 6X22	£1.78 £1.48
55	TK6695300 Available to backorder	Stop Ring C-52 Inner	£3.58 £2.98
56	TK6685825 Available to backorder	Drive Shaft	£71.40 £59.50
58	TK6693554 Available to backorder	Pin	£8.23 £6.86
59	TK6693558 Available to backorder	Snap Pin 8	£1.78 £1.48
