Tanaka TCS33EDTP - Nov 2014 PN0001 - Main Assembly

Description

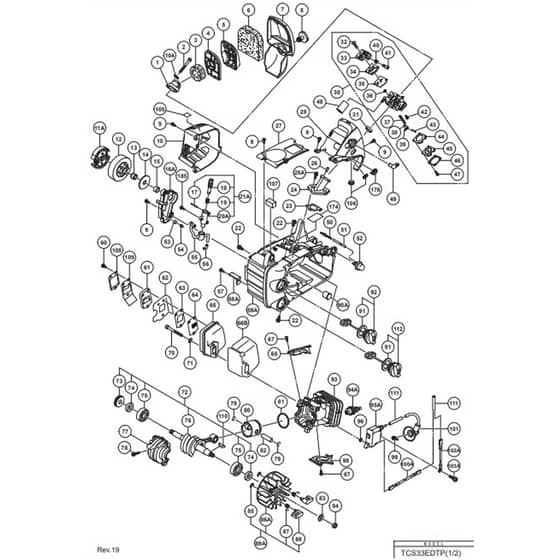

Tanaka TCS33EDTP Chainsaw - Main Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6685225 Available to backorder	Air Cleaner Base	£1.73 £1.44
3	TK6696826 Available to backorder	Cleaner Sponge (B)	£1.34 £1.12
4	TK6685230 Available to backorder	Cleaner Element A Comp.	£5.20 £4.33
5	TK6685231 Available to backorder	Cleaner Element B Comp.	£5.20 £4.33
6	TK6696825 Available to backorder	Cleaner Sponge (A)	£1.34 £1.12
7	TK6696785 Available to backorder	Cleaner Cover	£5.34 £4.45
8	TK6696786 Available to backorder	Cleaner Knob	£1.34 £1.12
9	TK305812 Available to backorder	Tapping Screw (W.Flange) D4X16 (Black)	£2.10 £1.75
10	TK6696821 Available to backorder	Muffler Cover	£10.02 £8.35
11	TK6600316 Available to backorder	(11A) Clutch	£21.14 £17.62
12	TK6698856 Available to backorder	Clutch Housing	£18.00 £15.00
13	TK6685361 Available to backorder	Needle Bearing (D)	£5.34 £4.45
14	TK6685414 Available to backorder	Clutch Washer	£1.34 £1.12
15	TK6685360 Available to backorder	Crank Shaft Collar	£2.63 £2.19
16	TK6696789 Available to backorder	Oil Pump Cover	£1.34 £1.12
17	TK6685356 Available to backorder	Needle Roller 2.5X19.8	£1.34 £1.12
18	TK6685354 Available to backorder	Pump Gear	£2.62 £2.18
19	TK6685355 Available to backorder	Pump Gear Spring	£1.61 £1.34
21	TK6699120 Available to backorder	(21A) Pump Ass'Y 1 Includ.17-	£16.32 £13.60
22	TK6685136 Available to backorder	Seal Lock Bolt M5X15	£1.73 £1.44
23	TK6699952 Available to backorder	Intake Packing	£0.48 £0.40
24	TK6696794 Available to backorder	Intake	£5.34 £4.45
27	TK6696812 Available to backorder	Engine Case Cover	£3.98 £3.32
28	TK6696792 Available to backorder	Cleaner Body	£5.76 £4.80
30	TK6696795 Available to backorder	Carburetor Ass'Y 1 Includ.32-	£95.33 £79.44
31	TK6698857 Available to backorder	Inlet Spacer	£1.34 £1.12
32	TK6685210 Available to backorder	Screw	£1.70 £1.42
33	TK6685211 Available to backorder	Pump Body	£11.39 £9.49
34	TK6685212 Available to backorder	Pump Gasket	£3.36 £2.80
35	TK6685213 In stock	Pump Diaphragm	£6.92 £5.77
36	TK6684700 Available to backorder	Inlet Screen	£3.46 £2.88
37	TK6685215 Available to backorder	Needle Valve	£7.20 £6.00
39	TK6685217 Available to backorder	Control Lever	£4.55 £3.79
40	TK6685297 Available to backorder	Idle Adjust Spring	£3.04 £2.53
41	TK6685298 Available to backorder	Idle Adjust Screw	£3.04 £2.53
42	TK6685218 Available to backorder	Hinge Pin Set Screw	£3.04 £2.53
43	TK6685219 Available to backorder	Hinge Pin	£1.70 £1.42
44	TK6685220 Available to backorder	Diaphragm Packing-Metering	£3.46 £2.88
46	TK6685222 Available to backorder	Diaphragm Cover-Metering	£6.92 £5.77
47	TK6685223 Available to backorder	Set Screw	£1.70 £1.42
48	TK6696793 Available to backorder	Idol Sponge	£1.34 £1.12
51	TK6698850 Available to backorder	Fuel Pipe 2.5X4X47	£1.70 £1.42
52	TK6685139 In stock	Priming Pump Comp.	£7.14 £5.95
53	TK6685371 Available to backorder	Air Vent Sponge	£1.61 £1.34
54	TK6685370 Available to backorder	Air Vent Valve (B)	£2.63 £2.19
55	TK6696811 Available to backorder	Oil Pipe	£2.72 £2.27
56	TK6685358 Available to backorder	Pipe Joint	£1.34 £1.12
59	TK6696807 Available to backorder	(59A) Engine Case Ass'Y 1 Includ.54.	£47.57 £39.64
63	TK6696817 Available to backorder	Gauze Fixing Plate	£1.34 £1.12
65	TK6696813 Available to backorder	Muffler (W.Catalyzer)	£45.02 £37.52
66	TK6600445 Available to backorder	(66B) Muffler Packing	£3.16 £2.63
70	TK6696819 Available to backorder	Hex. Socket Hd. Bolt M6X55	£1.34 £1.12
71	TK949432 Available to backorder	Bolt Washer M6 (10 Pcs.)	£2.60 £2.17
73	TK6685330 Available to backorder	Worm	£7.13 £5.94
74	TK6685329 Available to backorder	Oil Seal	£2.63 £2.19
75	TK6685328 Available to backorder	Ball Bearing	£3.98 £3.32
78	TK6684586 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X18	£1.73 £1.44
79	TK6685326 Available to backorder	Circlip	£1.34 £1.12
81	TK6685331 Available to backorder	Piston Ring (Xr1-1856)	£6.02 £5.02
83	TK6685103 Available to backorder	Bolt Washer M7	£1.73 £1.44
84	TK6685104 Available to backorder	Flywheel Nut	£1.70 £1.42
85	TK6685336 Available to backorder	Retaining Ring D4	£1.34 £1.12
87	TK6685335 Available to backorder	Starter Pawl Spring	£1.34 £1.12
88	TK6685334 Available to backorder	Starter Pawl	£3.52 £2.93
89	TK6600090 Available to backorder	(89A) Magneto Sub Ass'Y 1 Includ.85-	£34.04 £28.37
90	TK6685351 Available to backorder	(90A) Inner Cap	£5.76 £4.80
91	TK6685179 Available to backorder	Tank Cap Packing	£1.40 £1.17
92	TK6698854 Available to backorder	Fuel Tank Cap Ass'Y (Vermilion) 1 Includ.	£5.34 £4.45
93	TK6601440 Available to backorder	Cylinder	£80.52 £67.10

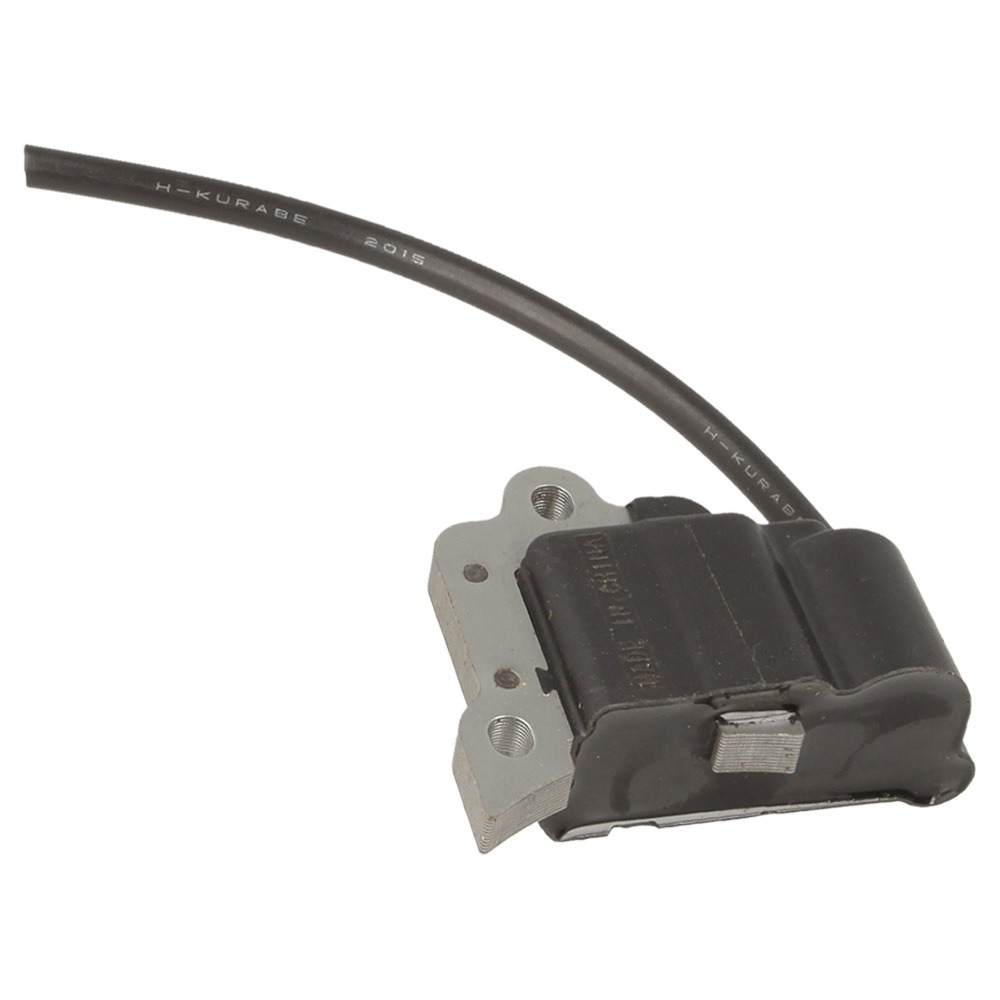

95	TK6699999 Available to backorder	(95A) Ignition Coil	£70.66 £58.88
101	TK6696771 Available to backorder	Spark Plug Cap	£2.63 £2.19
103	TK6695508 Available to backorder	(103A) Hex. Socket Hd. Bolt (W.Flange) M4X18	£0.80 £0.67
104	TK6695183 Available to backorder	Washer M5 (Black)	£1.73 £1.44
110	TK6684899 Available to backorder	Woodruff Key 3X13X4.5	£1.70 £1.42
112	TK6698358 Available to backorder	Fuel Tank Cap Ass'Y (Black)	£2.63 £2.19
