Tanaka TCS 27EPAP(S) - Cylinder Assembly

Name: Tanaka TCS 27EPAP(S) - Cylinder Assembly
SKU: tcstcs27epapscylinder-group
Price: 0.29 GBP
Availability: InStock

Part No. tcstcs27epapscylinder-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TCS 27EPAP(S) - Cylinder Assembly

Description

Tanaka TCS 27EPAP(S) Chainsaw - Cylinder Assembly Parts Diagram

	Part No.	Details
4	TK6600336 Available to backorder	(4A) Muffler Cover 1 Since 11.20	£12.83 £10.69
5	TK6695386 In stock	Screw 5X16.Ps	£1.86 £1.55
6	TK6695067 Available to backorder	Hex. Hole Bolt M6X65	£1.78 £1.48
7	TK6697455 In stock	Bolt Washer 6	£0.35 £0.29
8	TK6600004 Available to backorder	(8A) Muffler (B)	£52.82 £44.02

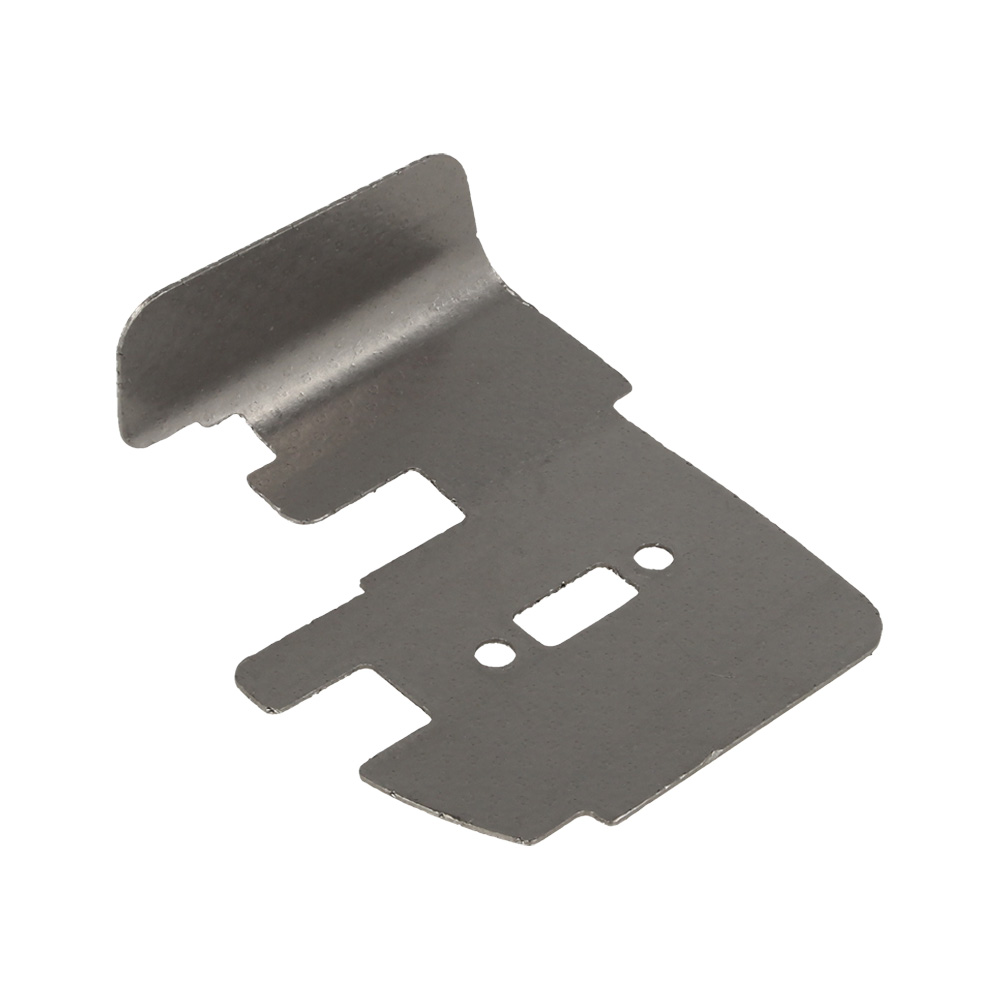

10	TK6600324 Available to backorder	(10A) Heat Protection Panel 1 Since 11.20	£2.66 £2.22
11	TK6684709 Available to backorder	Hex. Hole Bolt 5X20S	£1.78 £1.48
12	6521 In stock	( 12A) Spark Plug Ass'Y Bmr7A	£3.48 £2.90
13	TK6697684 Available to backorder	Cover Packing	£1.78 £1.48
15	TK6697445 Available to backorder	(15A) Hex. Socket Hd. Bolt (W.Sp.Washer) M4X12	£0.46 £0.38
16	TK6684600 Available to backorder	Washer T1.6	£1.78 £1.48
18	TK6697681 Available to backorder	Cylinder Gasket	£1.78 £1.48
19	TK6697679 Available to backorder	Cylinder Set Pn 1 Includ.	£62.04 £51.70
20	TK6684697 Available to backorder	Swivel	£5.38 £4.48
21	TK6684696 Available to backorder	Stop Ring	£1.78 £1.48
22	TK6684695 Available to backorder	O-Ring	£3.58 £2.98
23	TK6684692 Available to backorder	Pump Gasket	£26.83 £22.36
24	TK6684693 In stock	Pump Diaphragm	£7.43 £6.19
27	TK6685217 Available to backorder	Control Lever	£5.38 £4.48
28	TK6684691 In stock	Diaphragm Gasket	£7.43 £6.19
29	TK6684689 In stock	Priming Body	£7.63 £6.36
30	TK6684688 Available to backorder	Diaphragm Cover	£7.16 £5.97
31	TK6684698 Available to backorder	Throttle Set Screw	£3.58 £2.98
32	TK6684883 Available to backorder	Throttle Valve	£33.17 £27.64
33	TK6698966 Available to backorder	O-Ring P-15	£1.68 £1.40
35	TK6684700 Available to backorder	Inlet Screen	£3.58 £2.98
36	TK6685215 Available to backorder	Needle Valve	£8.59 £7.16
38	TK6685219 Available to backorder	Hinge Pin	£1.78 £1.48
40	TK6684687 Available to backorder	Priming Pump Comp.	£15.02 £12.52
41	TK6684699 In stock	Set Screw	£1.78 £1.48
42	TK6697691 Available to backorder	Intake Packing	£1.78 £1.48
43	TK6698954 Available to backorder	Carburetor Insulator Set Pn 1 Includ.	£8.59 £7.16
44	TK6698844 Available to backorder	Seal Lock Hex. Socket Bolt (W.Washers)M5	£1.39 £1.16
45	TK6684616 Available to backorder	Carburetor Packing	£1.78 £1.48
46	TK6684629 Available to backorder	Throttle Wire Fixing Plate	£3.58 £2.98
47	TK6684615 In stock	Carburetor Gasket	£1.85 £1.54
48	TK6698960 Available to backorder	Carburetor Ass'Y	£74.52 £62.10
49	TK6691337 Available to backorder	Swivel Cap	£1.78 £1.48
50	TK6695431 Available to backorder	Plus Screw 5X60Ws	£1.78 £1.48
52	TK6690347 In stock	Cleaner Element	£7.43 £6.19
53	TK6690139 Available to backorder	Air Cleaner Cap	£7.16 £5.97
54	TK6698961 Available to backorder	Air Filter Ass'Y 1 Includ.52.	£10.37 £8.64
55	TK6697683 Available to backorder	Piston Set Pn 1 Includ.56.	£21.46 £17.88

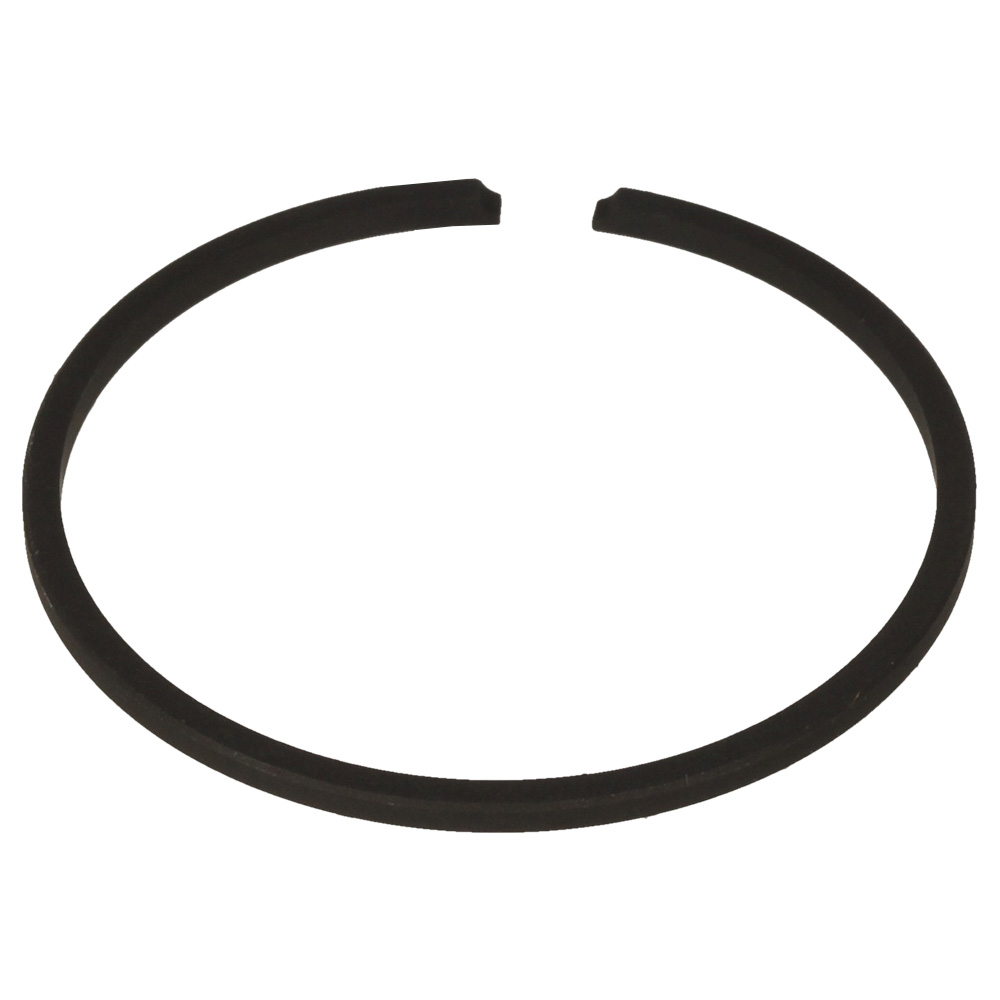

56	TK6686121 Available to backorder	Piston Ring	£7.16 £5.97
57	TK6684590 Available to backorder	Cir Clip	£1.79 £1.49
58	TK6684591 Available to backorder	Piston Pin	£3.58 £2.98
59	TK6695590 Available to backorder	Needle Bearing Hk0810B	£5.38 £4.48
63	TK6684607 Available to backorder	Oil Seal Tb 12227	£3.61 £3.01
64	TK6684608 Available to backorder	Ball Bearing 6001 C3	£7.16 £5.97
67	TK6684681 Available to backorder	Starter Pulley Ass'Y 1 Includ.68-	£10.01 £8.34
68	TK6685101 Available to backorder	D4E Retaining Ring	£1.78 £1.48
69	TK6684684 Available to backorder	Starter Pawl Spring	£3.58 £2.98
70	TK6684685 Available to backorder	Starter Pawl	£3.58 £2.98
71	TK6601570 In stock	(71A) Recoil Starter Body Ass'Y 1 Includ.72-	£36.41 £30.34
72	TK6684679 In stock	Set Screw	£1.78 £1.48
73	TK6699996 Available to backorder	(73A) Cam Plate 1 Since Tl0000	£5.26 £4.38
74	TK6684677 In stock	Damper Spring	£8.90 £7.42
75	TK6699997 Available to backorder	(75A) Starter Rope Reel 1 Since Tl0000	£9.29 £7.74
76	TK6684675 In stock	(76A) Recoil Spring	£9.70 £8.08
79	TK6693224 Available to backorder	Starter Handle	£3.24 £2.70
81	TK6699691 Available to backorder	Camplate Ass'Y 1 Includ.73A.75A Till K9999	£14.17 £11.81
82	TK6600335 Available to backorder	Muffler Rear Cover 1 Since 11.20	£17.21 £14.34
83	TK6600332 Available to backorder	Tapping Screw D4 3 Since 11.20	£0.48 £0.40
84	TK6600422 Available to backorder	(84A) Muffler Heat Cover 1 Since 11.20	£13.22 £11.02
