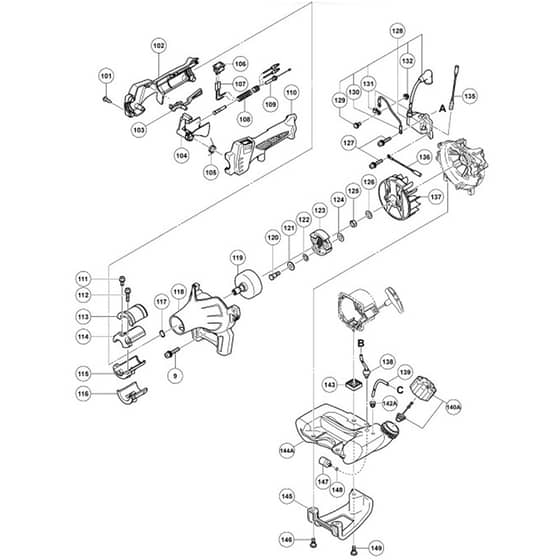

Tanaka TCH27EPA Hedge Trimmer - Starter Assembly Parts Diagram

	Part No.	Details
101	TK6697190 Available to backorder	Tapping Screw D4	£1.78 £1.48
102	TK6696487 Available to backorder	Handle (B)	£5.52 £4.60
103	TK6696490 Available to backorder	Lock Lever	£1.39 £1.16
104	TK6696488 Available to backorder	Lever	£1.39 £1.16
105	TK6698819 Available to backorder	Spring (A)	£1.86 £1.55
106	TK6685239 Available to backorder	Stop Switch	£5.38 £4.48
109	TK6698821 Available to backorder	Throttle Wire	£7.84 £6.53
110	TK6696486 Available to backorder	Handle (A)	£5.52 £4.60
111	TK6684667 Available to backorder	Hex.Hole Bolt M5X12.S	£1.78 £1.48
112	TK6684709 Available to backorder	Hex. Hole Bolt M5X25.S	£1.78 £1.48
113	TK6684666 Available to backorder	Anti-Vibe Rubber (A)	£3.58 £2.98
114	TK6698643 Available to backorder	Pipe Holder (A)	£2.71 £2.26
115	TK6698644 Available to backorder	Pipe Holder (B)	£2.71 £2.26
116	TK6684665 Available to backorder	Anti-Vibe Rubber (B)	£3.58 £2.98
117	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.35 £0.29
119	TK6684663 Available to backorder	Clutch Drum Comp.	£17.52 £14.60
120	TK6689627 Available to backorder	Step Bolt	£1.86 £1.55
121	TK6684648 Available to backorder	Bent Washer 8	£1.58 £1.32
122	TK6689528 Available to backorder	Clutch Plate (A)	£1.78 £1.48
123	TK6697655 Available to backorder	Clutch Set	£9.24 £7.70
124	TK6697619 Available to backorder	Clutch Washer B	£1.46 £1.22
125	TK6684612 Available to backorder	Hex.Nut M8	£1.78 £1.48
126	TK6684611 Available to backorder	Bolt Washer M8	£1.78 £1.48
127	TK6695508 Available to backorder	Hex. Hole Bolt 4X18Ws	£1.78 £1.48
128	TK6699937 Available to backorder	Ignition Coil (A) Ass'Y 1 Includ.129-132 For Europe130 6699940 Earth Cord 1 For Europe.Aus	£98.64 £82.20
137	TK6698396 Available to backorder	Magneto Rotor Comp.	£14.52 £12.10
140	TK6685049 In stock	(140A) Fuel Tank Cap Ass'Y 1 Includ.Tank Cap Chain141 6684625 Tank Cap Chain	£11.64 £9.70
143	TK6698496 Available to backorder	Spacer	£1.39 £1.16
144	TK6600317 In stock	(144A) Tank (B)	£16.38 £13.65
145	TK6694787 Available to backorder	Stand	£5.38 £4.48
146	TK6696557 Available to backorder	Flange Bolt	£1.39 £1.16
147	TK6684620 Available to backorder	Pump Filter Body Comp.	£7.58 £6.32
