Tanaka TCH27EPA - Cylinder Assembly

Name: Tanaka TCH27EPA - Cylinder Assembly
SKU: tchtch27epacylinder-group
Price: 0.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

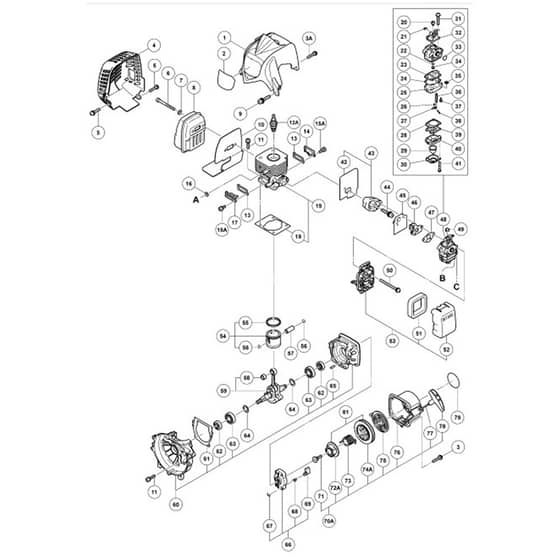

Tanaka TCH27EPA Hedge Trimmer - Cylinder Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6698481 Available to backorder	Cylinder Cover	£9.35 £7.79
4	TK6600322 Available to backorder	Muffler Cover	£13.18 £10.98
5	TK6695386 Available to backorder	Screw 5X16.Ps	£1.73 £1.44
6	TK6684638 Available to backorder	Hex. Hole Bolt M6X55	£1.73 £1.44
7	TK6697455 Available to backorder	Bolt Washer 6	£0.36 £0.30
11	TK6684709 Available to backorder	Hex. Hole Bolt 5X20S	£1.72 £1.43
12	6521 In stock	( 12A) Spark Plug Ass'Y Bmr7A	£3.47 £2.89
13	TK6697684 Available to backorder	Cover Packing	£1.73 £1.44
15	TK6697445 Available to backorder	(15A) Hex. Socket Hd.Bolt(W.Sp.Washer)M4X12	£0.44 £0.37
16	TK6684600 Available to backorder	Washer T1.6	£1.70 £1.42
18	TK6697681 Available to backorder	Cylinder Gasket	£1.70 £1.42
19	TK6697679 Available to backorder	Cylinder Set Pn 1 Includ.	£54.11 £45.09
20	TK6684697 Available to backorder	Swivel	£5.20 £4.33
21	TK6684696 Available to backorder	Stop Ring	£1.72 £1.43
22	TK6684695 Available to backorder	O-Ring	£3.46 £2.88
23	TK6684692 Available to backorder	Pump Gasket	£25.94 £21.62
24	TK6684693 Available to backorder	Pump Diaphragm	£6.92 £5.77
27	TK6685217 Available to backorder	Control Lever	£4.55 £3.79
28	TK6684691 Available to backorder	Diaphragm Gasket	£6.92 £5.77
29	TK6684689 Available to backorder	Priming Body	£7.82 £6.52
30	TK6684688 Available to backorder	Diaphragm Cover	£6.92 £5.77
31	TK6684698 Available to backorder	Throttle Set Screw	£3.04 £2.53
32	TK6684883 Available to backorder	Throttle Valve	£31.43 £26.19
33	TK6698966 Available to backorder	O-Ring P-15	£1.73 £1.44
35	TK6684700 Available to backorder	Inlet Screen	£3.46 £2.88
36	TK6685215 Available to backorder	Needle Valve	£7.20 £6.00
38	TK6685219 Available to backorder	Hinge Pin	£1.70 £1.42
40	TK6684687 Available to backorder	Priming Pump Comp.	£14.52 £12.10
41	TK6684699 Available to backorder	Set Screw	£1.70 £1.42
42	TK6697691 Available to backorder	Intake Packing	£1.70 £1.42
43	TK6698954 Available to backorder	Carburetor Insulator Set Pn 1 Includ.	£8.30 £6.92
44	TK6698844 Available to backorder	Seal Lock Hexsocketbolt(W.Washers)M5	£1.34 £1.12
45	TK6684616 Available to backorder	Carburetor Packing	£1.70 £1.42
46	TK6684629 Available to backorder	Throttle Wire Fixing Plate	£3.47 £2.89
47	TK6684615 In stock	Carburetor Gasket	£1.72 £1.43
48	TK6698960 Available to backorder	Carburetor Ass'Y 1 Includ.20-	£64.91 £54.09
49	TK6691337 Available to backorder	Swivel Cap	£1.72 £1.43
50	TK6695431 Available to backorder	Plus Screw 5X60Ws	£1.73 £1.44
51	TK6690347 In stock	Cleaner Element	£6.92 £5.77
52	TK6690139 Available to backorder	Air Cleaner Cap	£6.02 £5.02
53	TK6698961 Available to backorder	Air Filter Ass'Y 1 Includ.51.	£10.02 £8.35
54	TK6697683 Available to backorder	Piston Set Pn 1 Includ.55.	£20.74 £17.28
55	TK6686121 Available to backorder	Piston Ring	£6.96 £5.80
56	TK6684590 Available to backorder	Cir Clip	£1.72 £1.43
57	TK6684591 Available to backorder	Piston Pin	£3.20 £2.67
58	TK6695590 Available to backorder	Needle Bearing Hk0810B	£5.20 £4.33
62	TK6684607 In stock	Oil Seal Tb 12227	£3.62 £3.02
63	TK6684608 Available to backorder	Ball Bearing 6001 C3	£6.92 £5.77
66	TK6684681 Available to backorder	Starter Pulley Ass'Y 1 Includ.67-	£9.68 £8.07
67	TK6684683 Available to backorder	Stop Ring E-5	£1.73 £1.44
68	TK6684684 Available to backorder	Starter Pawl Spring	£3.46 £2.88
69	TK6684685 Available to backorder	Starter Pawl	£3.47 £2.89
70	TK6601570 In stock	(70A) Recoil Starter Body Ass'Y 1 Includ.71-	£33.98 £28.32
71	TK6684679 Available to backorder	Set Screw	£1.73 £1.44
72	TK6699996 Available to backorder	(72A) Cam Plate 1 Since Tl0000	£5.08 £4.23
73	TK6684677 Available to backorder	Damper Spring	£6.24 £5.20
74	TK6699997 Available to backorder	(74A) Starter Rope Reel 1 Since Tl0000	£8.99 £7.49
75	TK6684675 Available to backorder	Recoil Spring	£8.44 £7.03
76	TK6684673 Available to backorder	Recoil Starter Body Comp.	£16.94 £14.12
77	TK6684674 Available to backorder	Starter Rope 3.5X860	£3.47 £2.89
78	TK6693224 Available to backorder	Starter Handle	£1.73 £1.44
81	TK6699691 Available to backorder	Camplate Ass'Y	£13.69 £11.41
