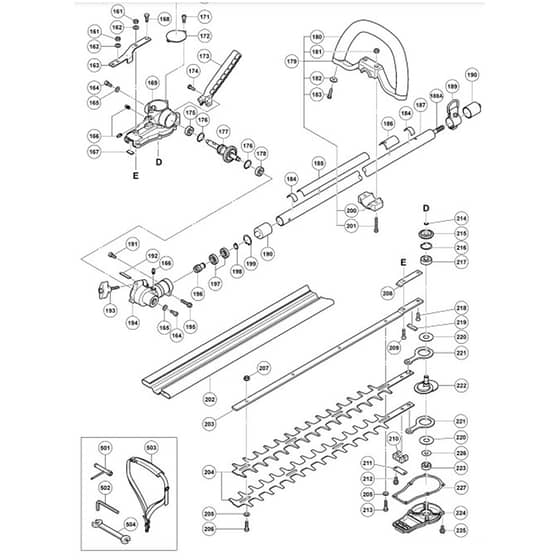

Tanaka TCH27EPA Hedge Trimmer - Blade Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
161	TK6695175 Available to backorder	Lock Nut 6 Ups-P	£1.73 £1.44
162	TK6697455 Available to backorder	Bolt Washer 6	£0.36 £0.30
163	TK6690744 Available to backorder	Support Plate	£15.29 £12.74
164	TK6695078 Available to backorder	Hex. Hole Bolt 6X12	£1.73 £1.44
165	TK6684822 Available to backorder	Special Washer B	£1.73 £1.44
166	TK6688643 Available to backorder	Grease Nipple Comp.	£1.70 £1.42
167	TK6686659 Available to backorder	Grease Stop (B)	£1.70 £1.42

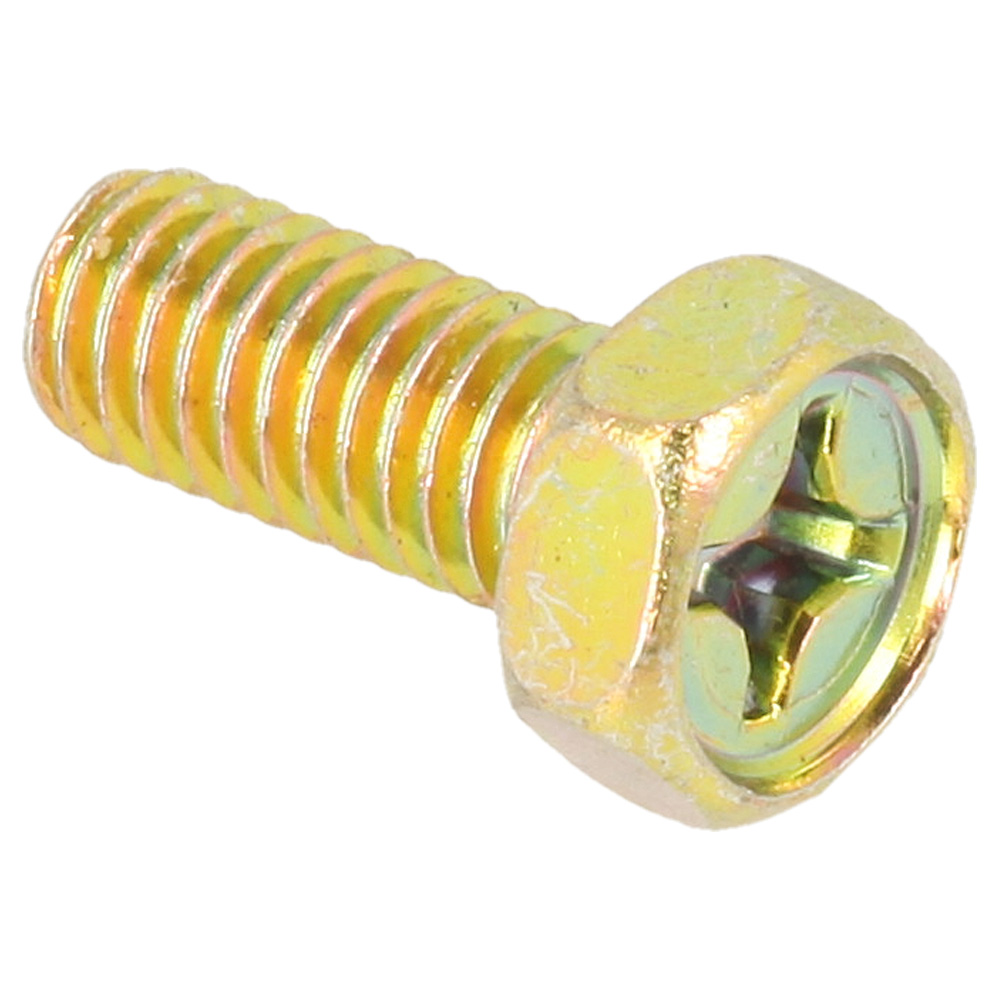

168	TK6695016 Available to backorder	Plus Bolt 6X14	£1.73 £1.44
171	TK6695035 Available to backorder	Hex Hole Bolt 4X8	£1.73 £1.44
172	TK6689167 Available to backorder	Gear Case Cover (A)	£1.70 £1.42

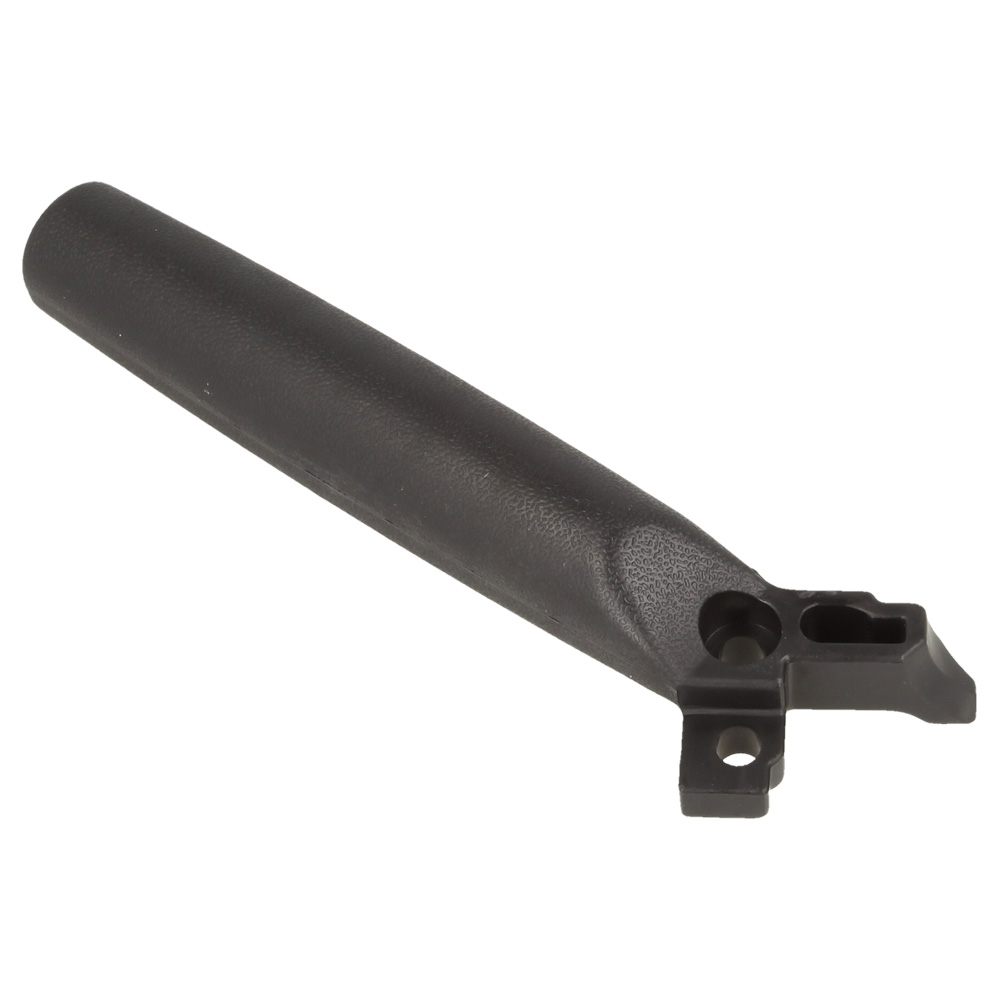

173	TK6688089 Available to backorder	Handle	£6.92 £5.77

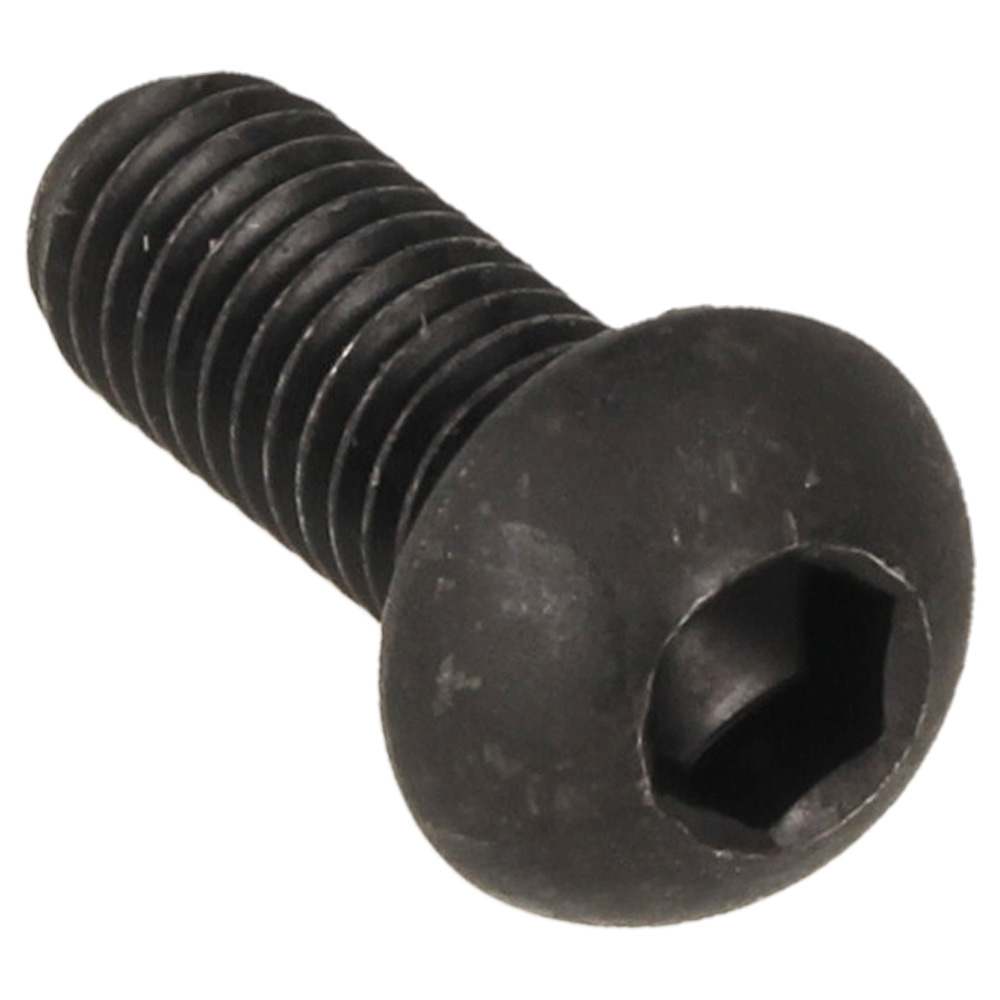

174	TK6695079 Available to backorder	Hex Hole Button Screw 6X15	£1.72 £1.43
175	TK608DDM Available to backorder	Ball Bearing 608Ddc2Ps2L	£10.40 £8.67

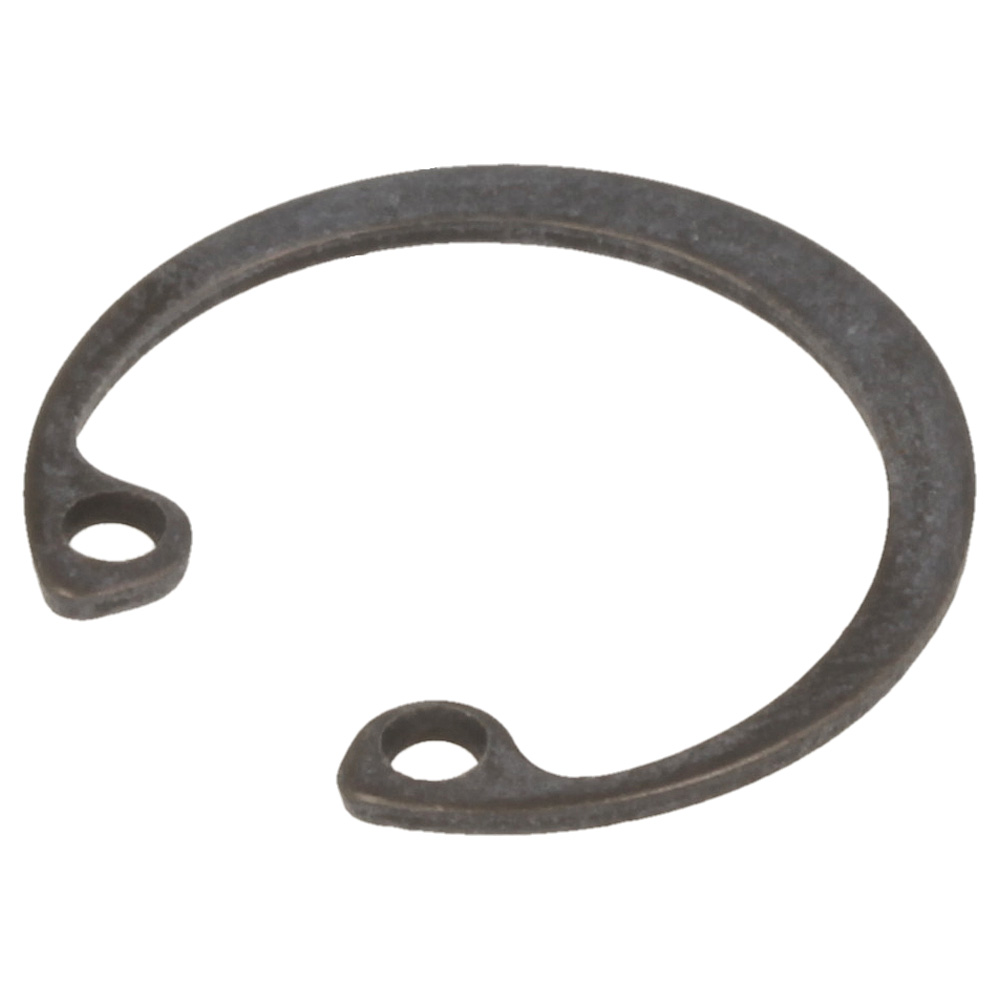

176	TK6695293 Available to backorder	Retaining Ring C-Type D22	£1.72 £1.43
177	TK6698957 Available to backorder	Gear Shaft	£83.87 £69.89
180	TK6691098 Available to backorder	Handle Grip	£10.02 £8.35
181	TK6684835 Available to backorder	Hex.Nut 6	£1.73 £1.44
182	TK6689681 Available to backorder	Brake Shaft Washer	£1.70 £1.42
184	TK6684851 Available to backorder	Level Mark	£1.73 £1.44
186	TK6684852 Available to backorder	Level Mark	£1.73 £1.44
187	TK6698963 Available to backorder	Main Pipe 1450L	£42.08 £35.07
188	TK6697879 Available to backorder	(188A) Drive Shaft 1483L	£26.20 £21.83
189	TK6689277 Available to backorder	Hanger D24	£4.55 £3.79
190	TK6698515 Available to backorder	Cap (A)	£2.63 £2.19
191	TK6695042 Available to backorder	Hex. Hole Bolt 5X10	£1.62 £1.35

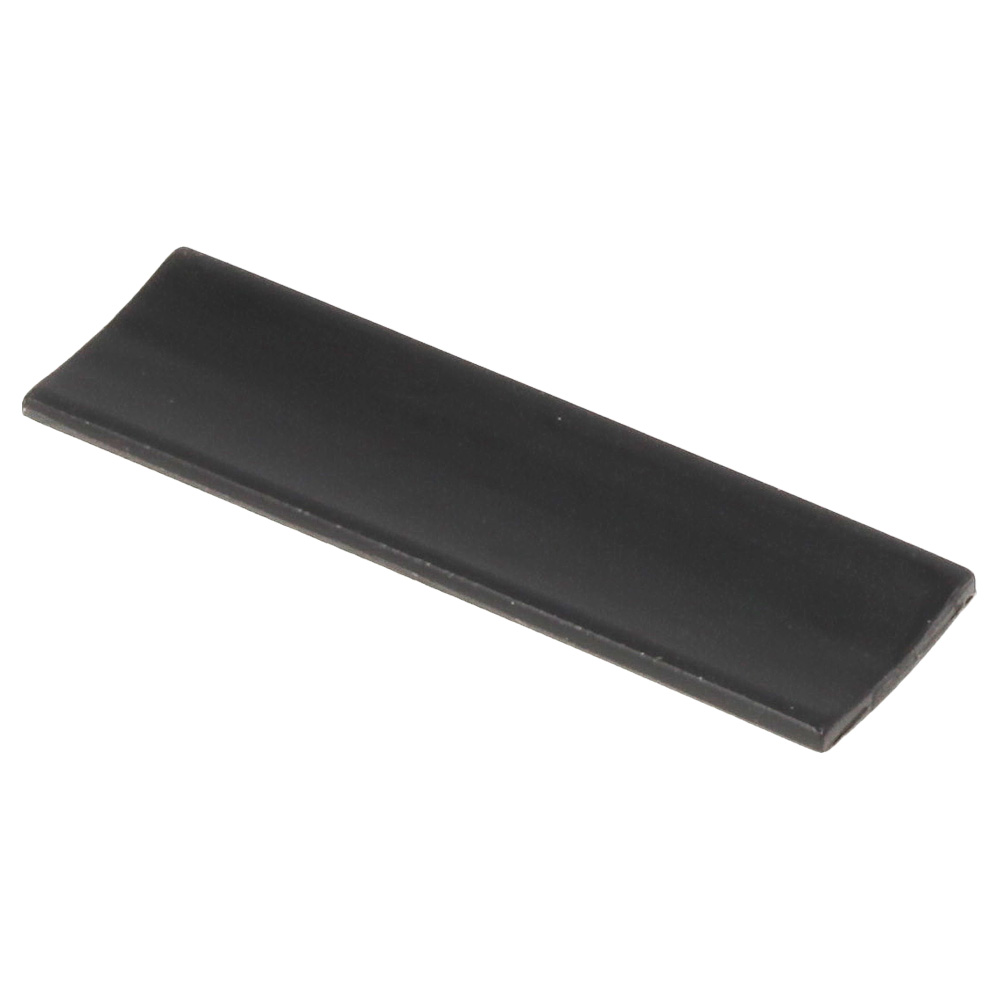

192	TK6686669 Available to backorder	Grease Stop (D)	£1.72 £1.43
193	TK6691200 Available to backorder	Handle Knob A Comp.	£5.10 £4.25
194	TK6688653 Available to backorder	Gear Case A.24 Dia	£45.08 £37.57
195	TK6684709 Available to backorder	Hex. Hole Bolt M5X25.S	£1.72 £1.43
196	TK6698958 Available to backorder	Pinion	£25.94 £21.62

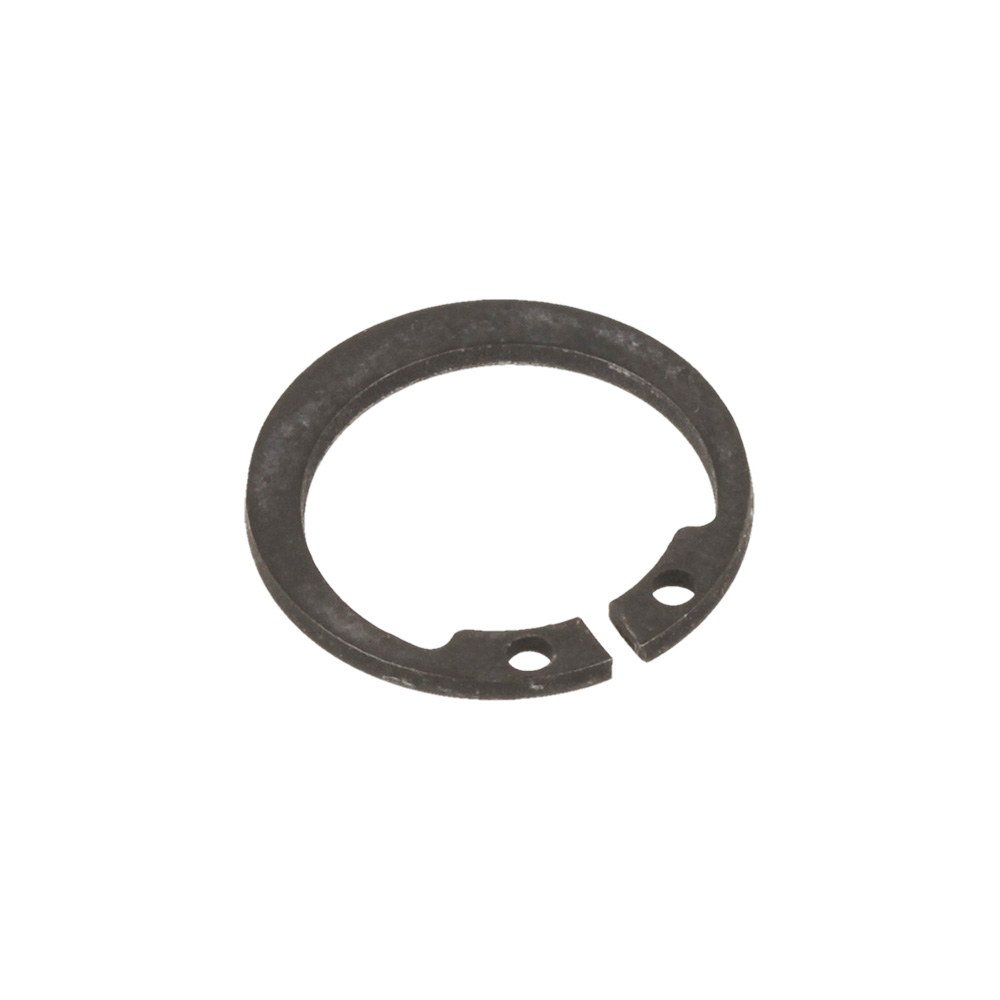

198	TK6695302 Available to backorder	Stop Ring S-12.Outer	£1.72 £1.43
199	TK6684732 Available to backorder	Stop Ring C-24.Inner	£1.72 £1.43
200	TK6691134 Available to backorder	Handle Bracket A	£3.04 £2.53
201	TK6684838 Available to backorder	Bolt 6X43.P (Black)	£1.73 £1.44
202	TK6687301 Available to backorder	Cutter Cover	£13.04 £10.87
203	TK6687125 Available to backorder	Cutter Guide 625.5Mm	£41.42 £34.52
204	TK6687079 Available to backorder	Cutter (A)	£64.90 £54.08
205	TK6687187 In stock	Washer 7 Black	£1.44 £1.20
207	TK6697440 Available to backorder	Flange Nut 6	£0.32 £0.27
208	TK6688633 Available to backorder	Spacer	£1.70 £1.42
209	TK6695075 Available to backorder	Hex. Hole Flush Bolt 6X25	£1.72 £1.43
210	TK6686647 Available to backorder	Grease Stop (A)	£1.78 £1.48
211	TK6686826 Available to backorder	Cam Rod Plate	£1.72 £1.43
212	TK6697446 In stock	Hex. Hole Bolt 4X10S	£0.44 £0.37
213	TK6697449 Available to backorder	Fixing Bolt A M6	£1.06 £0.88

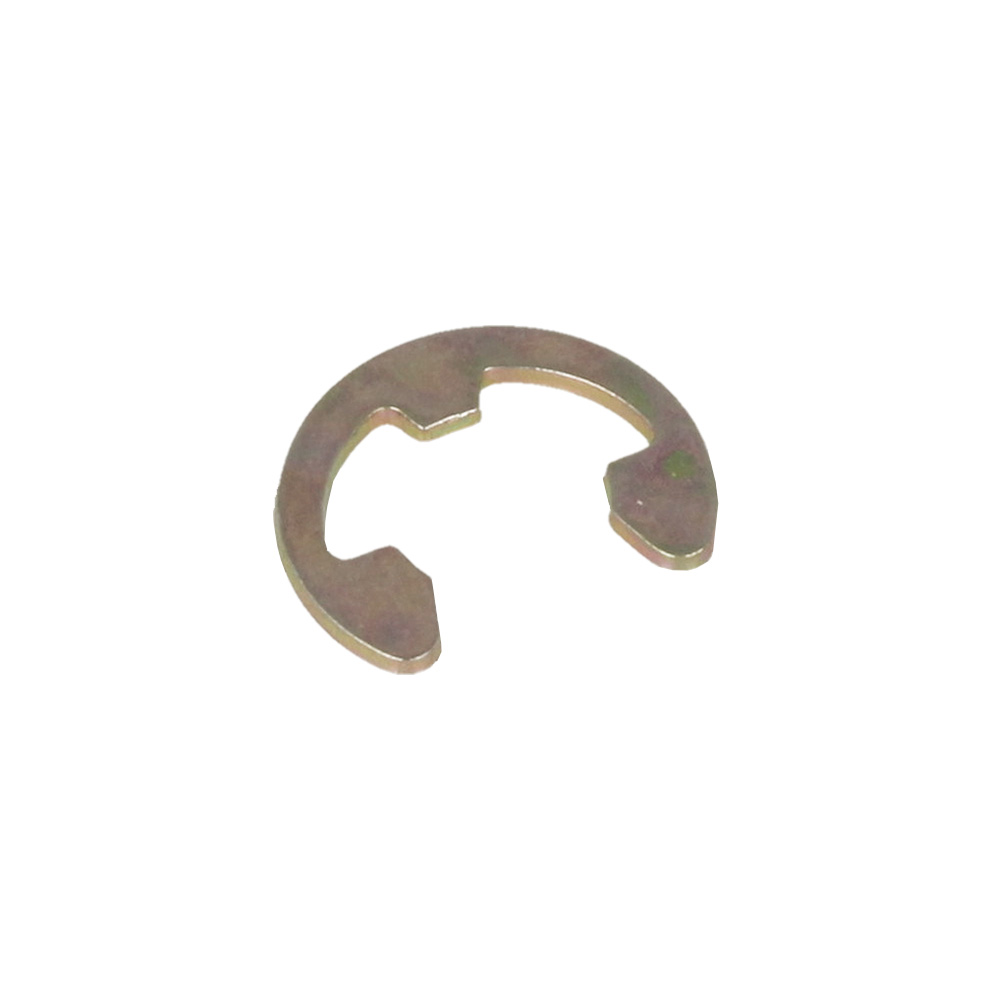

214	TK6695310 Available to backorder	Retaining Ring E-Type D6	£1.72 £1.43
215	TK6698959 Available to backorder	Gear 2	£44.82 £37.35
216	TK6695294 Available to backorder	Retaining Ring C-Type D26	£1.72 £1.43
219	TK6686666 Available to backorder	Grease Stop (C)	£1.70 £1.42
220	TK6686611 Available to backorder	Cam-Rod Guide Plate	£1.72 £1.43
221	TK6699732 Available to backorder	Cam Rod (A)	£52.34 £43.62
223	TK6684775 Available to backorder	Ball Bearing 608Zzc3	£8.30 £6.92
225	TK6697445 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M4X12	£0.44 £0.37
227	TK6699733 Available to backorder	Gear Case Picking	£1.20 £1.00
501	TK6685997 Available to backorder	Combi. Box Spanner 10X19 .Plus	£6.02 £5.02
502	TK6684813 Available to backorder	Hex. Bar Wrench 4Mm	£1.73 £1.44
504	TK6684766 Available to backorder	Wrench 8X10	£1.73 £1.44
