Tanaka TCH 24EBP Hedge Trimmer - Main Assembly Parts Diagram

	Part No.	Details
1	TK6684655 Available to backorder	Cover Fixing Bolt	£5.38 £4.48
2	TK981317 Available to backorder	O-Ring (S-4)	£0.72 £0.60
3	TK6601540 Available to backorder	Air Cleaner Cover	£3.40 £2.83
4	TK6601539 Available to backorder	Air Cleaner Element	£1.54 £1.28
5	TK6684697 Available to backorder	Swivel	£5.38 £4.48
6	TK6684696 Available to backorder	Stop Ring	£1.78 £1.48
7	TK6684695 Available to backorder	O-Ring	£3.58 £2.98

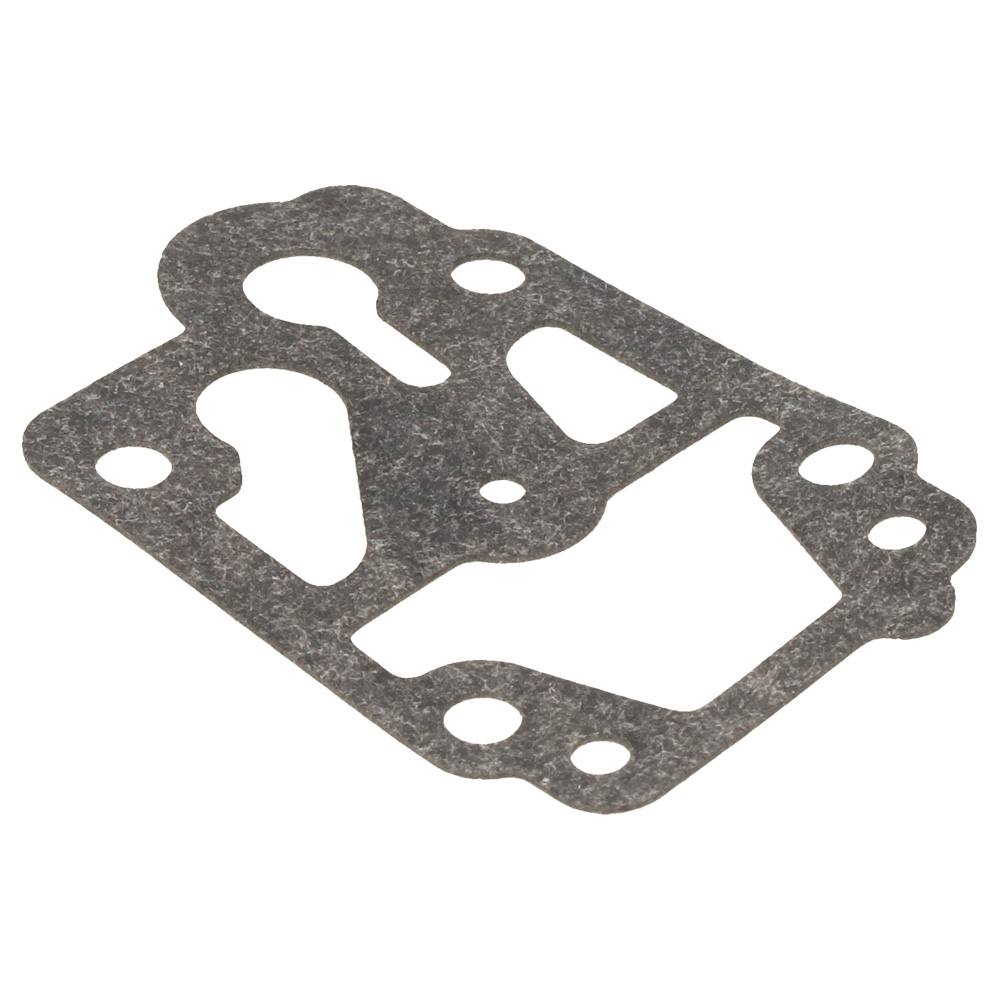

9	TK6684692 Available to backorder	Pump Gasket	£26.83 £22.36
11	TK6685222 Available to backorder	Diaphragm Cover-Metering	£7.16 £5.97
12	TK6691312 Available to backorder	Set Screw	£1.78 £1.48
13	TK6684698 Available to backorder	Throttle Set Screw	£3.58 £2.98
15	TK6684693 In stock	Pump Diaphragm	£7.43 £6.19
16	TK6684700 Available to backorder	Inlet Screen	£3.58 £2.98
19	TK6694914 Available to backorder	Screw M5X55	£1.78 £1.48
20	TK6685407 Available to backorder	Bolt Washer D5	£1.39 £1.16
24	TK6685139 In stock	Priming Pump Comp.	£7.67 £6.39
25	TK6601607 Available to backorder	Fuel Pipe	£9.85 £8.21
26	TK6601535 Available to backorder	Carburetor Ass'Y (Wyl-367) 1 Includ.5-	£60.84 £50.70
27	TK6601536 Available to backorder	Air Cleaner Base	£4.12 £3.43
29	TK6698405 Available to backorder	Carburetor Packing	£3.86 £3.22
30	TK6698388 Available to backorder	Hex. Socket Hd. Bolt (W.Washers) M4X18	£2.03 £1.69
35	TK6601534 Available to backorder	Intake Packing	£0.49 £0.41
36	TK6600902 Available to backorder	Cylinder N24	£52.55 £43.79
37	TK6601421 Available to backorder	Plug Cap	£0.48 £0.40
39	2688 In stock	Ignition Plug (Torch L7Rtc)	Was £1.88 £1.57 Special Price £1.07 £0.89
44	TK6685408 Available to backorder	Washer 5	£1.39 £1.16
45	TK6684586 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X18	£1.78 £1.48
47	TK6695514 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X22	£1.78 £1.48
49	TK6601527 Available to backorder	Cylinder Packing	£0.83 £0.69

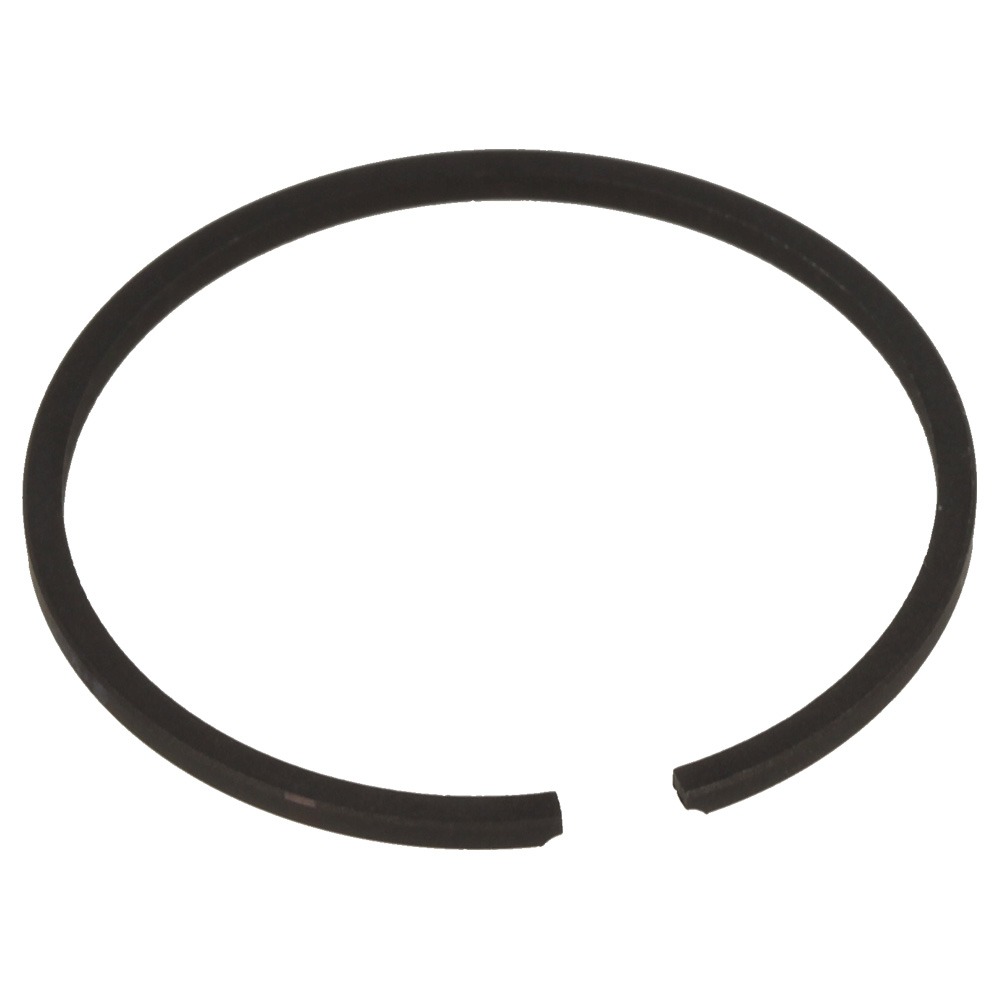

50	TK6698404 Available to backorder	Piston Ring	£5.52 £4.60
51	TK6601429 Available to backorder	Piston N24	£12.34 £10.28
52	TK6684590 Available to backorder	Cir Clip	£1.79 £1.49
55	TK6601344 Available to backorder	Piston Pin	£4.39 £3.66
57	TK6601529 Available to backorder	Muffler Ass'Y 1 Includ.58-	£61.91 £51.59
58	TK6601606 Available to backorder	Exhaust Pipe Packing	£3.34 £2.78
59	TK6601605 Available to backorder	Spark Arrester	£2.54 £2.12
60	TK6601604 Available to backorder	Exhaust Pipe	£3.34 £2.78
61	TK6685068 Available to backorder	Machine Screw (W.Sp. Washer) M4X12	£1.78 £1.48
62	TK6600518 Available to backorder	Seal Lock Hex. Socket Hd. Bolt M6X16	£0.48 £0.40
63	TK6696879 Available to backorder	Flywheel Nut M7	£1.39 £1.16
64	TK6696880 Available to backorder	Bolt Washer D7	£1.39 £1.16
65	TK6685334 Available to backorder	Starter Pawl	£3.12 £2.60
66	TK6685335 Available to backorder	Starter Pawl Spring	£1.39 £1.16
68	TK6685336 Available to backorder	Retaining Ring D4	£1.39 £1.16
69	TK6601602 Available to backorder	Crank Case (F) Ass'Y 1 Includ.70.	£28.22 £23.52
70	TK6684607 Available to backorder	Oil Seal Tb 12227	£3.61 £3.01
71	TK6684608 Available to backorder	Ball Bearing 6001 C3	£7.16 £5.97
77	TK6601548 Available to backorder	Clutch Drum	£17.20 £14.33
78	TK6698740 Available to backorder	Ball Bearing 6002Zc3	£5.52 £4.60
79	TK939544 Available to backorder	Retaining Ring For D15 Shaft (10 Pcs.)	£1.09 £0.91
80	TK6688643 Available to backorder	Grease Nipple Comp.	£1.78 £1.48
82	TK6699048 Available to backorder	Fixation Plate (B)	£0.86 £0.72
83	TK6699047 Available to backorder	Fixation Plate (A)	£1.20 £1.00
85	TK6601563 Available to backorder	Tail Pipe	£5.80 £4.83
88	TK6698878 Available to backorder	Tapping Screw D4.5X16	£1.39 £1.16
91	TK6685189 Available to backorder	Plate	£1.78 £1.48
92	TK6693227 Available to backorder	Starter Handle	£5.38 £4.48
96	TK6685183 Available to backorder	Damper Spring	£7.16 £5.97
98	TK6684679 In stock	Set Screw	£1.78 £1.48
99	TK6685049 In stock	Fuel Tank Cap Ass'Y 1 Includ.1	£11.64 £9.70
101	TK6698615 Available to backorder	Cushion Rubber	£3.49 £2.91
102	TK6601533 Available to backorder	Tank (Ft)	£24.62 £20.52
103	TK6600358 In stock	Fuel Grommet	£2.72 £2.27
105	TK6601399 In stock	Fuel Pipe	£4.39 £3.66
106	TK6696949 Available to backorder	Clip	£1.34 £1.12
107	TK6600351 Available to backorder	Pump Filter	£4.56 £3.80
