Tanaka TCH 24EAP - Main Assembly

Name: Tanaka TCH 24EAP - Main Assembly
SKU: tchtch24eapmain-group
Price: 0.67 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

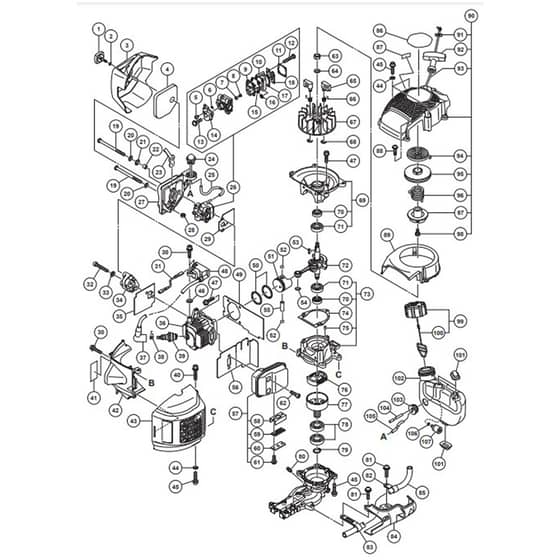

Tanaka TCH 24EAP Hedge Trimmer - Main Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6684655	Cover Fixing Bolt	Out of stock	£4.55 £3.79
2	TK981317	O-Ring (S-4)	Out of stock	£0.80 £0.67
3	TK6601540	Air Cleaner Cover	Out of stock	£3.29 £2.74
4	TK6601539	Air Cleaner Element	Out of stock	£1.49 £1.24
5	TK6684697	Swivel	Out of stock	£4.55 £3.79
6	TK6684696	Stop Ring	Out of stock	£1.76 £1.47
7	TK6684695	O-Ring	Out of stock	£3.14 £2.62
9	TK6684692	Pump Gasket	Out of stock	£22.58 £18.82
11	TK6685222	Diaphragm Cover-Metering	Out of stock	£6.92 £5.77
12	TK6691312	Set Screw	Out of stock	£1.76 £1.47
13	TK6684698	Throttle Set Screw	Out of stock	£3.14 £2.62
15	TK6684693	Pump Diaphragm	Out of stock	£7.51 £6.26
16	TK6684700	Inlet Screen	Out of stock	£3.14 £2.62
17	TK6685220	Diaphragm Packing-Metering	Out of stock	£3.58 £2.98
18	TK6684690	Metering Diaphragm	Out of stock	£14.26 £11.88
19	TK6694914	Screw M5X55	Out of stock	£1.73 £1.44
20	TK6685407	Bolt Washer D5	Out of stock	£1.34 £1.12
24	TK6685139	Priming Pump Comp.	Out of stock	£7.44 £6.20
25	TK6601607	Fuel Pipe	Out of stock	£9.53 £7.94
26	TK6601535	Carburetor Ass'Y (Wyl-367) 1 Includ.5-	Out of stock	£60.83 £50.69
27	TK6601536	Air Cleaner Base	Out of stock	£4.12 £3.43
29	TK6698405	Carburetor Packing	Out of stock	£2.63 £2.19
30	TK6698388	Hex. Socket Hd. Bolt (W.Washers) M4X18	Out of stock	£1.34 £1.12
35	TK6601534	Intake Packing	Out of stock	£0.80 £0.67
36	TK6600902	Cylinder N24	Out of stock	£52.55 £43.79
37	TK6601421	Plug Cap	Out of stock	£0.80 £0.67
39	2688	Ignition Plug (Torch L7Rtc)	In stock	Was £2.18 £1.82 Special Price £1.20 £1.00
44	TK6685408	Washer 5	Out of stock	£1.34 £1.12
45	TK6684586	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X18	Out of stock	£1.73 £1.44
47	TK6695514	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X22	Out of stock	£1.43 £1.19
48	TK6601612	Ignition Coil	Out of stock	£48.34 £40.28
49	TK6601527	Cylinder Packing	Out of stock	£0.96 £0.80
50	TK6698404	Piston Ring	Out of stock	£5.52 £4.60
51	TK6601429	Piston N24	Out of stock	£12.34 £10.28
52	TK6684590	Cir Clip	Out of stock	£1.76 £1.47
55	TK6601344	Piston Pin	Out of stock	£4.25 £3.54
57	TK6601529	Muffler Ass'Y 1 Includ.58-	Out of stock	£59.84 £49.87
58	TK6601606	Exhaust Pipe Packing	Out of stock	£3.34 £2.78
59	TK6601605	Spark Arrester	Out of stock	£2.46 £2.05
60	TK6601604	Exhaust Pipe	Out of stock	£3.34 £2.78
61	TK6685068	Machine Screw (W.Sp. Washer) M4X12	Out of stock	£1.73 £1.44
62	TK6600518	Seal Lock Hex. Socket Hd. Bolt M6X16	Out of stock	£0.80 £0.67
63	TK6696879	Flywheel Nut M7	Out of stock	£1.34 £1.12
64	TK6696880	Bolt Washer D7	Out of stock	£1.34 £1.12
65	TK6685334	Starter Pawl	Out of stock	£1.73 £1.44
66	TK6685335	Starter Pawl Spring	Out of stock	£1.34 £1.12
68	TK6685336	Retaining Ring D4	Out of stock	£1.34 £1.12
69	TK6601602	Crank Case (F) Ass'Y 1 Includ.70.	Out of stock	£28.22 £23.52
70	TK6684607	Oil Seal Tb 12227	Out of stock	£3.60 £3.00
71	TK6684608	Ball Bearing 6001 C3	Out of stock	£6.92 £5.77
76	TK6699173	Clutch (B)	Out of stock	£13.56 £11.30
77	TK6601548	Clutch Drum	Out of stock	£16.62 £13.85
78	TK6698740	Ball Bearing 6002Zc3	Out of stock	£5.34 £4.45
79	TK939544	Retaining Ring For D15 Shaft (10 Pcs.)	Out of stock	£1.07 £0.89
80	TK6688643	Grease Nipple Comp.	Out of stock	£1.76 £1.47
82	TK6699048	Fixation Plate (B)	Out of stock	£0.84 £0.70
83	TK6699047	Fixation Plate (A)	Out of stock	£1.20 £1.00
85	TK6601563	Tail Pipe	Out of stock	£5.60 £4.67
88	TK6698878	Tapping Screw D4.5X16	Out of stock	£1.34 £1.12
91	TK6685189	Plate	Out of stock	£1.73 £1.44
92	TK6693227	Starter Handle	Out of stock	£5.38 £4.48
96	TK6685183	Damper Spring	Out of stock	£6.92 £5.77
98	TK6684679	Set Screw	Out of stock	£1.73 £1.44
99	TK6685049	Fuel Tank Cap Ass'Y 1 Includ.1	In stock	£11.28 £9.40
101	TK6698615	Cushion Rubber	Out of stock	£3.38 £2.82
102	TK6601533	Tank (Ft)	Out of stock	£23.81 £19.84
103	TK6600358	Fuel Grommet	Out of stock	£1.66 £1.38
105	TK6601399	Fuel Pipe	Out of stock	£4.20 £3.50
106	TK6696949	Clip	Out of stock	£1.34 £1.12
107	TK6600351	Pump Filter	Out of stock	£4.88 £4.07
