Tanaka TCH 24EAP - Blade Assembly

Name: Tanaka TCH 24EAP - Blade Assembly
SKU: tchtch24eapblade-group
Price: 0.67 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

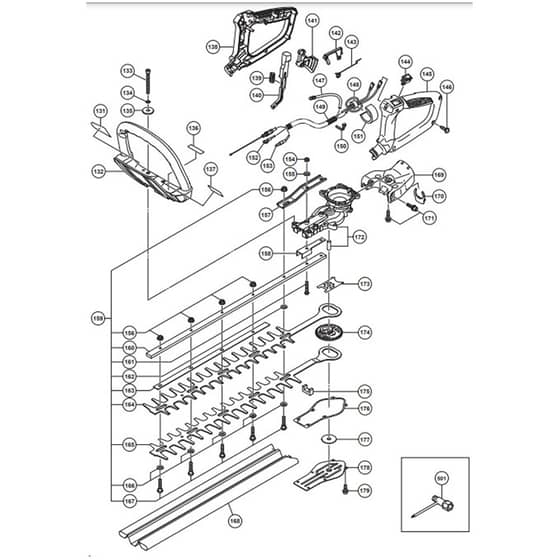

Tanaka TCH 24EAP Hedge Trimmer - Blade Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
132	TK6699079 Available to backorder	Handle	£8.24 £6.87
133	TK6698885 Available to backorder	Seal Lock Hex. Socket Hd. Bolt M5X40	£1.34 £1.12
134	TK6698884 Available to backorder	Spring Washer M5	£1.34 £1.12
135	TK6698749 Available to backorder	Brake Axis Washer	£1.34 £1.12
139	TK6696348 Available to backorder	Spring (A)	£1.70 £1.42
141	TK6699053 Available to backorder	Throttle Lever	£1.04 £0.87
143	TK6696345 Available to backorder	Throttle Lever Spring	£1.70 £1.42
146	TK305812 Available to backorder	Tapping Screw (W.Flange) D4X16 (Black)	£2.10 £1.75
149	TK6698738 Available to backorder	Protection Tube	£1.34 £1.12
151	TK6601617 Available to backorder	Support (D)	£0.80 £0.67
152	TK6699059 Available to backorder	Stop Switch Cord (B)	£1.80 £1.50
155	TK6684864 Available to backorder	Small Washer 5	£1.73 £1.44
156	TK6699108 Available to backorder	U-Nut M5	£2.90 £2.42
158	TK6601615 Available to backorder	Guide Plate (Ea)	£0.96 £0.80
161	TK9A0.53050.250 Available to backorder	Hex. Socket Hd. Bolt (W.Button) M5X25	£2.90 £2.42
162	TK6699112 Available to backorder	Washer (B)	£1.43 £1.19
164	TKTCHLINERKIT-50 Available to backorder	Hedge Trimmer Blade (A)	£34.30 £28.58
165	TK6600011 Available to backorder	Hedge Trimmer Blade (B)	£34.50 £28.75
166	TK6699111 Available to backorder	Washer M7	£1.70 £1.42
170	TK6691122 Available to backorder	Clip	£1.70 £1.42
171	TK6699044 Available to backorder	Seal Lock Hex. Socket Bolt (W.Washers)M5	£0.80 £0.67
172	TK6601608 Available to backorder	Gear Case (A)	£57.08 £47.57
174	TK6699038 Available to backorder	Gear 2 (Ea)	£29.68 £24.73

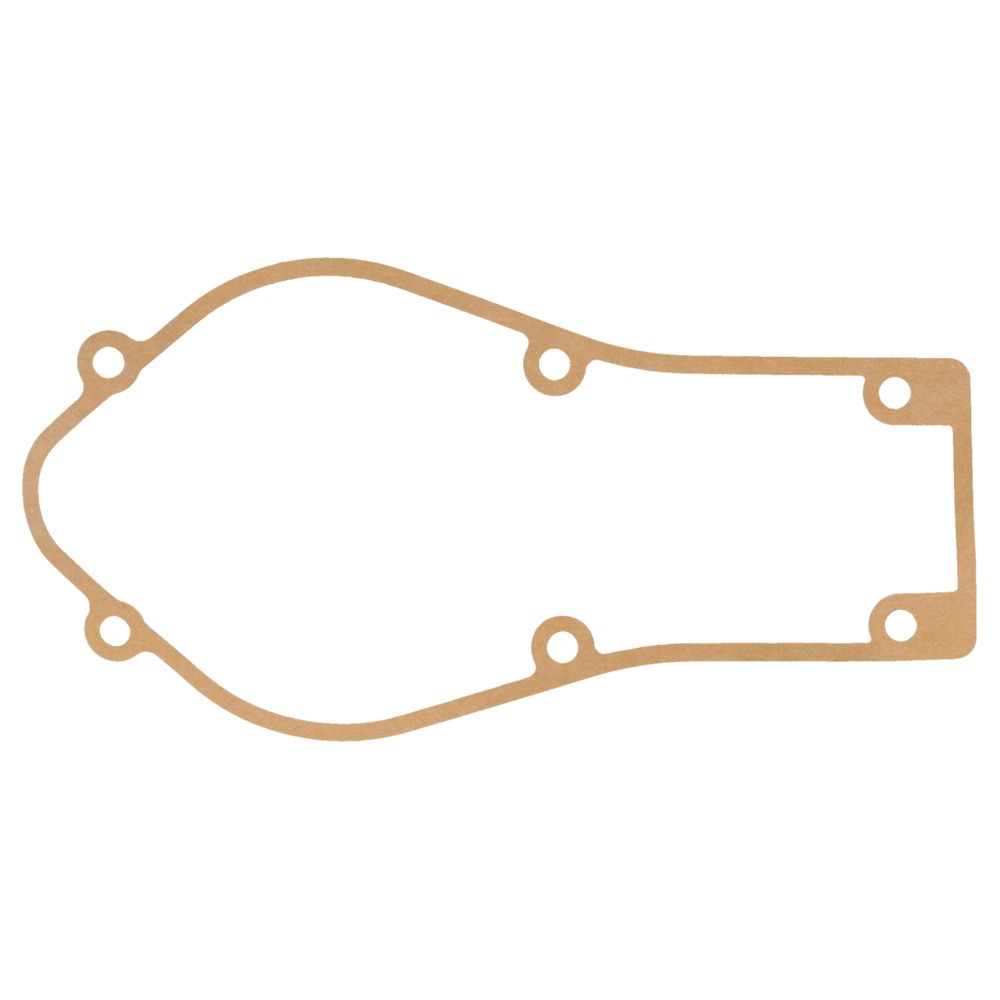

176	TK6601561 Available to backorder	Gear Case Packing	£1.86 £1.55
177	TK6601618 Available to backorder	Washer (Ea)	£0.80 £0.67
179	TK6698385 Available to backorder	Hex. Socket Hd. Bolt M4X12	£1.40 £1.17
