Tanaka TCH 22ECP2 (62-78) - Blade Assembly

Name: Tanaka TCH 22ECP2 (62-78) - Blade Assembly
SKU: tchtch22ecp26278blade-group
Price: 0.28 GBP
Availability: InStock

Part No. tchtch22ecp26278blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TCH 22ECP2 (62-78) - Blade Assembly

Description

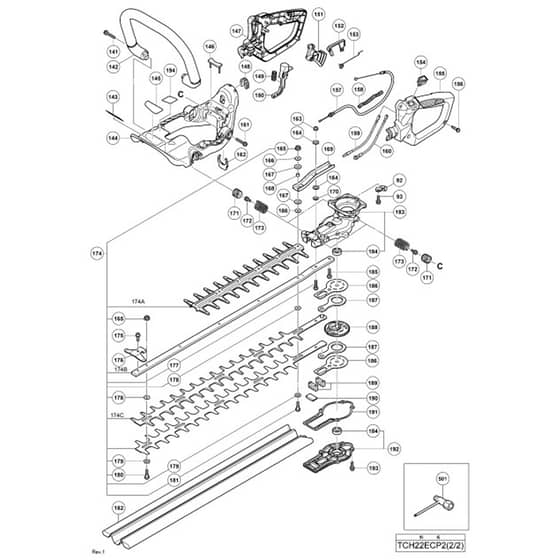

Tanaka TCH 22ECP2 (62-78) Hedge Trimmer - Blade Assembly Parts Diagram

	Part No.	Details
141	TK6698814 Available to backorder	Hex. Socket Hd. Bolt (W.Flange) M6X32	£1.39 £1.16
142	TK6698776 Available to backorder	Front Handle	£9.58 £7.98
144	TK6698777 Available to backorder	Frame	£17.48 £14.57
146	TK6698778 Available to backorder	Damper	£1.39 £1.16
147	TK6698880 Available to backorder	Handle A	£6.56 £5.47
149	TK6696348 Available to backorder	Spring (A)	£1.39 £1.16
150	TK6699055 Available to backorder	Lock Lever	£0.72 £0.60
151	TK6699053 Available to backorder	Throttle Lever	£1.08 £0.90
153	TK6696345 Available to backorder	Throttle Lever Spring	£1.39 £1.16
156	TK305812 Available to backorder	Tapping Screw (W.Flange) D4X16 (Black)	£2.17 £1.81
157	TK6698627 Available to backorder	Throttle Wire	£5.52 £4.60
158	TK6698738 Available to backorder	Protection Tube	£1.39 £1.16
159	TK6699058 Available to backorder	Stop Switch Cord	£1.46 £1.22
160	TK6699059 Available to backorder	Stop Switch Cord (B)	£1.86 £1.55
161	TK6698815 Available to backorder	Hex. Socket Hd. Bolt (W.Flange) M6X22	£1.39 £1.16
163	TK6695175 Available to backorder	Nylon Nut M6	£1.78 £1.48
164	TK6697455 In stock	Bolt Washer 6 2 For 780	£0.35 £0.29
165	TK6699108 Available to backorder	U-Nut M5 6 For 780	£5.52 £4.60
166	TK6699114 Available to backorder	Washer (A)	£1.46 £1.22
167	TK6699178 Available to backorder	Rubber Washer 2 For 620	£1.78 £1.48
168	TK6692244 Available to backorder	Collar 5.8 1 For 620	£1.78 £1.48
170	TK949432 Available to backorder	Bolt Washer M6 (10 Pcs.) 2 For 620	£2.69 £2.24
171	TK6698779 Available to backorder	Spring Holder	£2.71 £2.26
172	TK6698781 Available to backorder	Hex. Socket Hd. Bolt (W.Flange) M5X10	£1.39 £1.16
173	TK6698780 Available to backorder	Antivibration Spring	£3.14 £2.62
174	TK6600410 Available to backorder	Blade Ass'Y (780Mm) 1 Includ.165.177-1	£121.44 £101.20
174	TK6600013 Available to backorder	(174A) Lower Plate	£13.16 £10.97
174	TK6600016 Available to backorder	(174C) Hedge Trimmer Blade (780Mm)	£32.88 £27.40
174	TK6600014 Available to backorder	(174C) Hedge Trimmer Blade (620Mm)	£40.20 £33.50
174	TK6600398 Available to backorder	Blade Ass'Y (620Mm) 1 Includ.165.177-1	£114.00 £95.00
174	TK6600012 Available to backorder	(174B) Blade Guide (620Mm)	£17.76 £14.80

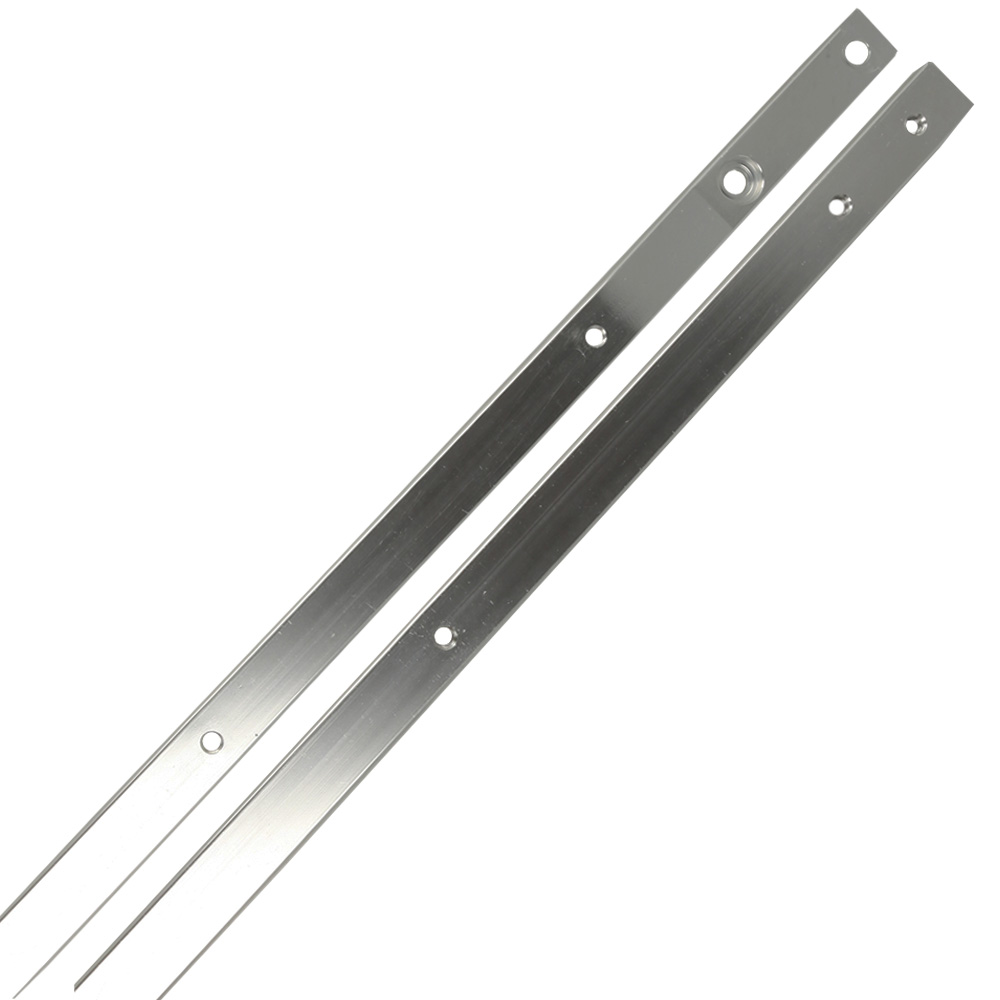

174	TK6600015 Available to backorder	(174B) Blade Guide (780Mm)	£14.48 £12.07
175	TK6699065 In stock	Hex. Socket Hd. Bolt (W.Flange) M5X8	£0.40 £0.33
176	TK6699062 In stock	Guard Plate	£1.39 £1.16
177	TK6699113 Available to backorder	Hex. Socket Hd. Bolt (W.Button) M6X25	£3.00 £2.50
179	TK6699111 Available to backorder	Washer M7 6 For 780	£1.46 £1.22
180	TK6699109 Available to backorder	Shoulder Button Bolt M5X25 5 For 780	£3.16 £2.63
181	TK6699179 Available to backorder	Shoulder Button Bolt M5X31	£2.71 £2.26
182	TK6698785 Available to backorder	Blade Case (For 780Mm)	£5.52 £4.60
182	TK6698948 Available to backorder	Blade Case (For 620Mm)	£5.52 £4.60

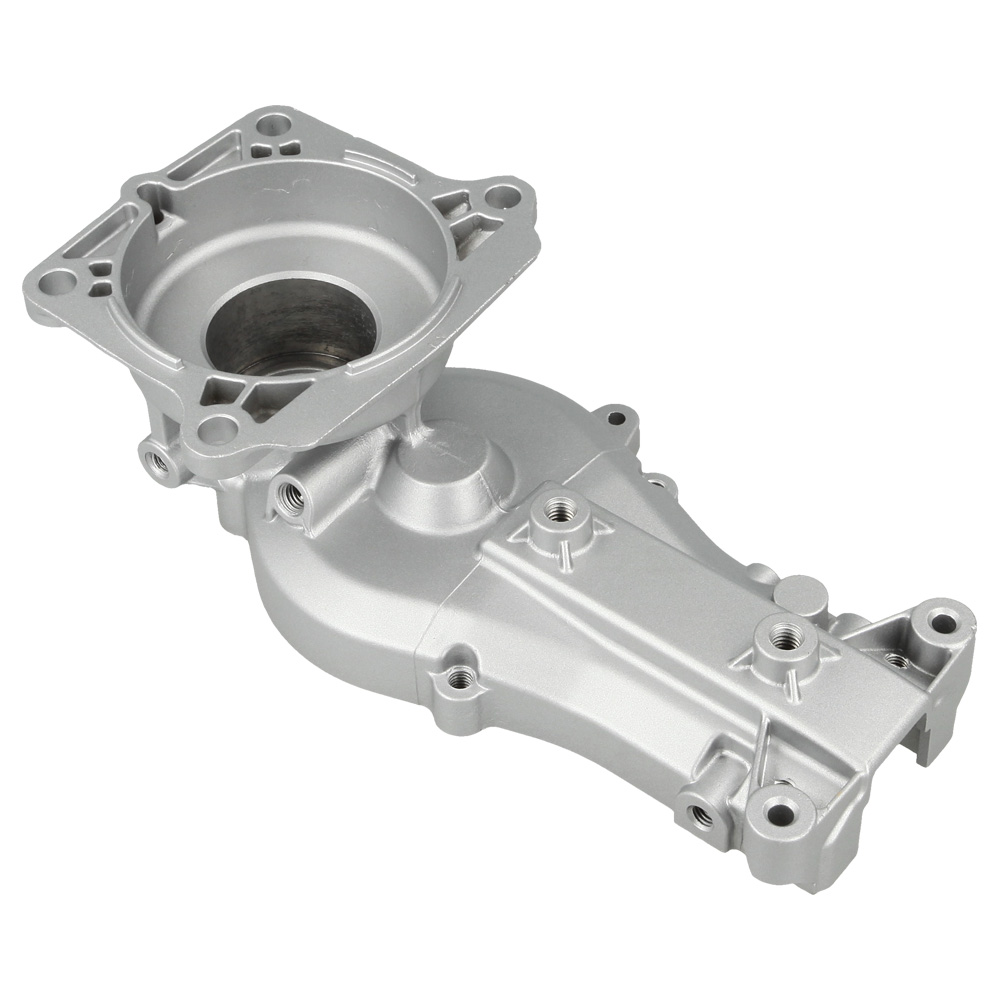

183	TK6699074 Available to backorder	Gear Case (A) Ass'Y 1 Includ.1	£65.04 £54.20
184	TK6684775 Available to backorder	Ball Bearing 608Zzc3	£8.59 £7.16
186	TK6600418 Available to backorder	Guide Plate (B)	£2.14 £1.78
188	TK6699066 Available to backorder	Gear 2	£33.91 £28.26
189	TK6699068 Available to backorder	Felt Packing (B)	£1.19 £0.99
190	TK6699067 Available to backorder	Felt Packing (C)	£1.00 £0.83
191	TK6699042 Available to backorder	Gear Case Packing	£1.32 £1.10
192	TK6699071 Available to backorder	Gear Case (B) Ass'Y 1 Includ.1	£19.14 £15.95
193	TK6699069 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X14	£0.34 £0.28
