Tanaka TCH 22ECP2(62 - 66 - 78) - Blade Assembly

Description

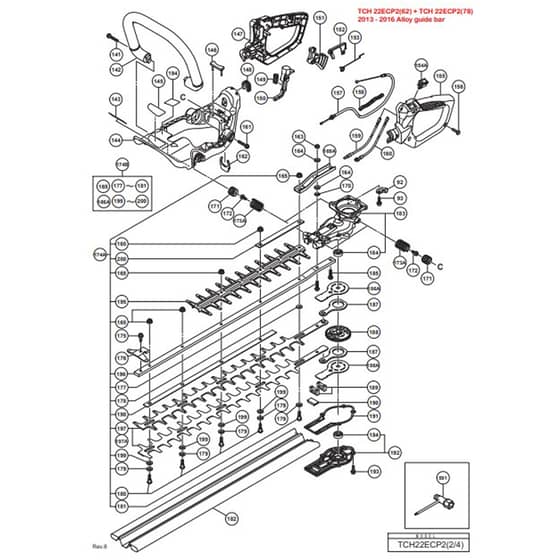

Tanaka TCH 22ECP2(62 - 66 - 78) Hedge Trimmer - Blade Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
141	TK6698814 Available to backorder	Hex. Socket Hd. Bolt (W.Flange) M6X32	£1.34 £1.12
142	TK6698776 Available to backorder	Front Handle	£9.26 £7.72
144	TK6698777 Available to backorder	Frame	£16.90 £14.08
146	TK6698778 Available to backorder	Damper	£1.34 £1.12
147	TK6698880 Available to backorder	Handle A	£6.35 £5.29
149	TK6696348 Available to backorder	Spring (A)	£1.70 £1.42
150	TK6699055 Available to backorder	Lock Lever	£0.70 £0.58
151	TK6699053 Available to backorder	Throttle Lever	£1.04 £0.87
153	TK6696345 Available to backorder	Throttle Lever Spring	£1.70 £1.42
156	TK305812 Available to backorder	Tapping Screw (W.Flange) D4X16 (Black)	£2.10 £1.75
157	TK6698627 Available to backorder	Throttle Wire	£5.34 £4.45
158	TK6698738 Available to backorder	Protection Tube	£1.34 £1.12
159	TK6699058 Available to backorder	Stop Switch Cord	£1.43 £1.19
160	TK6699059 Available to backorder	Stop Switch Cord (B)	£1.80 £1.50
161	TK6698815 Available to backorder	Hex. Socket Hd. Bolt (W.Flange) M6X22	£1.34 £1.12
162	TK6691122 Available to backorder	Clip	£1.70 £1.42
163	TK6695175 Available to backorder	Nylon Nut M6 3 For Steel Guide B	£1.73 £1.44
164	TK6697455 Available to backorder	Bolt Washer 6 1 For Steel Guide B	£0.36 £0.30
165	TK6697440 Available to backorder	( 165A) Flange Nut 6 5 For 780Mm Steel Guide B	£0.32 £0.27
165	TK6699108 Available to backorder	U-Nut M5 6 For 780Mm Alloy Guide B	£2.58 £2.15
169	TK6600892 Available to backorder	(169B) Support Plate 1 For Steel Guide B	£2.14 £1.78
170	TK949432 Available to backorder	Bolt Washer M6 (10 Pcs.) 2 For 620	£2.60 £2.17
171	TK6698779 Available to backorder	Spring Holder	£2.63 £2.19
172	TK6698781 Available to backorder	Hex. Socket Hd. Bolt (W.Flange) M5X10	£1.34 £1.12
173	TK6600480 Available to backorder	(173A) Antivibration Spring For Alloy Guide Bar 4 Replace The 4 Pcs. At Once Until 2.20	£4.62 £3.85
174	TK6600410 Available to backorder	( 174A) Blade Ass'Y (780Mm) For Alloy Guide Bar 1 Includ.165.177-181.195-199 Since 11.20	£121.40 £101.17
174	TK6600893 Available to backorder	( 174C) Cutter Ass'Y (660Mm) 1 Includ.165A.176A.177A.179A.180A.195	£172.37 £143.64
174	TK6600398 Available to backorder	( 174A) Blade Ass'Y (620Mm) For Alloy Guide Bar 1 Includ.165.177-181.195-200 Since 11.20	£114.05 £95.04
175	TK6699065 Available to backorder	Hex. Socket Hd. Bolt (W.Flange) M5X8	£0.46 £0.38
176	TK6699062 Available to backorder	Guard Plate 1 For Alloy Guide B	£1.61 £1.34
176	TK6687275 In stock	(176A) Guard Plate 1 For Steel Guide B	£3.46 £2.88
177	TK6699113 Available to backorder	Hex. Socket Hd. Bolt (W.Button) M6X25 1 For Alloy Guide B	£2.90 £2.42
177	TK6695075 Available to backorder	(177A) Hex. Hole Flush Bolt 6X25 1 For Steel Guide B	£1.72 £1.43
178	TK6699114 Available to backorder	Washer (A)	£1.70 £1.42
179	TK6699111 Available to backorder	Washer M7 5 For 620Mm Alloy Guide B	£1.70 £1.42
179	TK6687187 Available to backorder	( 179A) Washer 7 Black 6 For 780Mm Steel Guide B	£1.44 £1.20
180	TK6699109 Available to backorder	Shoulder Button Bolt M5X25 4 For Alloy Guide B	£2.78 £2.32
180	TK6697449 Available to backorder	( 180A) Fixing Bolt A M6 5 For Steel Guide B	£1.08 £0.90
181	TK6699179 Available to backorder	Shoulder Button Bolt M5X31	£2.62 £2.18
182	TK6698785 Available to backorder	Blade Case (For 780Mm)	£5.34 £4.45
182	TK6698948 Available to backorder	Blade Case (For 620Mm)	£5.34 £4.45
183	TK6699074 Available to backorder	Gear Case (A) Ass'Y 1 Includ.1	£65.09 £54.24
184	TK6684775 Available to backorder	Ball Bearing 608Zzc3	£8.30 £6.92
186	TK6600418 Available to backorder	(186A) Guide Plate (B)	£2.06 £1.72
188	TK6699066 Available to backorder	Gear 2	£32.78 £27.32
189	TK6699068 Available to backorder	Felt Packing (B)	£1.16 £0.97
190	TK6699067 Available to backorder	Felt Packing (C)	£0.96 £0.80
191	TK6699042 Available to backorder	Gear Case Packing	£1.54 £1.28
192	TK6699071 Available to backorder	Gear Case (B) Ass'Y 1 Includ.1	£18.50 £15.42
193	TK6699069 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X14	£0.38 £0.32
195	TK6600013 Available to backorder	Lower Plate 1 For Alloy Guide B	£12.72 £10.60
196	TK6687144 Available to backorder	( 196A) Cutter Guide 845L M6 1 For 780Mm Steel Guide B	£44.82 £37.35
196	TK6600012 Available to backorder	Blade Guide (620Mm) 1 For Alloy Guide B	£19.86 £16.55
196	TK6600015 Available to backorder	Blade Guide (780Mm) 1 For Alloy Guide B	£14.00 £11.67
196	TK6687147 Available to backorder	( 196A) Cutter Guide 734L M6 1 For 660Mm Steel Guide B	£36.68 £30.57
197	TK6687086 Available to backorder	( 197B) Cutter A (696.5L) 2 For 660Mm Steel Guide B	£55.70 £46.42
197	TK6600016 Available to backorder	Hedge Trimmer Blade (D) 780Mm 2 Since 11.2014 For Alloy Guide B	£31.79 £26.49
197	TK6687092 Available to backorder	( 197B) Cutter A (812L) 2 For 780Mm Steel Guide B	£77.46 £64.55
197	TK6600014 Available to backorder	Hedge Trimmer Blade (C) 620Mm 2 Since 11.2014 For Alloy Guide B	£42.35 £35.29
198	TK6600361 Available to backorder	Blade Liner 1 For 780	£9.90 £8.25
198	TK6600360 Available to backorder	Blade Liner	£6.41 £5.34
199	TK6699112 Available to backorder	Washer (B) 5 For 780	£1.43 £1.19
200	TK6600362 Available to backorder	Balancer	£3.98 £3.32
