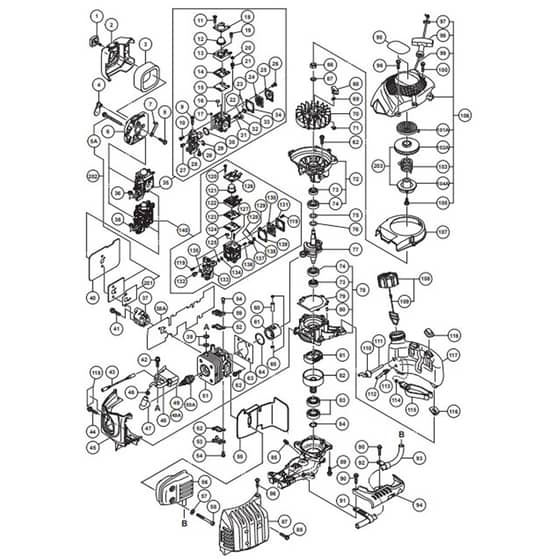

Tanaka TCH 22EAP2 Hedge Trimmer - Main Assembly Parts Diagram

	Part No.	Details
1	TK6698730 In stock	Cover Fixing Bolt Comp.	£4.27 £3.56
2	TK6698609 Available to backorder	Cleaner Cover	£2.71 £2.26
3	TK6690365 In stock	Cleaner Sponge	£1.88 £1.57
4	TK6698608 Available to backorder	Choke Valve	£1.39 £1.16
6	TK6698606 Available to backorder	Cleaner Body	£2.71 £2.26
7	TK6698607 Available to backorder	Choke Handle	£1.39 £1.16
13	TK6699097 Available to backorder	Primer Base 1 For Usa.Can (Till 9.2015 For Europ	£56.15 £46.79
14	TK6699096 In stock	Pump Gasket 1 For Usa.Can (Till 9.2015 For Europ	Was £6.60 £5.50 Special Price £4.58 £3.82
15	TK6699095 In stock	Pump Diaphragm 1 For Usa.Can (Till 9.2015 For Europ	Was £11.64 £9.70 Special Price £8.14 £6.78
21	TK6699105 Available to backorder	Adjusting Screw (Main Mixture) 1 For Usa.Can (Till 9.2015 For Europ	£15.11 £12.59
24	TK6699091 Available to backorder	Metering Diaphragm 1 For Usa.Can (Till 9.2015 For Europ	£15.89 £13.24
25	TK6699093 Available to backorder	Metering Cover 1 For Usa.Can (Till 9.2015 For Europ	£11.42 £9.52
31	TK6699081 Available to backorder	Inlet Needle Valve 1 For Usa.Can (Till 9.2015 For Europ	£12.68 £10.57
34	TK6699092 Available to backorder	Metering Gasket 1 For Usa.Can (Till 9.2015 For Europ	£7.78 £6.48
35	TK6600875 In stock	Carburetor Ass'Y 1 Includ.9-34 For Usa.C	£71.96 £59.97
37	TK6698387 Available to backorder	Carburetor Insulator	£4.12 £3.43
38	TK6600456 Available to backorder	(38A) Intake Paking (A)	£3.80 £3.17
40	TK6698816 Available to backorder	Carburetor Packing	£1.39 £1.16
41	TK6698844 Available to backorder	Seal Lock Hex. Socket Bolt (W.Washers)M5	£1.39 £1.16
42	TK6698388 Available to backorder	Hex. Socket Hd. Bolt (W.Washers) M4X18	£2.03 £1.69
43	TK6699060 Available to backorder	Cord	£1.46 £1.22
44	TK6698879 Available to backorder	Seal Lock Hex. Socket Hd. Bolt M4X12	£1.39 £1.16
45	TK6698871 Available to backorder	Cylinder Cover	£5.52 £4.60
46	TK6699180 Available to backorder	Metal Of Plug Cap (60) (B)	£0.86 £0.72
47	TK6698548 Available to backorder	Plug Cap	£2.71 £2.26
48	TK6699175 Available to backorder	Cord Insulation Tube L60	£0.34 £0.28
49	TK6600890 Available to backorder	(49A) Ignition Coil 1 For Euro	£54.14 £45.12
50	6521 In stock	( 50A) Spark Plug Ass'Y Bmr7A	£3.48 £2.90
51	TK6698597 Available to backorder	Cylinder	£43.86 £36.55
52	TK6696534 Available to backorder	Cover Packing	£1.39 £1.16
53	TK6696535 Available to backorder	Intake Cover (A)	£1.39 £1.16
55	TK6698617 Available to backorder	Heat Protection Panel	£2.71 £2.26
57	TK949432 Available to backorder	Bolt Washer M6 (10 Pcs.)	£2.69 £2.24
58	TK6696819 Available to backorder	Hex. Socket Hd. Bolt M6X55	£1.39 £1.16
59	TK6696536 Available to backorder	Intake Cover (B)	£1.39 £1.16
61	TK6696531 Available to backorder	Piston	£9.11 £7.59
62	TK6684586 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X18	£1.78 £1.48
63	TK6696530 Available to backorder	Cylinder Packing	£1.39 £1.16
64	TK6686118 Available to backorder	Piston Ring	£7.16 £5.97
65	TK6684590 Available to backorder	Cir Clip	£1.79 £1.49
66	TK6696879 Available to backorder	Flywheel Nut M7	£1.39 £1.16
67	TK6696880 Available to backorder	Bolt Washer D7	£1.39 £1.16
68	TK6698603 Available to backorder	Starter Pawl	£1.39 £1.16
69	TK6685335 Available to backorder	Starter Pawl Spring	£1.39 £1.16
70	TK6698601 Available to backorder	Magneto Rotor	£20.60 £17.17
71	TK6685336 Available to backorder	Retaining Ring D4	£1.39 £1.16
72	TK6698872 Available to backorder	Crank Case (B) Ass'Y 1 Includ.73.	£22.99 £19.16
73	TK6684607 Available to backorder	Oil Seal Tb 12227	£3.61 £3.01
74	TK6684608 Available to backorder	Ball Bearing 6001 C3	£7.16 £5.97
75	TK6696946 Available to backorder	Shim T0.2	£1.39 £1.16
76	TK6696945 Available to backorder	Shim T0.3	£1.39 £1.16
77	TK6699043 Available to backorder	Crank Shaft	£56.92 £47.43
78	TK6698729 Available to backorder	Crank Case (A) Ass'Y 1 Includ.73.74.	£27.17 £22.64
79	TK6696539 Available to backorder	Crank Case Packing	£1.39 £1.16
82	TK6699040 Available to backorder	Clutch Drum	£17.34 £14.45
83	TK6698740 Available to backorder	Ball Bearing 6002Zc3	£5.52 £4.60
84	TK939544 Available to backorder	Retaining Ring For D15 Shaft (10 Pcs.)	£1.09 £0.91
85	TK6688643 Available to backorder	Grease Nipple Comp.	£1.78 £1.48
86	TK302089 Available to backorder	Tapping Screw (W.Flange) D5X20 (Black)	£3.72 £3.10
87	TK6698876 Available to backorder	Muffler Protector	£24.06 £20.05
89	TK6695495 Available to backorder	Hex. Hole Bolt 6X18.S	£1.78 £1.48
90	TK6698988 Available to backorder	Hex. Socket Hd. Bolt (W.Button) M5X20	£1.39 £1.16
91	TK6699047 Available to backorder	Fixation Plate (A)	£1.20 £1.00
92	TK6699048 Available to backorder	Fixation Plate (B)	£0.86 £0.72
94	TK6699037 Available to backorder	Exhaust Cover	£2.59 £2.16
96	TK6698878 Available to backorder	Tapping Screw D4.5X16	£1.39 £1.16
97	TK6685189 Available to backorder	Plate	£1.78 £1.48
98	TK6693227 Available to backorder	Starter Handle	£5.38 £4.48
99	TK6693168 In stock	Rope	£3.71 £3.09
101	TK6684675 In stock	(101A) Recoil Spring	£9.70 £8.08
102	TK6600995 Available to backorder	(102A) Starter Pulley 1 Since 1.20	£4.32 £3.60
103	TK6685183 Available to backorder	Damper Spring	£7.16 £5.97
104	TK6600996 Available to backorder	(104A) Cam Plate 1 Since 1.20	£4.12 £3.43
105	TK6684679 In stock	Set Screw	£1.78 £1.48
107	TK6698624 Available to backorder	Air Deflector	£1.39 £1.16
108	TK6685049 In stock	Fuel Tank Cap Ass'Y 1 Includ.1	£11.64 £9.70
111	TK6692417 Available to backorder	Fuel Pipe	£1.78 £1.48
112	TK6601399 In stock	Fuel Pipe (Pink)	£4.39 £3.66
114	TK6696949 Available to backorder	Clip	£1.34 £1.12
116	TK6698615 Available to backorder	Cushion Rubber	£3.49 £2.91
117	TK6698613 Available to backorder	Tank	£7.37 £6.14
121	TK6684689 In stock	Primer Pump 1 Since 10.2015 For Euro	£7.63 £6.36
125	TK6684700 Available to backorder	Inlet Screen 1 Since 10.2015 For Euro	£3.58 £2.98
129	TK6685219 Available to backorder	Hinge Pin 1 Since 10.2015 For Euro	£1.78 £1.48
130	TK6600881 Available to backorder	Metering Diaphragm 1 Since 10.2015 For Euro	£26.57 £22.14
131	TK6685222 Available to backorder	Diaphragm Cover-Metering 1 Since 10.2015 For Euro	£7.16 £5.97
132	TK6684697 Available to backorder	Swivel 1 Since 10.2015 For Euro	£5.38 £4.48
134	TK6684696 Available to backorder	Stop Ring 1 Since 10.2015 For Euro	£1.78 £1.48
136	TK6685215 Available to backorder	Needle Valve 1 Since 10.2015 For Euro	£8.59 £7.16
202	TK6600891 Available to backorder	Carburetor Heat Panel Ass'Y	£5.20 £4.33
