Tanaka TCH 22EAP2 - Blade Assembly

Name: Tanaka TCH 22EAP2 - Blade Assembly
SKU: tchtch22eap2blade-group
Price: 0.4 GBP
Availability: InStock

Part No. tchtch22eap2blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

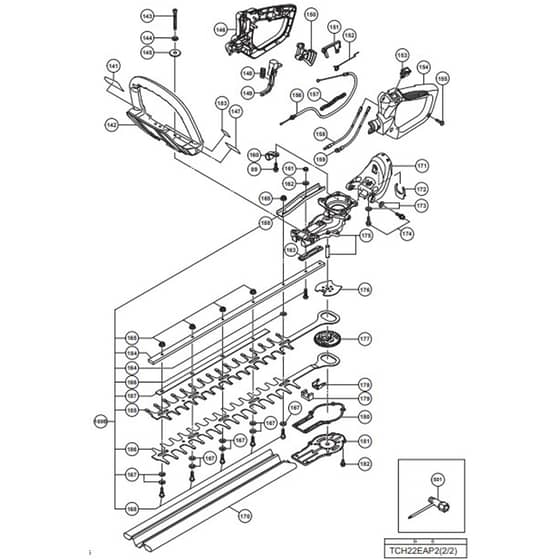

Tanaka TCH 22EAP2 Hedge Trimmer - Blade Assembly Parts Diagram

	Part No.	Details
142	TK6699079 Available to backorder	Handle	£8.88 £7.40
143	TK6698885 Available to backorder	Seal Lock Hex. Socket Hd. Bolt M5X40	£1.39 £1.16
144	TK6698884 Available to backorder	Spring Washer M5	£1.39 £1.16
145	TK6698749 Available to backorder	Brake Axis Washer	£1.39 £1.16
146	TK6698880 Available to backorder	Handle A	£6.56 £5.47
148	TK6696348 Available to backorder	Spring (A)	£1.39 £1.16
149	TK6699055 Available to backorder	Lock Lever	£0.72 £0.60
150	TK6699053 Available to backorder	Throttle Lever	£1.08 £0.90
152	TK6696345 Available to backorder	Throttle Lever Spring	£1.39 £1.16
155	TK305812 Available to backorder	Tapping Screw (W.Flange) D4X16 (Black)	£2.17 £1.81
156	TK6698627 Available to backorder	Throttle Wire	£5.52 £4.60
157	TK6698738 Available to backorder	Protection Tube	£1.39 £1.16
158	TK6699058 Available to backorder	Stop Switch Cord	£1.46 £1.22
159	TK6699059 Available to backorder	Stop Switch Cord (B)	£1.86 £1.55
160	TK6699049 Available to backorder	Fixation Plate (B)	£1.08 £0.90
162	TK6684864 Available to backorder	Small Washer 5	£1.78 £1.48
164	TK9A0.53050.250 Available to backorder	Hex. Socket Hd. Bolt (W.Button) M5X25	£3.00 £2.50
165	TK6699108 Available to backorder	U-Nut M5	£5.52 £4.60
166	TK6699112 Available to backorder	Washer (B)	£1.46 £1.22
167	TK6699111 Available to backorder	Washer M7	£1.46 £1.22
168	TK6699109 Available to backorder	Shoulder Button Bolt M5X25	£3.16 £2.63
171	TK6699041 Available to backorder	Handle Bracket	£2.66 £2.22
173	TK6685407 Available to backorder	Bolt Washer D5	£1.39 £1.16
174	TK6699044 Available to backorder	Seal Lock Hex. Socket Bolt (W.Washers)M5	£0.64 £0.53
175	TK6699057 Available to backorder	Gear Case (A)	£63.36 £52.80
177	TK6699038 Available to backorder	Gear 2 (Ea)	£30.71 £25.59

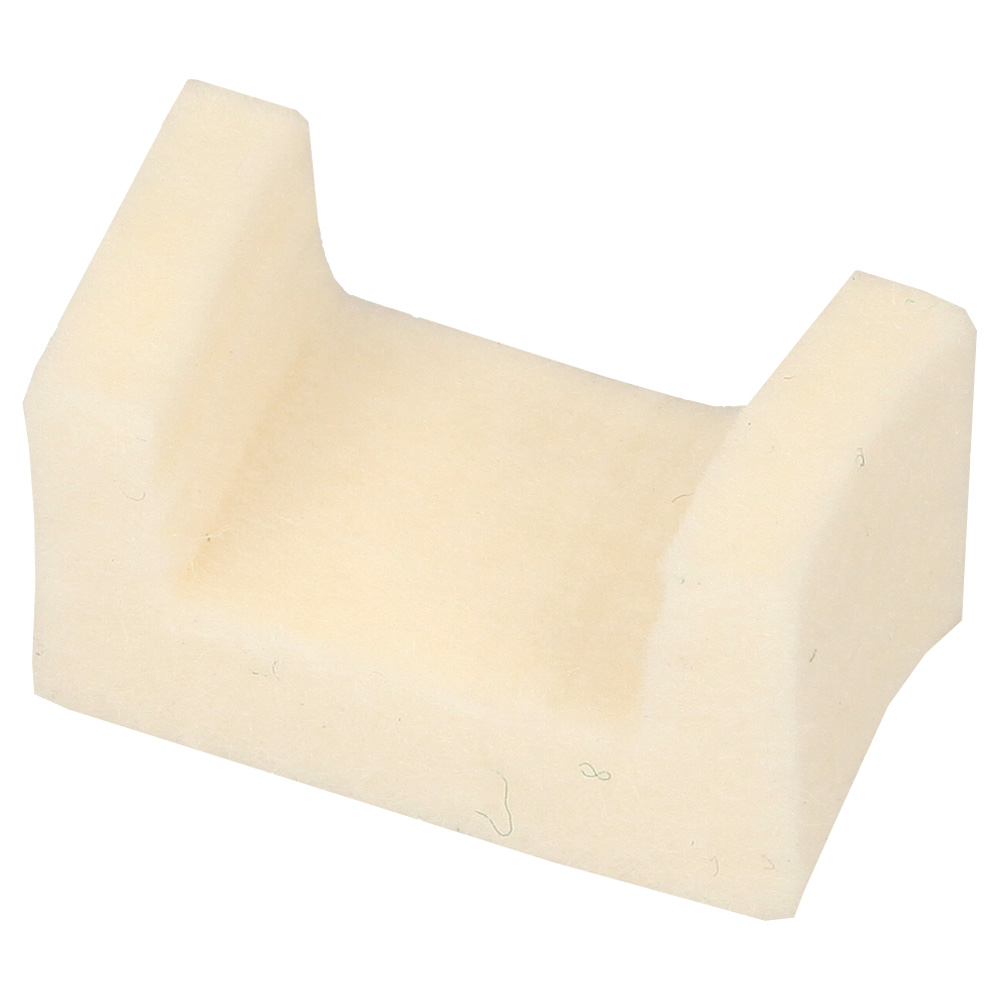

179	TK6699046 Available to backorder	Felt Packing (A)	£1.20 £1.00
180	TK6699042 Available to backorder	Gear Case Packing	£1.32 £1.10
182	TK6699176 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X12	£0.48 £0.40

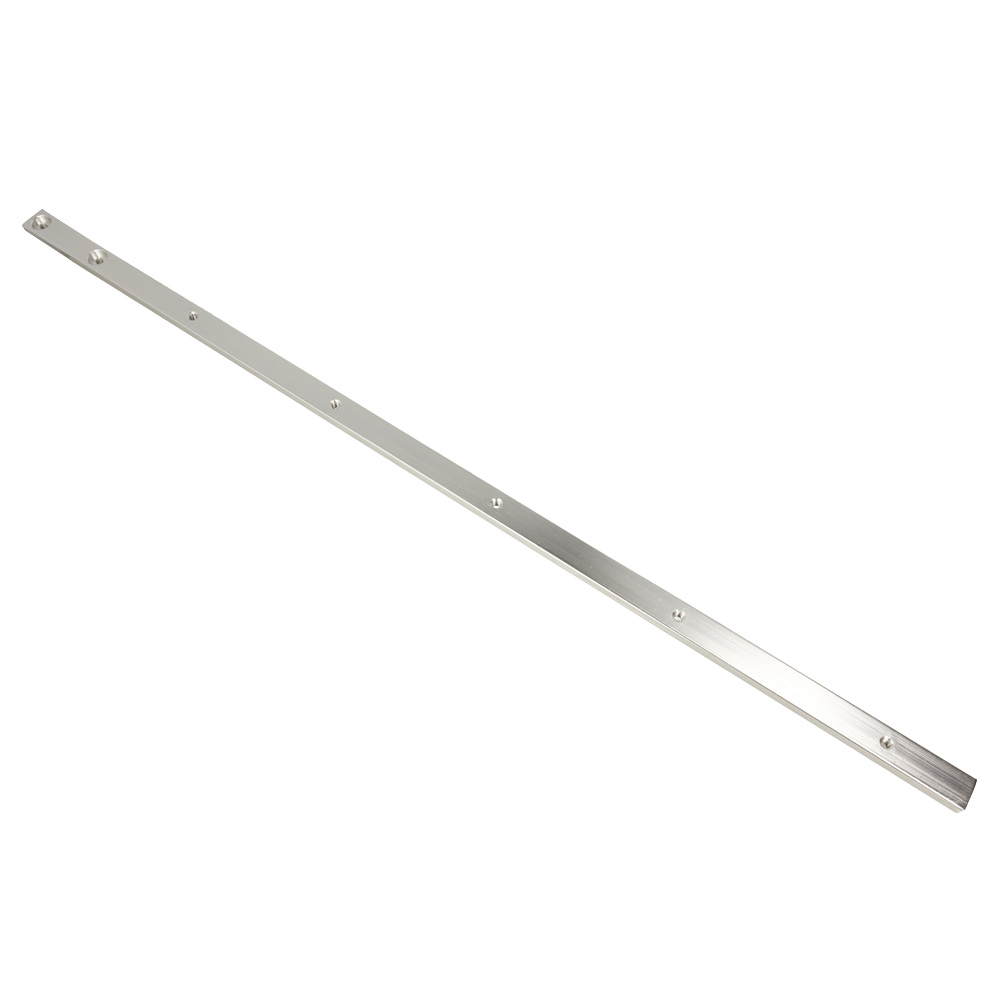

184	TK6600009 Available to backorder	Blade Guide	£15.14 £12.62
185	TKTCHLINERKIT-50 Available to backorder	Hedge Trimmer Blade (A)	£34.30 £28.58
186	TK6600011 Available to backorder	Hedge Trimmer Blade (B)	£35.69 £29.74

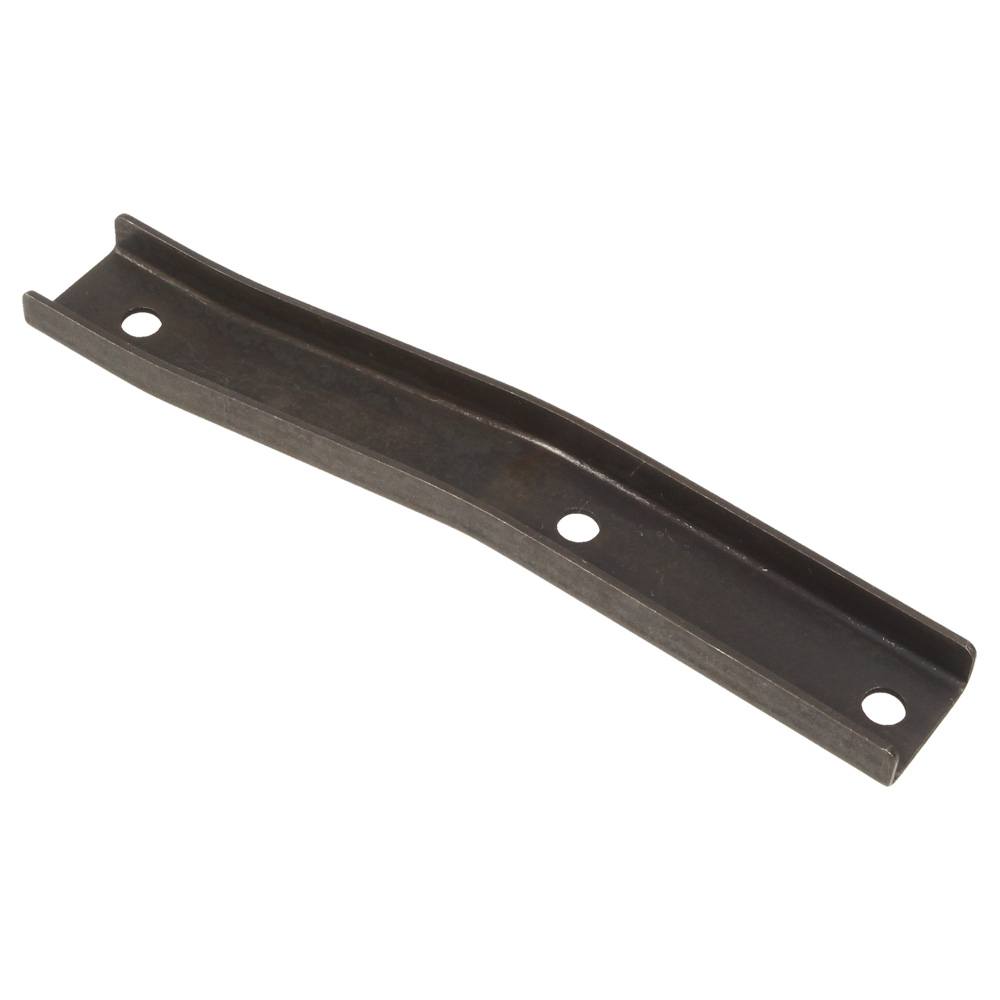

188	TK6600417 Available to backorder	Support Plate	£1.60 £1.33
201	TK6698405 Available to backorder	Carburetor Packing 1 For Euro	£3.86 £3.22
202	TK6600891 Available to backorder	Carburetor Heat Panel Ass'Y 1 Includ.5A.201 For Euro	£5.20 £4.33
