Description

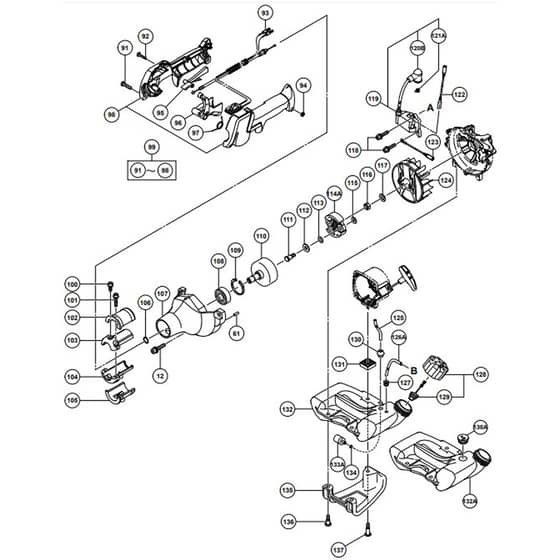

Tanaka TCG-27EBS Brushcutter - Flywheel Assembly Parts Diagram

Ref. Img. Part No. Details
  93 Switch Wire Set 1 For (S TK6699197
Switch Wire Set 1 For (S
Out of stock
£18.23 £15.19

  94 Nut M5 2 For (S TK6699196
Nut M5 2 For (S
Out of stock
£1.49 £1.24

  95 Stop Lever 1 For (S TK6699192
Stop Lever 1 For (S
Out of stock
£2.94 £2.45

  96 Long Lever 1 For (S TK6699191
Long Lever 1 For (S
Out of stock
£4.50 £3.75

  97 Return Spring 1 For (S TK6699193
Return Spring 1 For (S
Out of stock
£1.49 £1.24

  98 Stay Set 1 For (S TK6699190
Stay Set 1 For (S
Out of stock
£33.23 £27.69

  99 Throttle Lever (A) Ass'Y 1 Includ.91-98 For (S TK6699133
Throttle Lever (A) Ass'Y 1 Includ.91-98 For (S
Out of stock
£42.19 £35.16

  100 Hex. Socket Hd. Bolt (W.Sp.Washer) M5X12 TK6699176
Hex. Socket Hd. Bolt (W.Sp.Washer) M5X12
Out of stock
£0.80 £0.67

  101 Hex. Hole Bolt 5X22.S TK6695492
Hex. Hole Bolt 5X22.S
Out of stock
£1.73 £1.44

  102 Anti Vibe Rubber (A) TK6696963
Anti Vibe Rubber (A)
Out of stock
£2.63 £2.19

  103 Pipe Holder (A) TK6698643
Pipe Holder (A)
Out of stock
£2.63 £2.19

  104 Pipe Holder (B) TK6698644
Pipe Holder (B)
Out of stock
£2.63 £2.19

  105 Anti Vibe Rubber (B) TK6696964
Anti Vibe Rubber (B)
Out of stock
£2.63 £2.19

  106 Retaining Ring For D12 Shaft (10 Pcs.) TK939542
Retaining Ring For D12 Shaft (10 Pcs.)
Out of stock
£1.28 £1.07

  107 Fan Case (A) TK6699433
Fan Case (A)
Out of stock
£29.54 £24.62

  108 Ball Bearing 6301Zzc3 TK6699435
Ball Bearing 6301Zzc3
Out of stock
£4.56 £3.80

  109 Retaining Ring 37Mm TK322813
Retaining Ring 37Mm
Out of stock
£1.63 £1.36

  110 Clutch Shaft TK6699434
Clutch Shaft
Out of stock
£16.55 £13.79

  111 Step Bolt TK6689627
Step Bolt
Out of stock
£1.76 £1.47

  112 Bent Washer 8 TK6684648
Bent Washer 8
Out of stock
£1.73 £1.44

  113 Clutch Plate (A) TK6696546
Clutch Plate (A)
Out of stock
£1.34 £1.12

  114 (114A) Clutch TK6601431
(114A) Clutch
Out of stock
£12.96 £10.80

  115 Clutch Washer (B) TK6699131
Clutch Washer (B)
Out of stock
£0.80 £0.67

  116 Flywheel Nut TK6685337
Flywheel Nut
Out of stock
£1.34 £1.12

  117 Bolt Washer M8 (Black) TK323212
Bolt Washer M8 (Black)
Out of stock
£2.88 £2.40

  118 Hex. Socket Hd. Bolt (W.Washers) M4X18 TK6698388
Hex. Socket Hd. Bolt (W.Washers) M4X18
Out of stock
£1.34 £1.12

  119 Ignition Coil Ass'Y 1 Includ.120B.12 TK6699436
Ignition Coil Ass'Y 1 Includ.120B.12
Out of stock
£52.08 £43.40

  124 Magneto Rotor Comp. TK6698396
Magneto Rotor Comp.
Out of stock
£11.51 £9.59

  128 Fuel Tank Cap Ass'Y 1 Includ.1 TK6685049
Fuel Tank Cap Ass'Y 1 Includ.1
In stock
£11.28 £9.40

  130 (130A) Fuel Grommet 1 Since 8.20 TK6600358
(130A) Fuel Grommet 1 Since 8.20
Out of stock
£1.66 £1.38

  131 Spacer TK6699558
Spacer
Out of stock
£1.03 £0.86

  132 (132A) Tank (C) 1 Since 8.20 TK6600354
(132A) Tank (C) 1 Since 8.20
Out of stock
£6.18 £5.15

  132 Tank (B) 1 Till 7.20 TK6600317
Tank (B) 1 Till 7.20
Out of stock
£15.80 £13.17

  133 (133A) Pump Filter TK6600351
(133A) Pump Filter
Out of stock
£4.88 £4.07

  134 Clip TK6696949
Clip
Out of stock
£1.34 £1.12

  135 Stand TK6694787
Stand
Out of stock
£5.38 £4.48

  136 Flange Bolt TK6696557
Flange Bolt
Out of stock
£1.34 £1.12

  137 Bolt (W.Flange) L27.8 TK6698991
Bolt (W.Flange) L27.8
Out of stock
£1.76 £1.47


Description

Tanaka TCG-27EBS Brushcutter - Flywheel Assembly Parts Diagram
