Tanaka TCG-27EBS - Cylinder Assembly

Name: Tanaka TCG-27EBS - Cylinder Assembly
SKU: tcgtcg27ebscylinder-group
Price: 0.83 GBP
Availability: InStock

Part No. tcgtcg27ebscylinder-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Tanaka TCG-27EBS Brushcutter - Cylinder Assembly Parts Diagram

	Part No.	Details

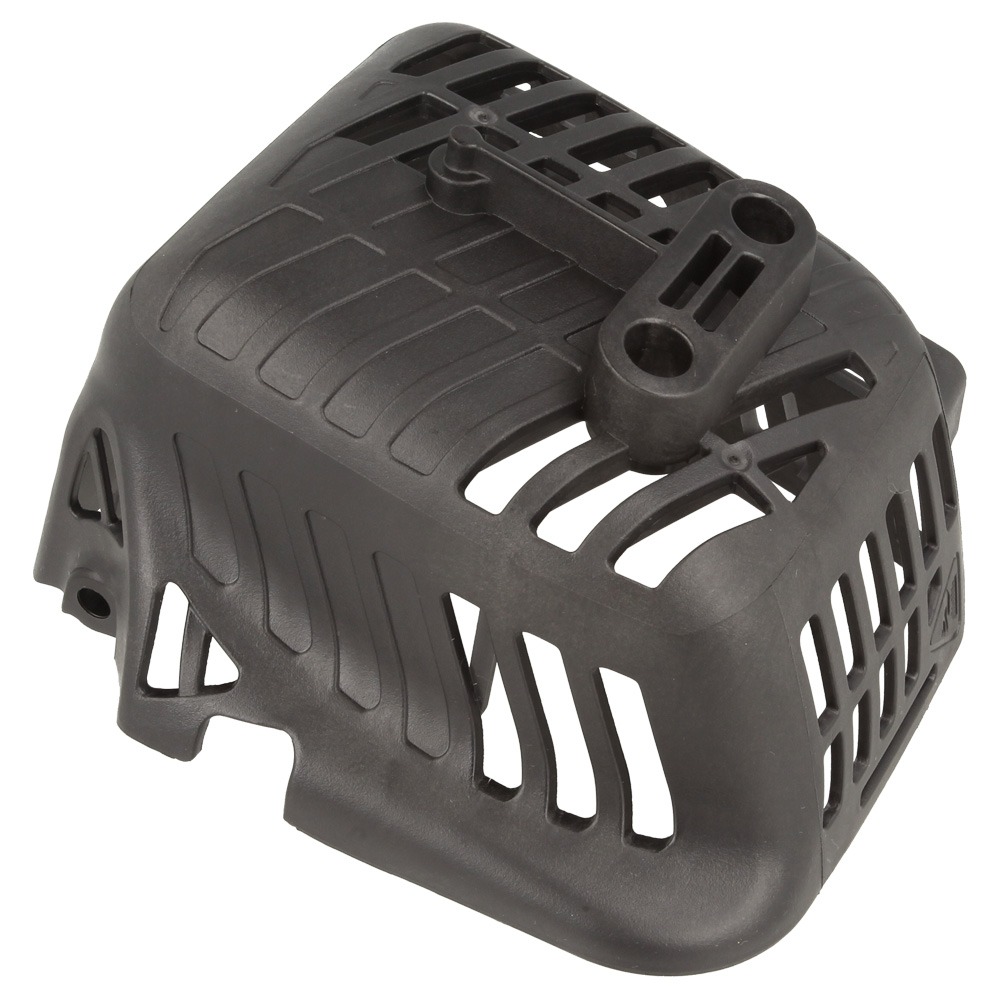

2	TK6600322 Available to backorder	Muffler Cover 1 For Euro	£13.63 £11.36
3	TK6698384 Available to backorder	Hex. Socket Hd. Bolt M6X65 2 For Euro	£1.39 £1.16
3	TK6696819 Available to backorder	Hex. Socket Hd. Bolt M6X55	£1.39 £1.16
4	TK949432 Available to backorder	Bolt Washer M6 (10 Pcs.)	£2.69 £2.24
6	TK6600324 Available to backorder	Heat Protection Panel	£2.66 £2.22
10	TK6695508 Available to backorder	Hex. Socket Hd. Bolt (W.Flange) M4X18	£1.78 £1.48
13	6521 In stock	Spark Plug Ass'Y Bmr7A 1 For A	£3.48 £2.90
14	TK6698365 Available to backorder	Cover Packing	£1.39 £1.16
16	TK6698385 Available to backorder	Hex. Socket Hd. Bolt M4X12	£1.45 £1.21
19	TK6698480 Available to backorder	Cylinder	£59.14 £49.28
20	TK6699437 Available to backorder	Intake Packing	£1.00 £0.83
21	TK6698387 Available to backorder	Carburetor Insulator	£4.12 £3.43
22	TK6698844 Available to backorder	Seal Lock Hex. Socket Bolt (W.Washers)M5	£1.39 £1.16
23	TK6698405 Available to backorder	Carburetor Packing	£3.86 £3.22
24	TK6691337 Available to backorder	Swivel Cap	£1.78 £1.48
26	TK6699287 Available to backorder	Cable Adjust Stay	£9.17 £7.64
28	TK6684696 Available to backorder	Stop Ring	£1.78 £1.48
29	TK6684692 Available to backorder	Pump Gasket	£26.83 £22.36
30	TK6684693 In stock	Pump Diaphragm	£7.43 £6.19
31	TK6691242 Available to backorder	Pump Plate	£3.58 £2.98
32	TK6685222 Available to backorder	Diaphragm Cover-Metering	£7.16 £5.97
33	TK6691312 Available to backorder	Set Screw	£1.78 £1.48
35	TK6684695 Available to backorder	O-Ring	£3.58 £2.98
37	TK6691234 Available to backorder	Circuit Plate	£5.38 £4.48
38	TK6696828 Available to backorder	Pump Body Comp.	£26.05 £21.71
42	TK6601444 Available to backorder	(42B) Fuel Pipe	£1.16 £0.97
43	TK6696549 In stock	Air Cleaner Housing	£12.52 £10.43
44	TK6685139 In stock	Priming Pump Comp.	£7.67 £6.39
45	TK6690347 In stock	Cleaner Element	£7.43 £6.19
48	TK6698366 Available to backorder	Cylinder Packing	£1.39 £1.16
49	TK6686121 Available to backorder	Piston Ring	£7.16 £5.97

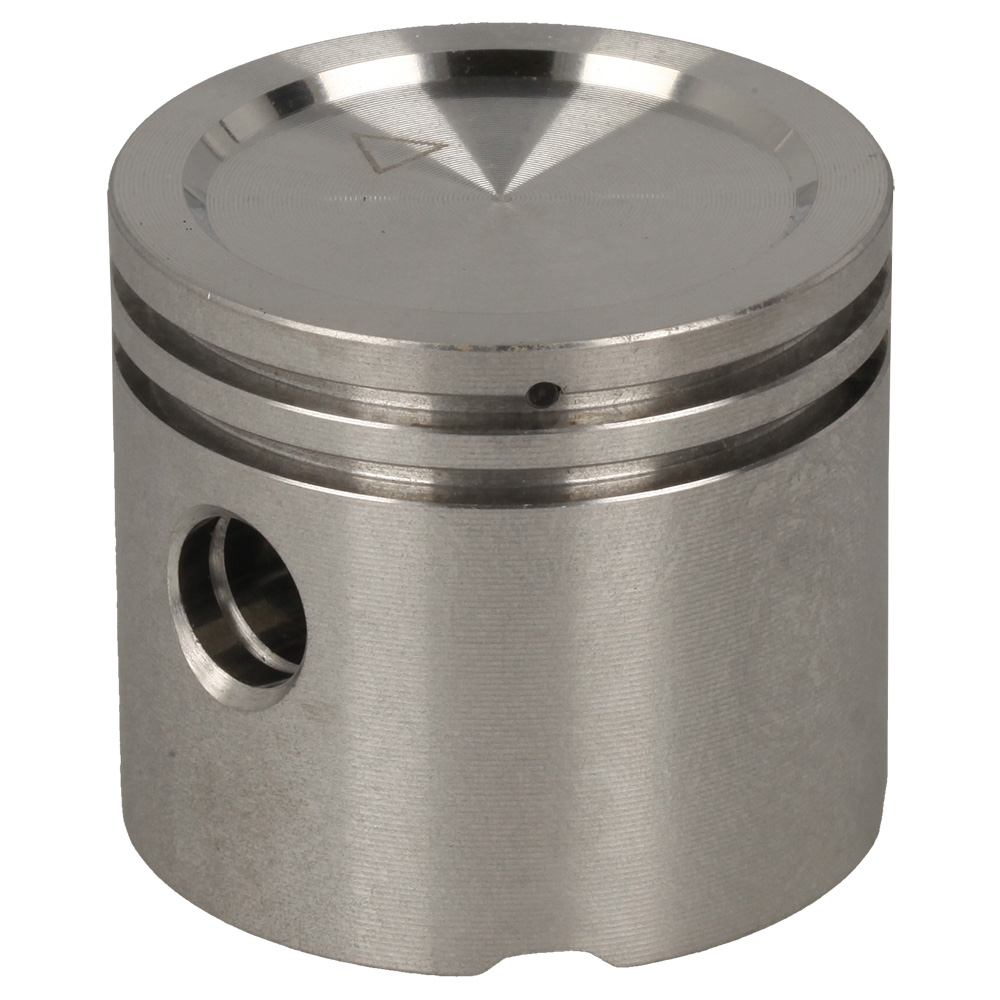

50	TK6699432 Available to backorder	Piston	£14.88 £12.40
51	TK6684590 Available to backorder	Cir Clip	£1.79 £1.49
52	TK6684591 Available to backorder	Piston Pin	£3.58 £2.98
53	TK6684586 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X18	£1.78 £1.48
55	TK6698371 Available to backorder	Crank Case Packing	£1.39 £1.16
56	TK6684607 Available to backorder	Oil Seal Tb 12227	£3.61 £3.01
57	TK6684608 Available to backorder	Ball Bearing 6001 C3	£7.16 £5.97
59	TK6699438 Available to backorder	Crank Shaft	£60.48 £50.40
60	TK6698369 Available to backorder	Crank Case (A) Ass'Y	£24.92 £20.77
62	TK6684681 Available to backorder	Starter Pulley Ass'Y 1 Includ.63-	£10.01 £8.34
63	TK6685101 Available to backorder	D4E Retaining Ring	£1.78 £1.48
64	TK6684684 Available to backorder	Starter Pawl Spring	£3.58 £2.98
65	TK6684685 Available to backorder	Starter Pawl	£3.58 £2.98
66	TK6601570 In stock	(66A) Recoil Starter Body Ass'Y 1 Includ.67-71.73.	£36.41 £30.34
67	TK6684679 In stock	Set Screw	£1.78 £1.48
68	TK6699996 Available to backorder	Cam Plate	£5.26 £4.38
69	TK6684677 In stock	Damper Spring	£8.90 £7.42
70	TK6699997 Available to backorder	Starter Rope Reel	£9.29 £7.74
71	TK6684675 In stock	Recoil Spring	£9.70 £8.08
73	TK6684674 Available to backorder	Starter Rope 3.5X860	£3.58 £2.98
74	TK6693224 Available to backorder	Starter Handle	£3.24 £2.70
