Tanaka TCG-24ECP-WA - Flywheel Assembly

Name: Tanaka TCG-24ECP-WA - Flywheel Assembly
SKU: tcgtcg24ecpwaflywheel-group
Price: 0.58 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

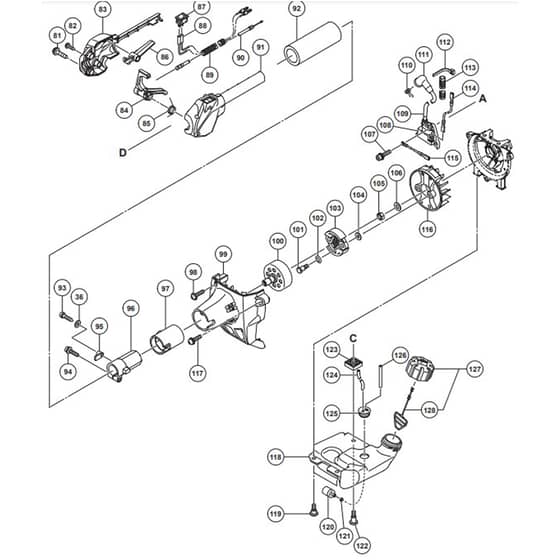

Tanaka TCG-24ECP-WA Brushcutter - Flywheel Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
82	TK305812 Available to backorder	Tapping Screw (W.Flange) D4X16 (Black)	£2.10 £1.75

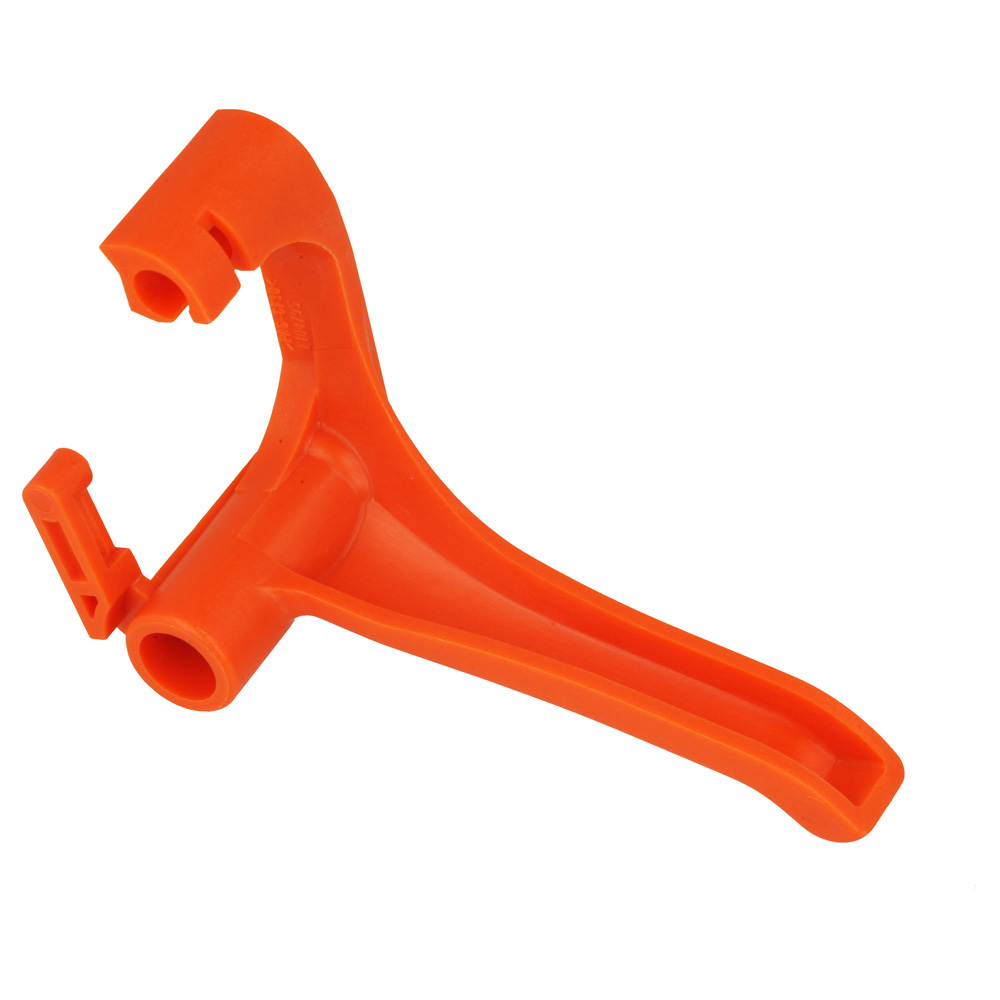

84	TK6600568 In stock	Throttle Lever	£1.90 £1.58
85	TK6696489 Available to backorder	Spring (A)	£1.34 £1.12

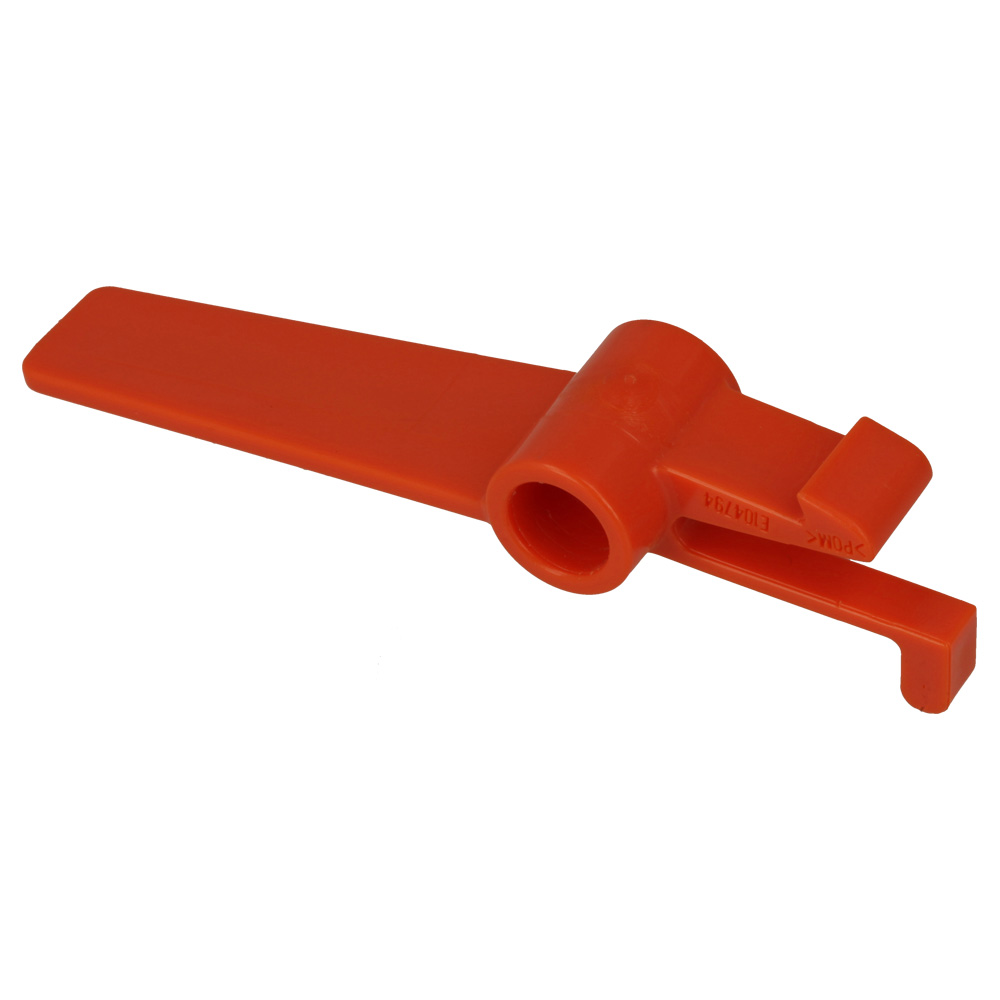

86	TK6600567 Available to backorder	Trigger Lockout	£0.70 £0.58
90	TK6600569 Available to backorder	Throttle Wire Comp	£2.06 £1.72
91	TK6600565 Available to backorder	Handle (A)	£3.16 £2.63
95	TK6689664 Available to backorder	Metal Fitting	£4.55 £3.79
96	TK6600551 Available to backorder	Pipe Holder	£4.16 £3.47
97	TK6600552 Available to backorder	Damper (Holder)	£4.25 £3.54
98	TK6698878 Available to backorder	Tapping Screw D4.5X16	£1.34 £1.12
99	TK6601378 Available to backorder	Fan Case	£53.26 £44.38

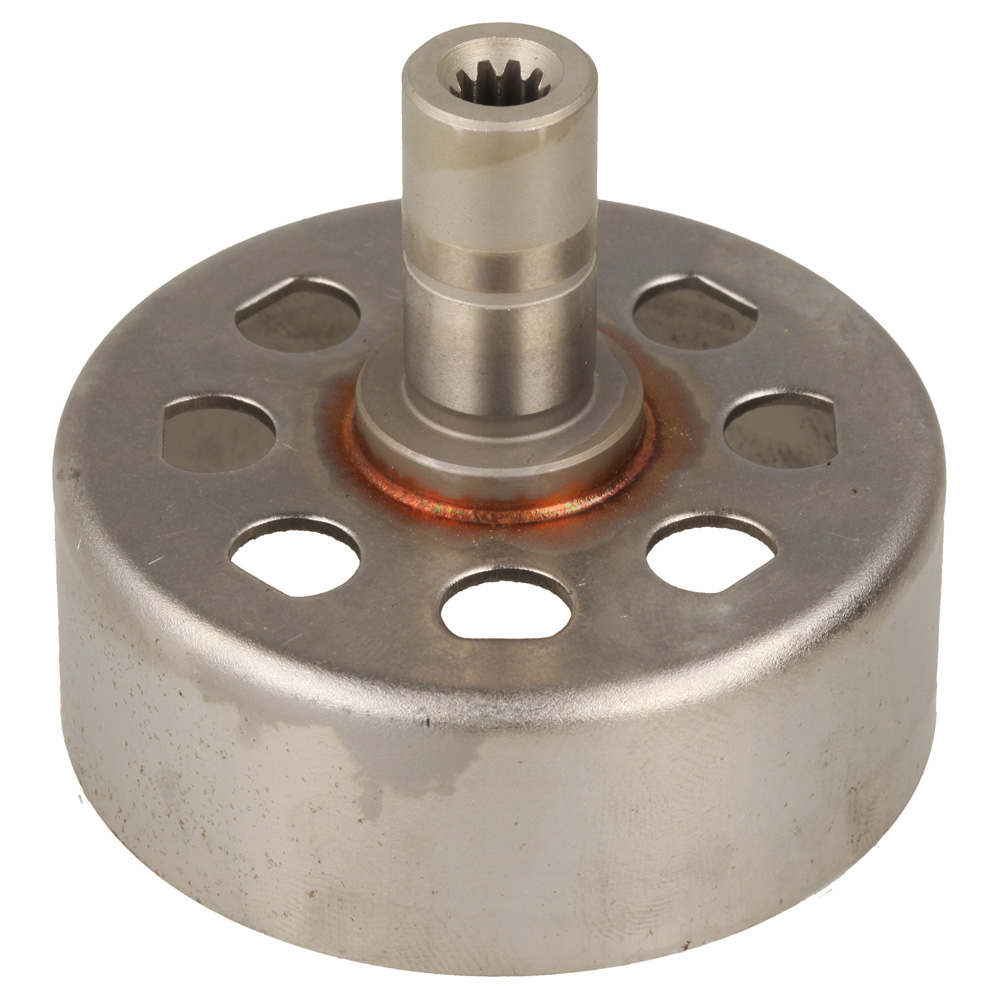

100	TK6600549 Available to backorder	Clutch Shaft	£10.02 £8.35
101	TK6689627 Available to backorder	Step Bolt	£1.72 £1.43
102	TK6684648 Available to backorder	Bent Washer 8	£1.73 £1.44
103	TK6601431 In stock	Clutch	£12.58 £10.48
104	TK6696547 Available to backorder	Clutch Washer (B)	£1.34 £1.12
105	TK6685337 Available to backorder	Flywheel Nut	£1.34 £1.12
106	TK323212 Available to backorder	Bolt Washer M8 (Black)	£2.88 £2.40
107	TK6698388 Available to backorder	Hex. Socket Hd. Bolt (W.Washers) M4X18	£1.86 £1.55

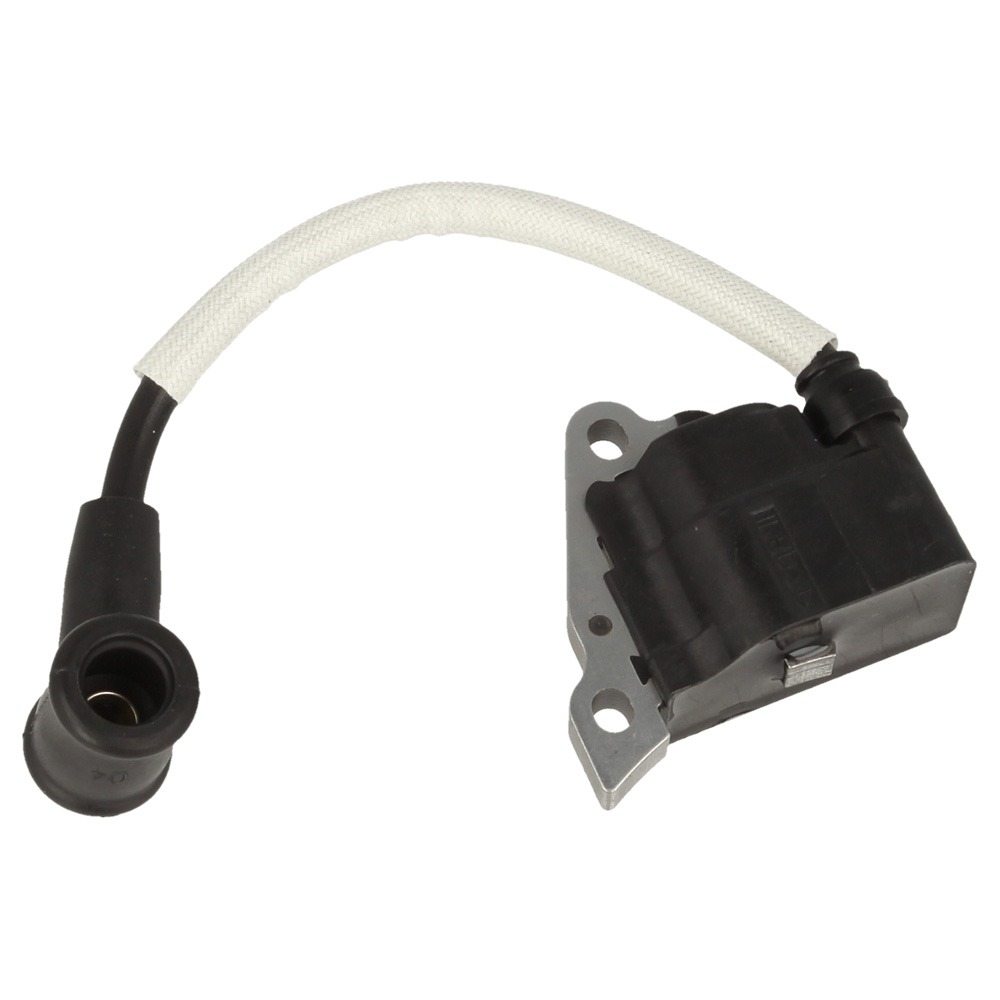

108	TK6601380 Available to backorder	Ignition Coil	£55.30 £46.08
116	TK6699289 Available to backorder	Magneto Rotor	£45.38 £37.82
118	TK6600519 Available to backorder	Tank	£7.52 £6.27
119	TK6696574 Available to backorder	Bolt (W.Flange) L17.8	£1.73 £1.44
120	TK6600351 Available to backorder	Pump Filter	£4.88 £4.07
121	TK6696949 Available to backorder	Clip	£1.34 £1.12
122	TK6698512 In stock	Bolt (W.Flange) L23.8	Was £1.61 £1.34 Special Price £0.96 £0.80
123	TK6699558 Available to backorder	Spacer	£1.00 £0.83
124	TK6685267 In stock	Fuel Pipe (Pink)	£1.72 £1.43
125	TK6600358 In stock	Fuel Grommet	£2.54 £2.12
127	TK6685049 In stock	Fuel Tank Cap Ass'Y 1 Includ.1	£10.86 £9.05
