Tanaka TCG-24EA2 - Cylinder Assembly

Name: Tanaka TCG-24EA2 - Cylinder Assembly
SKU: tcgtcg24ea2cylinder-group
Price: 0.8 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Tanaka TCG-24EA2 Brushcutter - Cylinder Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	TK6600319 Available to backorder	Muffler Cover	£12.14 £10.12
4	TK6698384 Available to backorder	Hex. Socket Hd. Bolt M6X65	£1.34 £1.12
5	TK949432 Available to backorder	Bolt Washer M6 (10 Pcs.)	£2.60 £2.17
7	TK6600320 Available to backorder	Heat Protection Panel	£2.58 £2.15
8	TK6684586 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X18	£1.73 £1.44
10	TK6699128 Available to backorder	Cylinder Cover	£7.38 £6.15
12	TK6698844 Available to backorder	Seal Lock Hex. Socket Bolt (W.Washers)M5	£1.34 £1.12
13	6521 In stock	Spark Plug Ass'Y Bmr7A	£3.47 £2.89

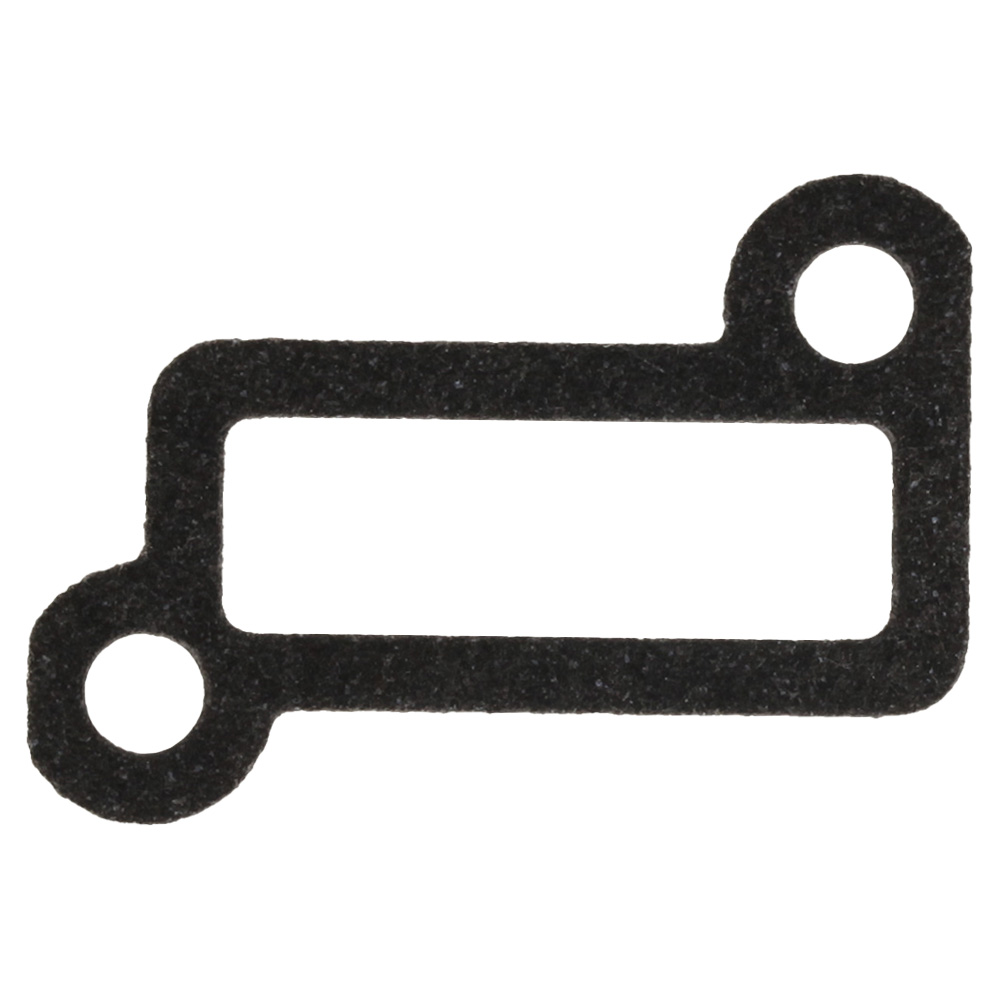

14	TK6698468 Available to backorder	Cover Packing	£1.61 £1.34
16	TK6698385 Available to backorder	Hex. Socket Hd. Bolt M4X12	£1.40 £1.17
20	TK6699437 Available to backorder	Intake Packing	£0.96 £0.80
21	TK6698387 Available to backorder	Carburetor Insulator	£3.98 £3.32
22	TK6698405 In stock	Carburetor Packing	£2.62 £2.18
23	TK6691337 Available to backorder	Swivel Cap	£1.72 £1.43
24	TK6698474 Available to backorder	Carburetor Ass'Y Wyc-28 1 Includ.25-	£69.08 £57.57
25	TK6699287 Available to backorder	Cable Adjust Stay	£8.86 £7.38
27	TK6684696 Available to backorder	Stop Ring	£1.72 £1.43
28	TK6684692 Available to backorder	Pump Gasket	£25.94 £21.62
29	TK6684693 Available to backorder	Pump Diaphragm	£6.92 £5.77
30	TK6691242 Available to backorder	Pump Plate	£3.04 £2.53
31	TK6685222 Available to backorder	Diaphragm Cover-Metering	£6.92 £5.77
32	TK6691312 Available to backorder	Set Screw	£1.70 £1.42
34	TK6684695 Available to backorder	O-Ring	£3.46 £2.88
35	TK6697842 Available to backorder	Main Jet #32.5	£9.70 £8.08
36	TK6691234 Available to backorder	Circuit Plate	£4.55 £3.79
37	TK6696828 Available to backorder	Pump Body Comp.	£21.96 £18.30
38	TK6685220 Available to backorder	Diaphragm Packing-Metering	£3.46 £2.88
41	TK6601444 Available to backorder	(41B) Fuel Pipe	£1.13 £0.94
42	TK6696549 Available to backorder	Air Cleaner Housing	£11.68 £9.73
43	TK6685139 In stock	Priming Pump Comp.	£7.14 £5.95
44	TK6690347 In stock	Cleaner Element	£6.92 £5.77

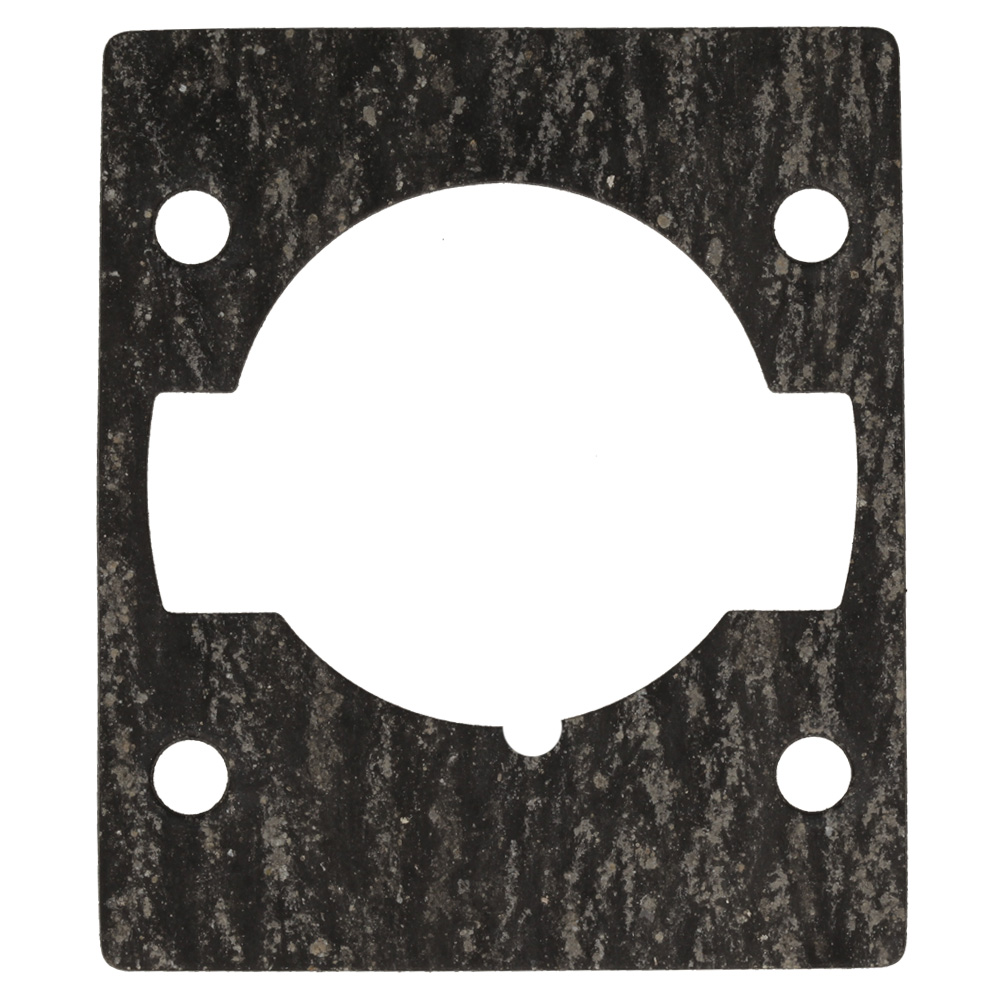

49	TK6684587 Available to backorder	Cylinder Gasket	£1.72 £1.43
50	TK6698404 Available to backorder	Piston Ring	£5.34 £4.45
51	TK6698368 Available to backorder	Piston	£9.26 £7.72
52	TK6684590 Available to backorder	Cir Clip	£1.72 £1.43
53	TK6684591 Available to backorder	Piston Pin	£3.20 £2.67
54	TK6684606 Available to backorder	Crank Case Ass'Y 1 Includ.55-57.	£42.08 £35.07
55	TK6684609 Available to backorder	Crank Case Gasket	£1.70 £1.42
56	TK6684607 In stock	Oil Seal Tb 12227	£3.62 £3.02
57	TK6684608 Available to backorder	Ball Bearing 6001 C3	£6.92 £5.77
58	TK6696946 Available to backorder	Shim T0.2	£1.34 £1.12
58	TK6696945 Available to backorder	Shim T0.3	£1.34 £1.12
59	TK6696533 Available to backorder	Crank Shaft Comp.	£45.02 £37.52
61	TK6684681 Available to backorder	Starter Pulley Ass'Y 1 Includ.62-	£9.68 £8.07
62	TK6685101 Available to backorder	D4E Retaining Ring	£1.73 £1.44
63	TK6684684 Available to backorder	Starter Pawl Spring	£3.46 £2.88
64	TK6684685 Available to backorder	Starter Pawl	£3.47 £2.89
65	TK6601570 In stock	Recoil Starter Body Ass'Y 1 Includ.66-	£33.98 £28.32
66	TK6684679 Available to backorder	Set Screw	£1.73 £1.44
67	TK6699996 Available to backorder	Cam Plate	£5.08 £4.23
68	TK6684677 Available to backorder	Damper Spring	£6.24 £5.20
69	TK6699997 Available to backorder	Starter Rope Reel	£8.99 £7.49
70	TK6684675 Available to backorder	Recoil Spring	£8.44 £7.03
71	TK6684673 Available to backorder	Recoil Starter Body Comp.	£16.94 £14.12
72	TK6684674 Available to backorder	Starter Rope 3.5X860	£3.47 £2.89
73	TK6693224 Available to backorder	Starter Handle	£1.73 £1.44
