Tanaka TCG-22EAP2 - Flywheel Assembly

Name: Tanaka TCG-22EAP2 - Flywheel Assembly
SKU: tcgtcg22eap2flywheel-group
Price: 0.67 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

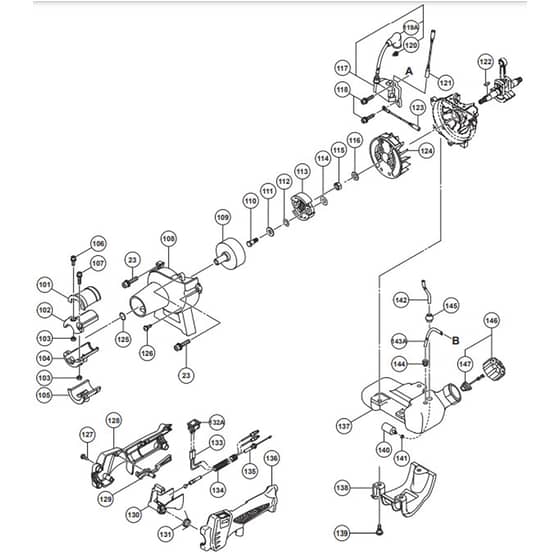

Tanaka TCG-22EAP2 Brushcutter - Flywheel Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
101	TK6696963 Available to backorder	Anti Vibe Rubber (A)	£2.63 £2.19
102	TK6698643 Available to backorder	Pipe Holder (A) 1 For Europe (	£2.63 £2.19
104	TK6698644 Available to backorder	Pipe Holder (B) 1 For Europe (	£2.63 £2.19
105	TK6696964 Available to backorder	Anti Vibe Rubber (B)	£2.63 £2.19
106	TK6699176 Available to backorder	Hex. Socket Hd. Bolt (W.Sp.Washer) M5X12	£0.80 £0.67
107	TK6695492 In stock	Hex. Hole Bolt 5X22.S	£1.72 £1.43
108	TK6699159 Available to backorder	Fan Case (Vermilion)	£16.06 £13.38
109	TK6696541 Available to backorder	Clutch Shaft	£15.80 £13.17
109	TK6698790 Available to backorder	Clutch Shaft 1 For Europe (Lb).Usa (Sl	£12.98 £10.82
110	TK6689627 Available to backorder	Step Bolt	£1.72 £1.43
111	TK6684648 Available to backorder	Bent Washer 8	£1.73 £1.44
112	TK6696546 Available to backorder	Clutch Plate (A)	£1.34 £1.12
113	TK6601431 In stock	Clutch	£12.58 £10.48
114	TK6696547 Available to backorder	Clutch Washer (B)	£1.34 £1.12
115	TK6685337 Available to backorder	Flywheel Nut	£1.34 £1.12
116	TK323212 Available to backorder	Bolt Washer M8 (Black)	£2.88 £2.40
117	TK6699464 Available to backorder	Ignition Coil Ass'Y 1 Includ.119A.1	£94.68 £78.90
118	TK6698388 Available to backorder	Hex. Socket Hd. Bolt (W.Washers) M4X18	£1.86 £1.55
119	TK6601421 Available to backorder	(119A) Plug Cap	£0.80 £0.67
122	TK6684899 Available to backorder	Woodruff Key 3X13X4.5	£1.70 £1.42
124	TK6699289 Available to backorder	Magneto Rotor	£45.38 £37.82
125	TK939542 Available to backorder	Retaining Ring For D12 Shaft (10 Pcs.) 1 Except For Europe (Lb).Usa (Sl	£1.24 £1.03
126	TK6698878 Available to backorder	Tapping Screw D4.5X16	£1.34 £1.12
127	TK305812 Available to backorder	Tapping Screw (W.Flange) D4X16 (Black) 4 Except For Europe (	£2.10 £1.75
128	TK6696487 Available to backorder	Handle (B) 1 Except For Usa.Europe (	£5.34 £4.45
129	TK6696490 Available to backorder	Lock Lever 1 For Euro	£1.34 £1.12
130	TK6696488 Available to backorder	Lever	£1.34 £1.12
131	TK6696489 Available to backorder	Spring (A)	£1.34 £1.12
135	TK6696560 Available to backorder	Throttle Wire Comp. 1 Except For Europe (	£5.34 £4.45
136	TK6696486 Available to backorder	Handle (A) 1 Except For Usa.Europe (	£5.34 £4.45
137	TK6696569 Available to backorder	Tank	£5.76 £4.80
139	TK6696557 Available to backorder	Flange Bolt 3 For Usa.Europe (L	£1.34 £1.12
139	TK6696574 Available to backorder	Bolt (W.Flange) L17.8	£1.73 £1.44
140	TK6600351 Available to backorder	Pump Filter	£4.88 £4.07
141	TK6696949 Available to backorder	Clip	£1.34 £1.12
142	TK6684618 Available to backorder	Fuel Pipe	£3.31 £2.76

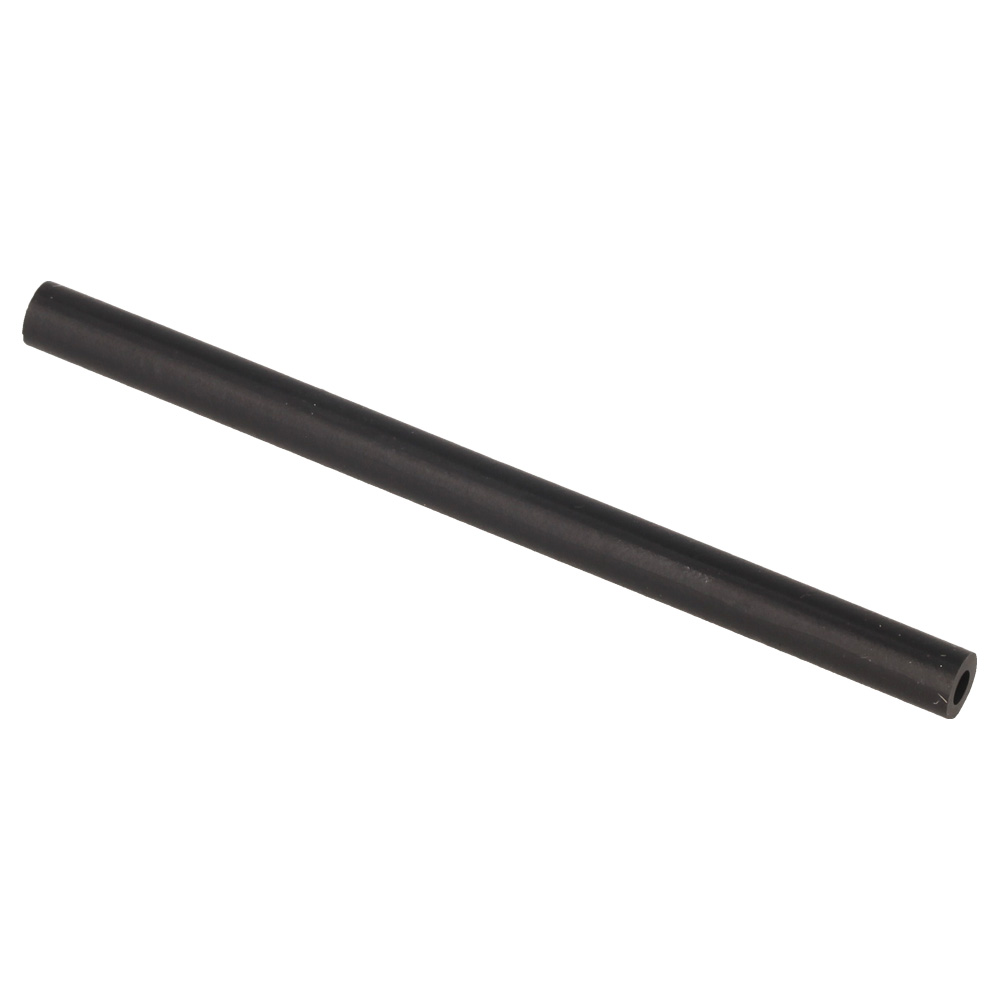

143	TK6699014 Available to backorder	(143A) Fuel Pipe L70	£6.06 £5.05
146	TK6685049 In stock	Fuel Tank Cap Ass'Y 1 Includ.1	£10.86 £9.05
