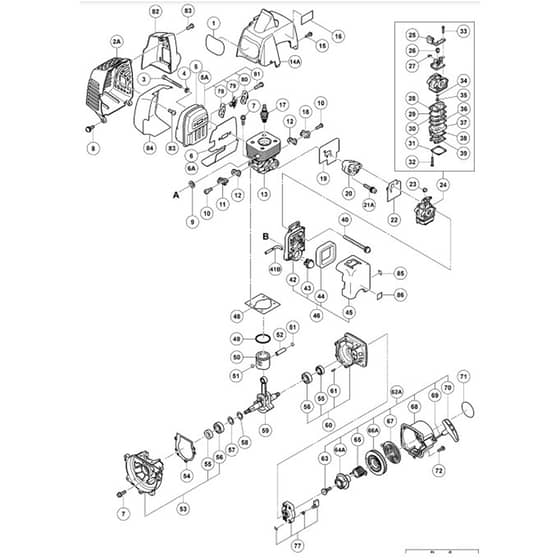

Tanaka TCG 22EAD Multi Tool - Cylinder Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	TK6600338 Available to backorder	(2A) Muffler Protector	£6.35 £5.29
2	TK6600423 Available to backorder	( 2A) Muffler Protector 1 Since 11.2013 For Euro	£20.74 £17.28
3	TK6684638 Available to backorder	Hex. Hole Bolt M6X55	£1.73 £1.44
4	TK949432 Available to backorder	Bolt Washer M6 (10 Pcs.)	£2.60 £2.17
5	TK6696554 Available to backorder	Muffler 1 For Europe (Slp).Usa (Sl	£37.06 £30.88
6	TK6600320 Available to backorder	(6A) Heat Protection Panel 1 Since 11.2013 For Euro	£2.58 £2.15
6	TK6696553 Available to backorder	Heat Protection Panel	£2.63 £2.19
7	TK6684586 Available to backorder	Hex.Hole Bolt M5X18.S	£1.73 £1.44
9	TK6684600 Available to backorder	Washer T1.6 2 For Europe (Slp).Usa (Sl	£1.70 £1.42
10	TK6697445 Available to backorder	Hex.Socket Hd.Bolt (W.Sp.Washer)M4X12	£0.44 £0.37
11	TK6696536 Available to backorder	Intake Cover (B)	£1.34 £1.12
12	TK6696534 Available to backorder	Cover Packing	£1.34 £1.12
13	TK6696527 Available to backorder	Cylinder	£34.36 £28.63
14	TK6600424 Available to backorder	(14A) Cylinder Cover	£6.80 £5.67
17	6521 In stock	( 17A) Spark Plug Ass'Y Bmr7A	£3.47 £2.89
18	TK6696535 Available to backorder	Intake Cover (A)	£1.34 £1.12
19	TK6696548 Available to backorder	Intake Packing	£1.34 £1.12
20	TK6696943 Available to backorder	Carburetor Insulator	£7.13 £5.94
21	TK6698844 Available to backorder	(21A) Seal Lock Hex.Socket Bolt(W.Washers)M5	£1.34 £1.12
22	TK6684616 Available to backorder	Carburetor Packing	£1.70 £1.42
23	TK6691337 Available to backorder	Swivel Cap	£1.72 £1.43
24	TK6696550 Available to backorder	Carburetor Ass'Y Wyc-22 1 Includ.25-	£57.16 £47.63
27	TK6684696 Available to backorder	Stop Ring	£1.72 £1.43
28	TK6684692 Available to backorder	Pump Gasket	£25.94 £21.62
29	TK6684693 Available to backorder	Pump Diaphragm	£6.92 £5.77
30	TK6691242 Available to backorder	Pump Plate	£3.04 £2.53
31	TK6685222 Available to backorder	Diaphragm Cover-Metering	£6.92 £5.77
32	TK6691312 Available to backorder	Set Screw	£1.70 £1.42
34	TK6684695 Available to backorder	O-Ring	£3.46 £2.88
36	TK6691234 Available to backorder	Circuit Plate	£4.55 £3.79
38	TK6685220 Available to backorder	Diaphragm Packing-Metering	£3.46 £2.88
41	TK6698720 Available to backorder	(41A) Fuel Pipe	£5.20 £4.33
42	TK6696549 Available to backorder	Air Cleaner Housing	£11.68 £9.73
43	TK6685139 In stock	Priming Pump Comp.	£7.14 £5.95
44	TK6690347 In stock	Cleaner Element	£6.92 £5.77
48	TK6696530 Available to backorder	Cylinder Packing	£1.34 £1.12
49	TK6686118 Available to backorder	Piston Ring	£6.92 £5.77
50	TK6696531 Available to backorder	Piston	£8.81 £7.34
51	TK6684590 Available to backorder	Cir Clip	£1.72 £1.43
53	TK6696538 Available to backorder	Crank Case (B) Comp 1 Includ.55.	£16.90 £14.08
54	TK6696539 Available to backorder	Crank Case Packing	£1.34 £1.12
55	TK6684607 In stock	Oil Seal Tb 12227	£3.62 £3.02
56	TK6684608 Available to backorder	Ball Bearing 6001 C3	£6.92 £5.77
57	TK6696946 Available to backorder	Shim T0.2	£1.34 £1.12
58	TK6696945 Available to backorder	Shim T0.3	£1.34 £1.12
59	TK6696533 Available to backorder	Crank Shaft Comp.	£45.02 £37.52
60	TK6696537 Available to backorder	Crank Case (A) Ass'Y 1 Includ.55.56.	£17.48 £14.57
62	TK6601570 In stock	(62A) Recoil Starter Body Ass'Y 1 Includ.63-	£33.98 £28.32
63	TK6684679 Available to backorder	Set Screw	£1.73 £1.44
64	TK6699996 Available to backorder	(64A) Cam Plate	£5.08 £4.23
65	TK6684677 Available to backorder	Damper Spring	£6.24 £5.20
66	TK6699997 Available to backorder	(66A) Starter Rope Reel	£8.99 £7.49
67	TK6684675 Available to backorder	Recoil Spring	£8.44 £7.03
68	TK6684673 Available to backorder	Recoil Starter Body Comp.	£16.94 £14.12
69	TK6684674 Available to backorder	Starter Rope 3.5X860	£3.47 £2.89
70	TK6693224 Available to backorder	Starter Handle	£1.73 £1.44
77	TK6684681 Available to backorder	Starter Pulley Ass'Y	£9.68 £8.07
78	TK6684650 Available to backorder	Muffler Special Gasket 1 For Aus (Sl.S).Nzl (Sl.	£1.73 £1.44
80	TK6685047 Available to backorder	Exhaust Pipe 1 For Aus (Sl.S).Nzl (Sl.	£9.32 £7.77
81	TK6685068 Available to backorder	Machine Screw (W.Sp. Washer) M4X12 2 For Aus (Sl.S).Nzl (Sl.	£1.73 £1.44
82	TK6600339 Available to backorder	Muffler Rear Cover 1 Since 11.20	£8.94 £7.45
84	TK6600340 Available to backorder	Muffer Heat Cover 1 Since 11.20	£8.64 £7.20
