Tanaka TBC290D Brushcutter - Engine 2 Parts Diagram

	Part No.	Details

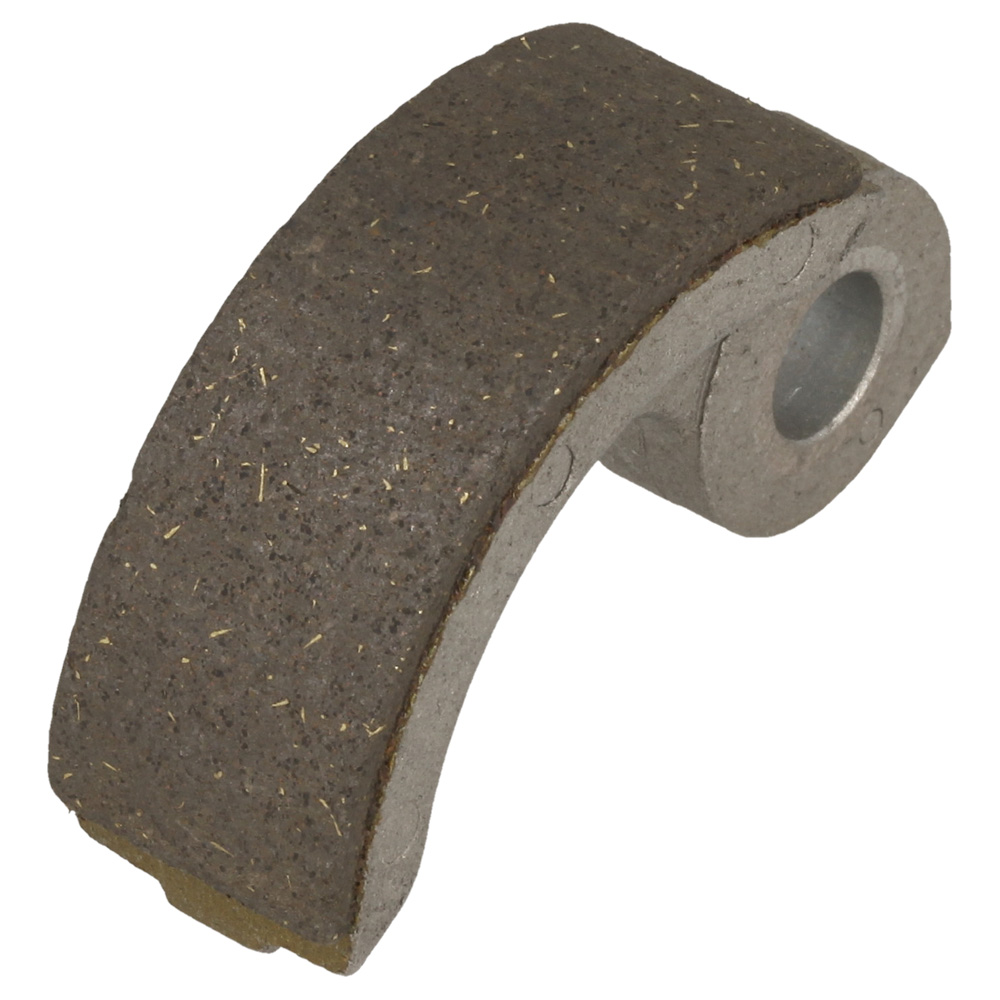

35	TK6688616 Available to backorder	Clutch Shoe Comp. T-16	£12.19 £10.16

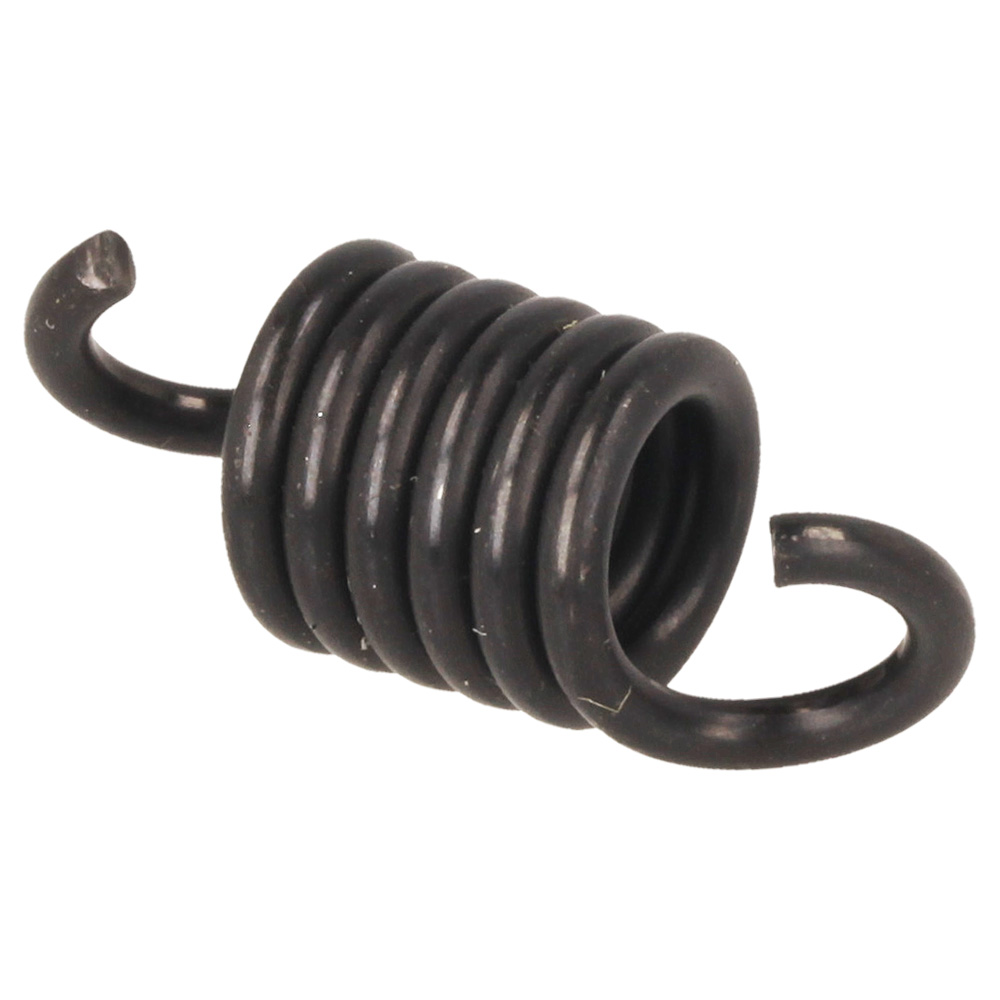

36	TK6689430 Available to backorder	Clutch Spring	£3.58 £2.98
37	TK6684642 Available to backorder	Clutch Washer B	£1.78 £1.48
38	TK6689529 Available to backorder	Clutch Plate A.0.3	£1.45 £1.21

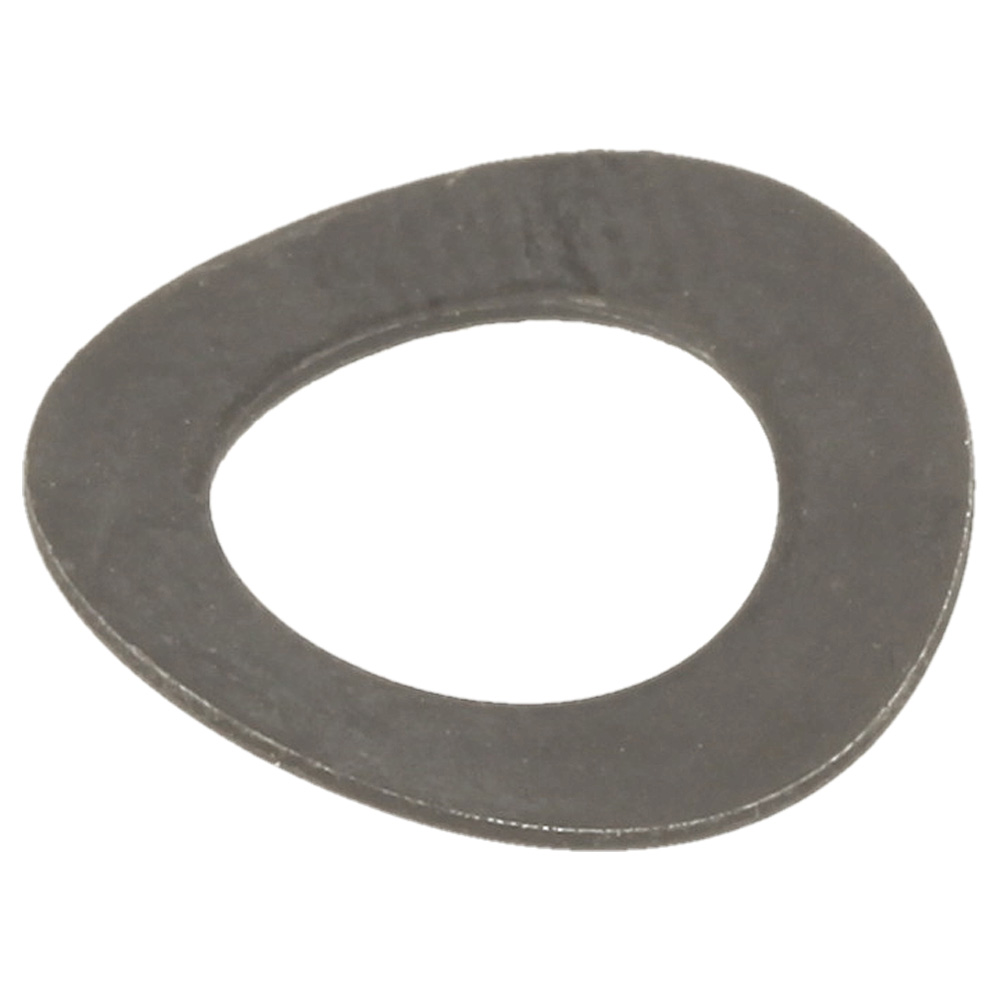

39	TK6684648 Available to backorder	Bent Washer 8	£1.58 £1.32

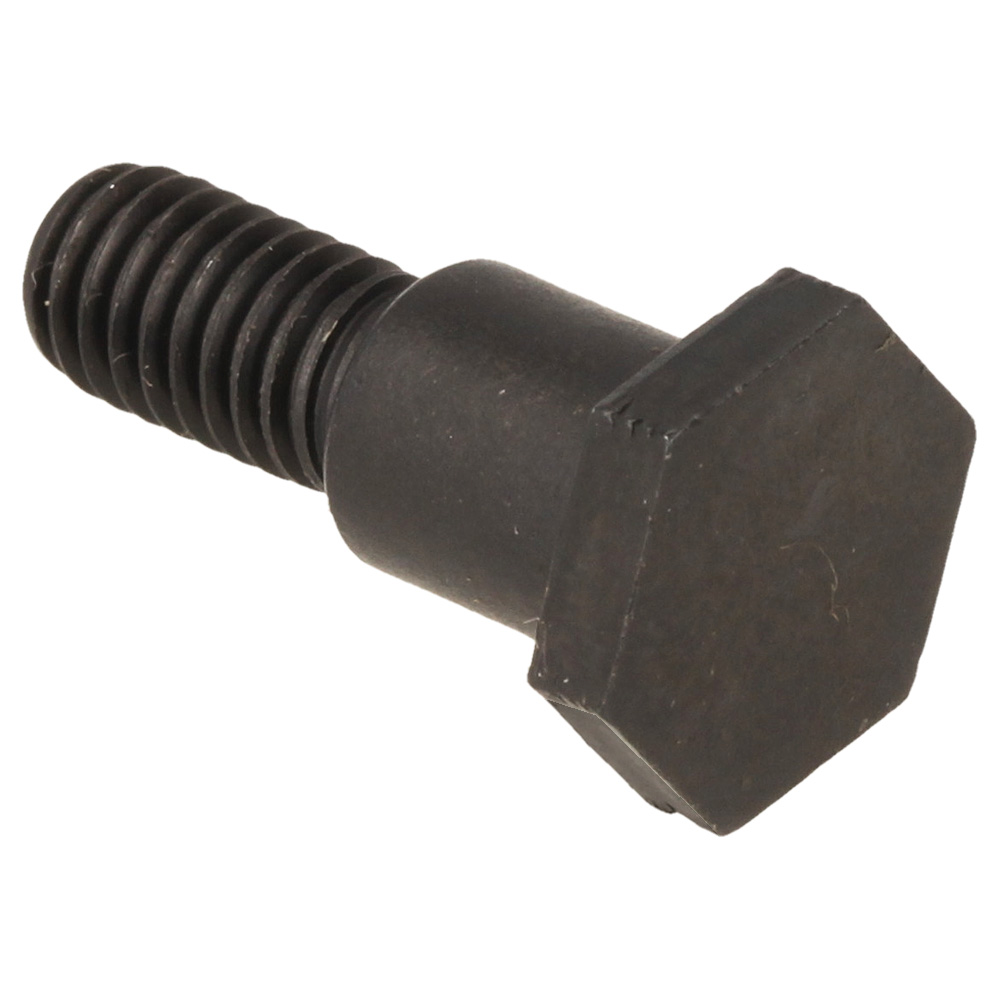

40	TK6689627 Available to backorder	Step Bolt	£1.86 £1.55
42	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.35 £0.29
43	TK6687019 Available to backorder	Fan Case Comp.	£17.86 £14.88
45	TK6684637 Available to backorder	Tapping Screw 4.5X12	£1.78 £1.48
46	TK6695512 Available to backorder	Hex. Hole Bolt 5X15Ws	£1.78 £1.48
47	TK6691838 Available to backorder	Anti-Vibe Rubber	£5.38 £4.48

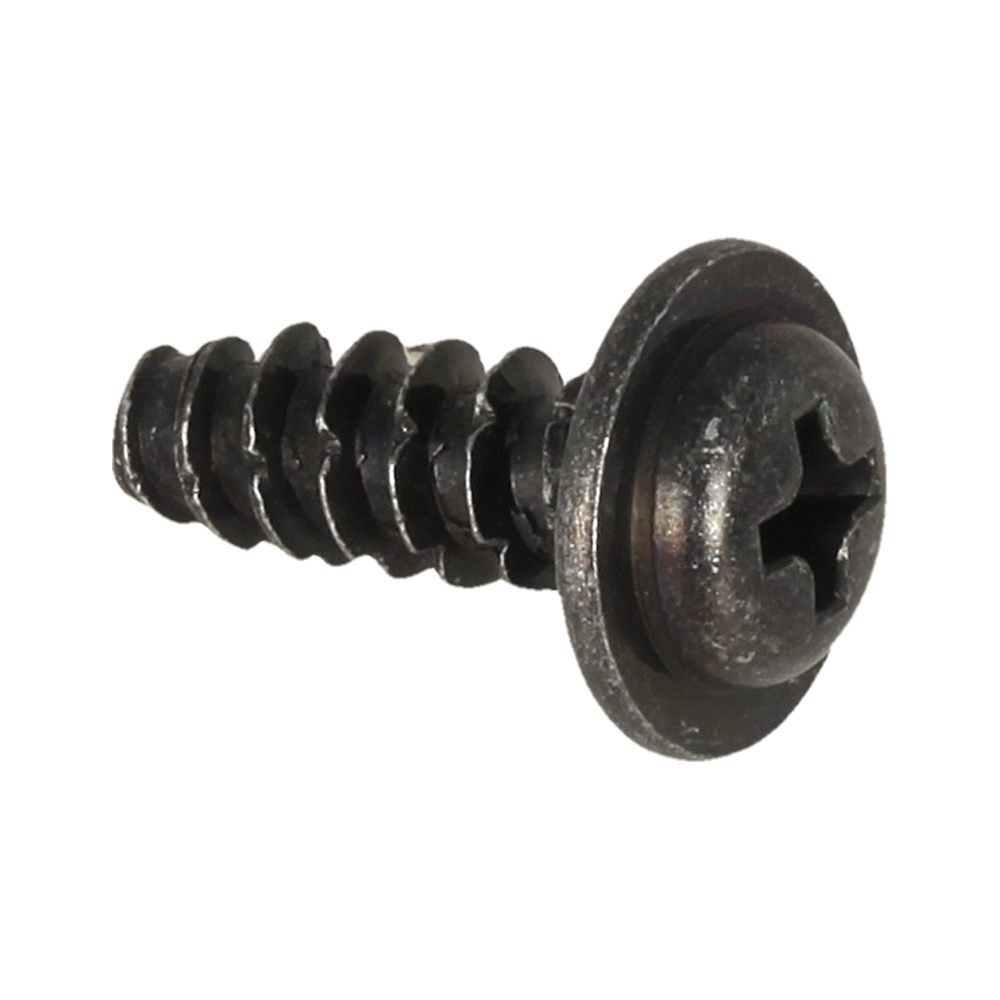

48	TK6685275 Available to backorder	Tapping Screw 5X14	£1.58 £1.32
52	TK6689656 Available to backorder	Pipe Holder	£14.28 £11.90
53	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.78 £1.48

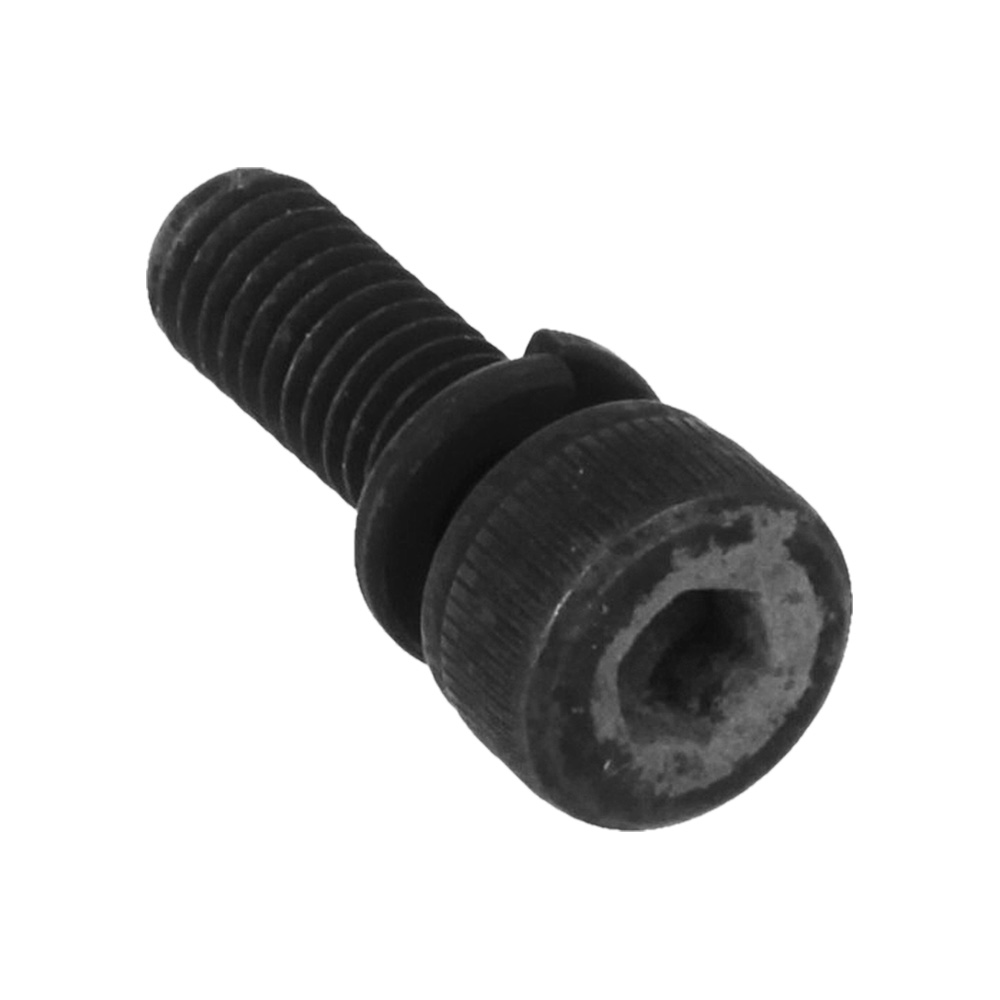

54	TK6697445 Available to backorder	Hex. Hole Bolt 4X12S	£0.46 £0.38
58	TK6688597 Available to backorder	Clutch Shaft Comp.	£21.46 £17.88
62	TK6695304 Available to backorder	Stop Ring R-32 Inner	£1.78 £1.48
63	TK6686667 Available to backorder	Bearing Case	£12.52 £10.43
64	TK6695553 Available to backorder	Ball Bearing #6201Zz	£10.03 £8.36
65	TK6692803 Available to backorder	Muffler Protector	£12.52 £10.43

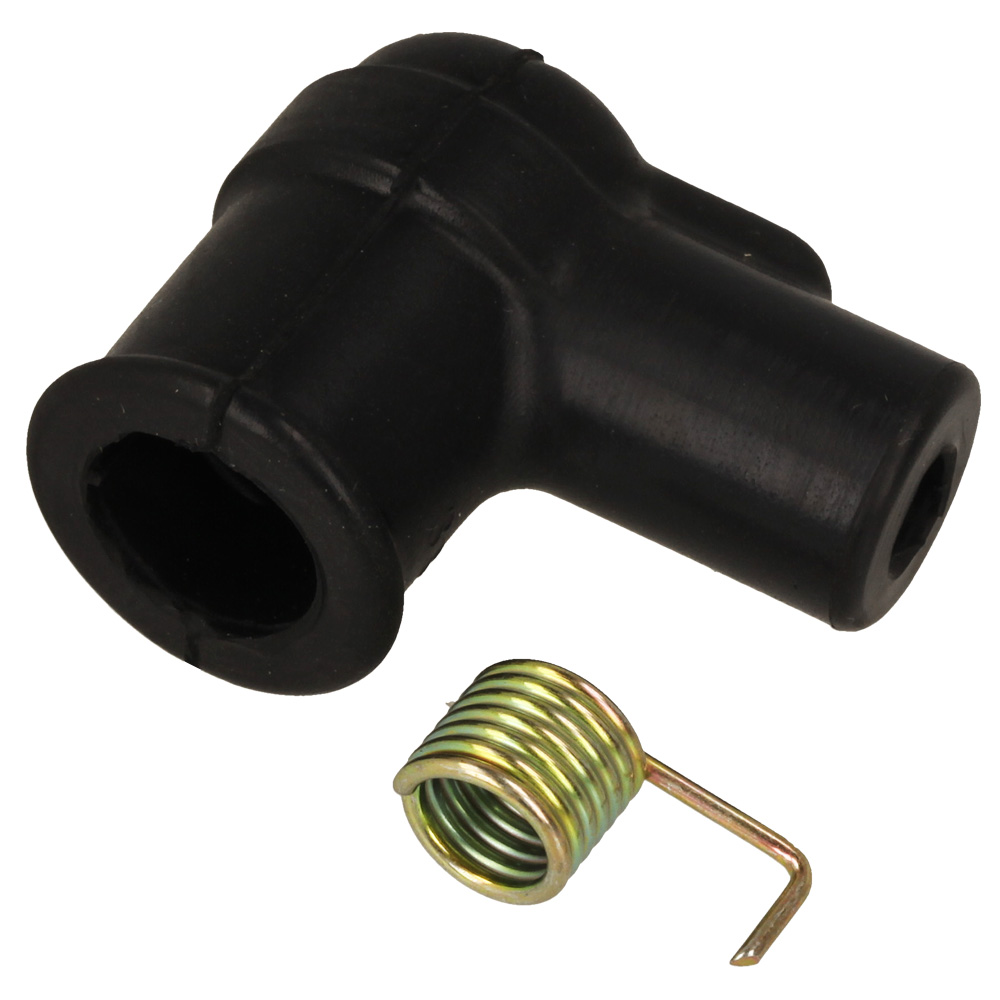

66	TK6687468 Available to backorder	Spark Plug Cap Ass'Y	£3.58 £2.98
71	TK6688057 Available to backorder	Primary Cord Grommet	£1.78 £1.48
72	TK6692732 Available to backorder	Muffler Gasket	£1.78 £1.48
73	TK6687260 Available to backorder	Heat Shield	£5.38 £4.48
74	TK6692489 Available to backorder	Muffler Set	£39.26 £32.72
75	TK6684638 Available to backorder	Hex Hole Bolt 6X55	£1.78 £1.48
76	TK6697455 In stock	Washer 6	£0.35 £0.29
77	TK6692887 Available to backorder	Muffler Special Gasket	£1.78 £1.48
78	TK6692669 Available to backorder	Tail Pipe Set	£7.16 £5.97
