Tanaka TBC 600 - Jan 2016 H049821 - Engine 2

Description

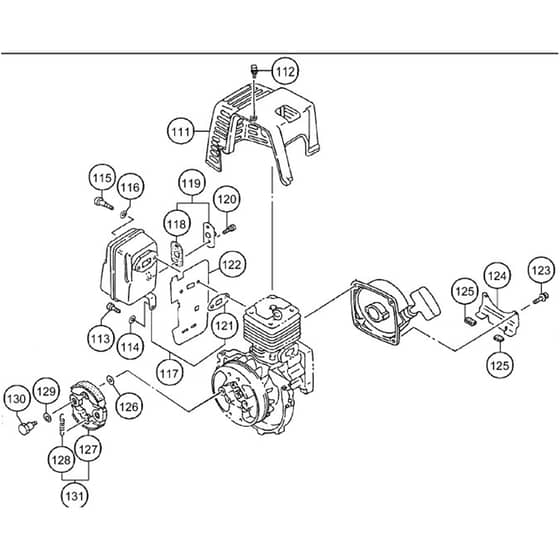

Tanaka TBC 600 Brushcutter - Engine 2 Parts Diagram

	Part No.	Details
111	TK6692777 Available to backorder	Muffler Protector	£18.23 £15.19
112	TK6695383 Available to backorder	Screw 5X12.Ps	£1.73 £1.44
113	TK6684667 Available to backorder	Hex.Hole Bolt M5X12.S	£1.73 £1.44
114	TK6684918 Available to backorder	Washer M5 (Black)	£1.73 £1.44
115	TK6695088 Available to backorder	Hex. Hole Button Screw 6X65	£3.47 £2.89
116	TK6697455 Available to backorder	Bolt Washer 6	£0.36 £0.30
118	TK6692883 Available to backorder	Muffler Special Gasket	£1.73 £1.44
119	TK6692648 Available to backorder	Tail Pipe Set. Spare 1 For Europe.Nzl.Swe.C	£5.20 £4.33
120	TK6695325 Available to backorder	Screw 4X8.S 2 For Europe.Nzl.Swe.C	£1.73 £1.44
120	TK6685109 Available to backorder	Machine Screw (W.Sp. Washer) M4X8 2 For Aus.U	£1.73 £1.44
121	TK6692741 Available to backorder	Muffler Gasket	£1.72 £1.43
122	TK6687242 Available to backorder	Heat Shield	£3.46 £2.88
123	TK6695389 Available to backorder	Screw 5X18.Ps	£1.73 £1.44
124	TK6692205 Available to backorder	Tank Bracket	£7.26 £6.05
126	TK6689645 Available to backorder	Clutch Washer B	£1.70 £1.42
127	TK6688615 Available to backorder	Clutch Arm	£18.68 £15.57
128	TK6689429 Available to backorder	Clutch Spring	£4.55 £3.79
129	TK6695203 Available to backorder	Wave Washer 10	£1.73 £1.44
130	TK6689628 Available to backorder	Clutch Step Bolt	£3.04 £2.53
