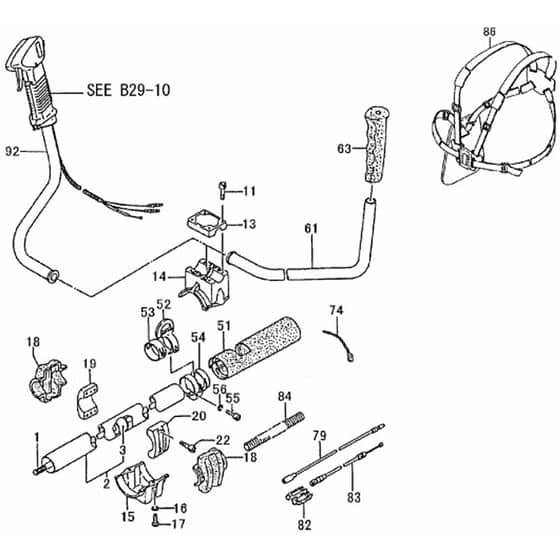

Tanaka TBC-500N Brushcutter - Operation Pipe Parts Diagram

	Part No.	Details
1	TK6689464 Available to backorder	Drive Shaft	£24.60 £20.50
2	TK6689357 Available to backorder	Drive Shaft Pipe Comp.	£103.44 £86.20
3	TK6689515 Available to backorder	Bushing Ass'Y	£5.38 £4.48
11	TK6684903 Available to backorder	Hex. Hole Bolt 5X16S	£1.78 £1.48
13	TK6691131 Available to backorder	Handle Bracket A	£15.74 £13.12
14	TK507.37110.200 Available to backorder	Handle Bracket B	£24.66 £20.55
15	TK6691168 Available to backorder	Handle Bracket C	£21.17 £17.64
16	TK6684826 Available to backorder	S.Washer 6	£1.78 £1.48
17	TK6685064 Available to backorder	Hex Hole Button Screw 6X20	£1.78 £1.48
18	TK319.37100.200 Available to backorder	Cushion Rubber	£9.71 £8.09
19	TK6690382 Available to backorder	Shaft Lock B	£11.83 £9.86
20	TK6690379 Available to backorder	Shaft Lock A	£11.83 £9.86
22	TK6684586 Available to backorder	Hex. Hole Bolt 5X18.S	£1.78 £1.48
51	TK6689289 Available to backorder	Cushion Pad Comp.	£20.66 £17.22
52	TK335.37100.200 Available to backorder	Lifting Metal	£17.28 £14.40
53	TK6689250 Available to backorder	Lifting Metal Collar	£1.78 £1.48
55	TK6695045 Available to backorder	Hex. Hole Bolt 5X15	£1.78 £1.48
56	TK6684834 Available to backorder	S.Washer 5	£1.78 £1.48
61	TK6691087 Available to backorder	Left Handle	£25.63 £21.36
63	TK6684708 In stock	Handle Grip	£5.57 £4.64
74	TK6684715 Available to backorder	Clamp B.	£1.78 £1.48
82	TK6694028 Available to backorder	Connector Case	£1.78 £1.48
83	TK6693878 Available to backorder	Throttle Wire Comp.	£7.16 £5.97
86	TK6692863 Available to backorder	Shoulder Belt Assy Taiwan Make	£90.00 £75.00
92	TK6696091 Available to backorder	Right Handle Sk	£31.03 £25.86
