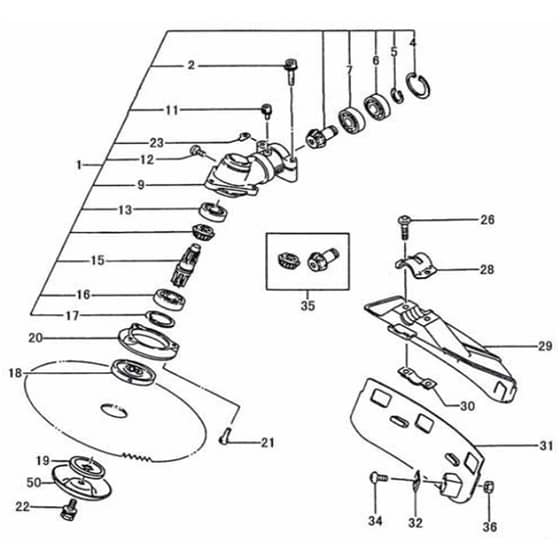

Tanaka TBC-500N Brushcutter - Gear Case Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6688706 Available to backorder	Gear Case Assy 30 Dia.	£141.08 £117.57
2	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.72 £1.43
4	TK6684741 Available to backorder	Stop Ring C-28 Inner	£1.73 £1.44
5	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.41 £0.34
6	TK6695532 Available to backorder	Ball Bearing #6001Z 28Mm.Od	£10.28 £8.57
7	TK6684608 Available to backorder	Ball Bearing #6001 28Mm.Od	£6.92 £5.77
9	TK6688703 Available to backorder	Gearcase Silver	£48.32 £40.27
11	TK6684667 Available to backorder	Hex. Hole Bolt 5X12S	£1.73 £1.44
12	TK6695437 Available to backorder	Plus Head Bolt 8X10	£1.73 £1.44
13	TK6695524 Available to backorder	Ball Bearing #6000 26Mm.Od	£8.68 £7.23
15	TK6688931 Available to backorder	Gear Shaft	£28.28 £23.57
16	TK6695564 Available to backorder	Ball Bearing #6203D 40Mm.Od	£12.98 £10.82
17	TK6695298 Available to backorder	Stop Ring C-40 Inner	£1.73 £1.44
18	TK6689022 Available to backorder	Cutter Holder	£26.21 £21.84
19	TK6689044 Available to backorder	Cutter Holder Cap	£5.20 £4.33
20	TK6688982 Available to backorder	Protection Cover A Comp.	£6.92 £5.77
21	TK6695418 Available to backorder	Screw 5X16.Ws	£1.73 £1.44
22	TK6689062 Available to backorder	Fixing Bolt L.H.	£3.48 £2.90
23	TK6689157 Available to backorder	Gear Case Washer	£1.70 £1.42
26	TK6697451 Available to backorder	Hex. Hole Button Screw 6X25S	£1.73 £1.44
29	TK6690229 Available to backorder	Safety Cover Ce	£27.17 £22.64
30	TK6684748 Available to backorder	Safety Cover Holder	£3.90 £3.25
31	TK6690372 In stock	Cover Guard	£14.78 £12.32
32	TK6693386 Available to backorder	Knife	£6.92 £5.77
35	TK6688866 Available to backorder	Gear-Pinion Set Spare	£47.12 £39.27
36	TK6684965 Available to backorder	Hex. Nut 5	£1.39 £1.16
50	TK6688990 Available to backorder	Protection Cover B	£3.04 £2.53
